ASCO2-2.048MHZ-LK-T3: Descriptionstandard clock oscillators 2.048mhz 30ppm 1.8volt -40c + 85c; CategoryPassive components; File Size122KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASCO2-2.048MHZ-LK-T3 Overview

standard clock oscillators 2.048mhz 30ppm 1.8volt -40c + 85c

ASCO2-2.048MHZ-LK-T3 Parametric

Parameter Name	Attribute value
Manufacture	ABRACON
Product Category	Standard Clock Oscillators
RoHS	Yes
Produc	Crystal Oscillators
Frequency	2.048 MHz
Frequency Stability	30 PPM
Supply Voltage	1.8 V
Load Capacitance	15 pF
Termination Style	SMD/SMT
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Output Form	CMOS
Dimensions	1.2 mm W x 1.6 mm L
Packaging	Reel
Mounting Style	SMD/SMT
Factory Pack Quantity	3000
Supply Voltage - Max	1.98 V
Supply Voltage - Mi	1.62 V

Preview

Download Datasheet

View All

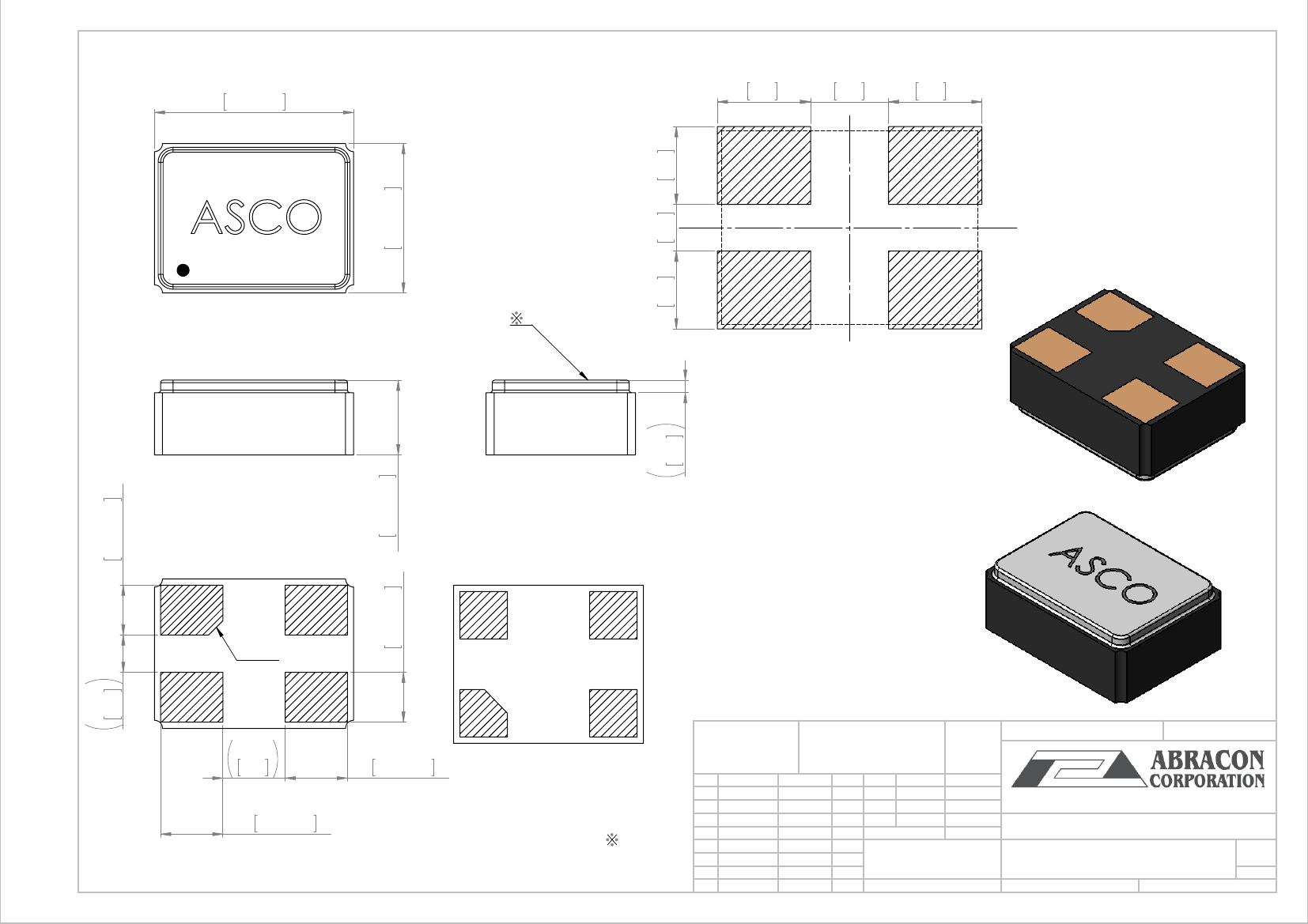

0.063 ±0.004

1.6 ±0.1

0.02

0.6

0.02

0.5

0.02

0.6

#4

#3

0.02

0.5

0.05 ±0.004

1.2 ±0.1

#1

#2

1

0.02

0.5

0.01

0.3

Land dimensions

0.016 ±0.004

0.4 ±0.1

0.024 ±0.004

0.6 ±0.1

Terminal assignment

#4

#3

#1

#2

0.016 ±0.004

0.4 ±0.1

C0.15

0.01

0.3

0.004

0.1

#1: Stand-by

#2: GND

#3: Output

#4: VDD

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCH(MM)

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

NAME

DRAWN

CHK'D

APPV'D

MFG

Q.A

MATERIAL:

DWG NO.

SAAZVAT

XXXXXX

#4

FINISH:

0.02

0.5

#3

0.020 ±0.004

0.5 ±0.1

#1

#2

DEBUR AND

BREAK SHARP

EDGES

DO NOT SCALE DRAWING

REVISION

-

SIGNATURE

DATE

0.020 ±0.004

0.5 ±0.1

#2 IS CONNECTED TO

THE METAL LID ( 1).

TOP PACKAGE MARKING IS

FOR ILLUSTRATION PURPOSES ONLY

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

ULTRA MINIATURE SMD CRYSTAL CLOCK

OSCILLATOR

ASCO

SHEET 1 OF 1

A3

WEIGHT:

SCALE:40:1
