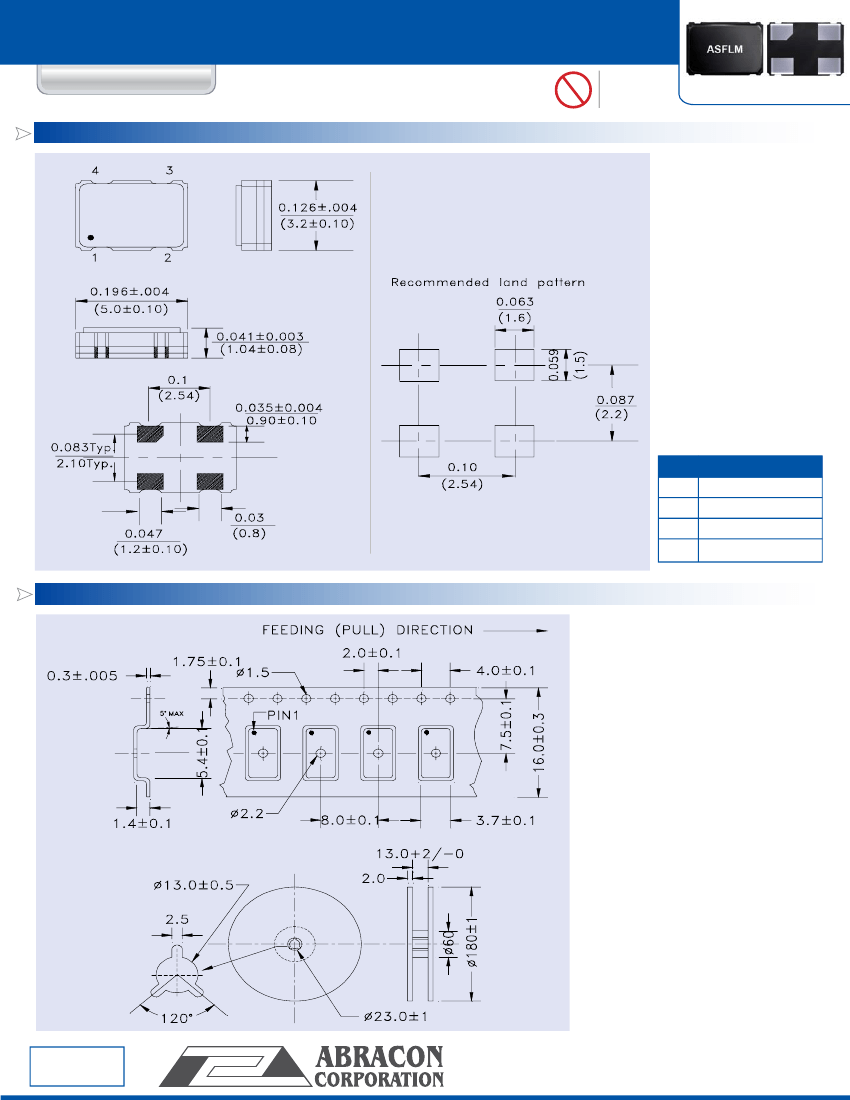

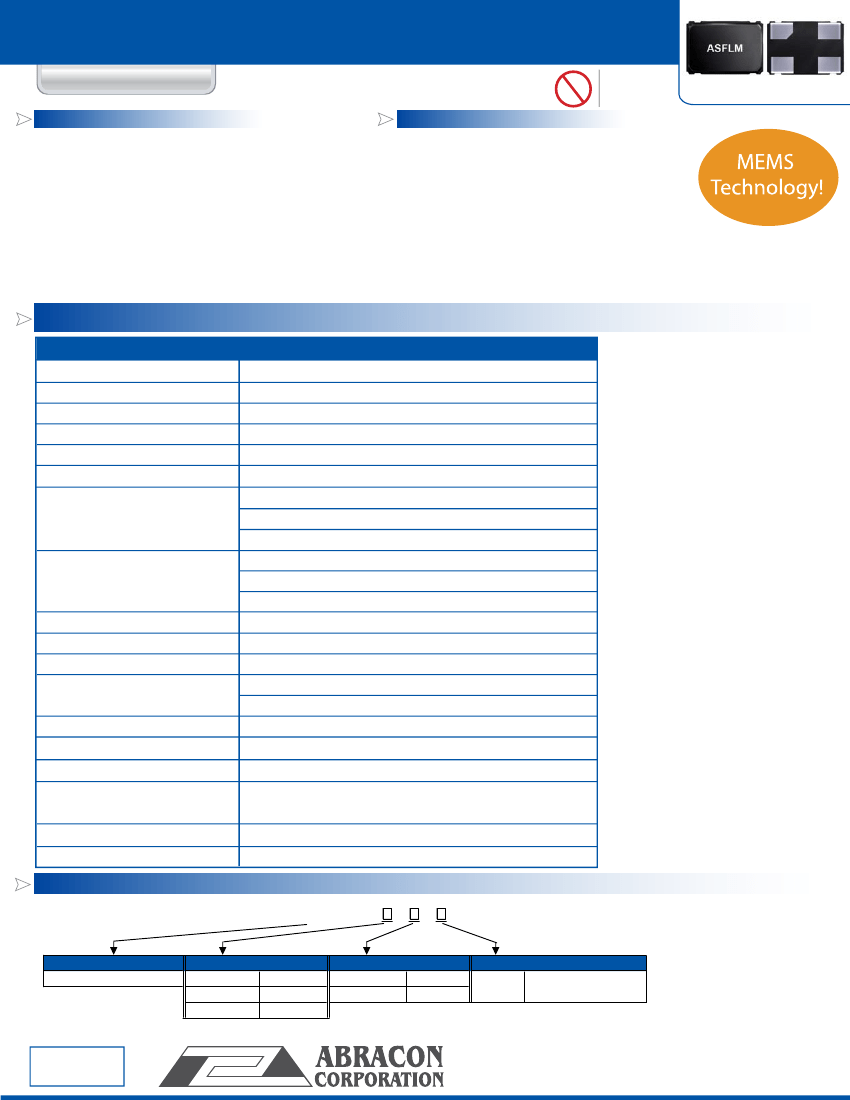

ULTRA MINIATURE PURE SILICON CLOCK OSCILLATOR

ASFLM

FEATURES:

• Ultra Miniature Pure Silicon

Clock Oscillator

• MEMS Technology by Discera

• Low Power Consumption <10mA

• Exceptional Stability Over Temp. at 0 - 70°C

• Extended Temperature Options Also Available

• Available in 30kG Shock Resistance Configuration

• Low Cost-Compact QFN Plastic Packaging

• Compact Package design

APPLICATIONS:

• CCD Clock for VTR Camera

• Equipment Connected to PCs

• Low Profile Equipment

• Lower Cost Crystal Oscillator Replacement

• Computers and Peripherals

• Portable Electronics (MP3 Players, Games)

• Consumer Electronics such as TV’s, DVR’s, etc.

• Vibrant, Shock-Prone & Humid Environments for Industrial Equipment

• Demanding Military & Automotive Electronics

RoHS

Compliant

5.0 x 3.2 x 1.04mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Frequency range:

Operating temperature:

Storage temperature:

Overall Frequency Stablilty:

Supply Voltage (Vdd):

Supply Current:

(No Load)

Supply Current:

(Full Load)

Symmetry:

Rise and Fall Times (Tr/Tf):

Output Load:

Output Voltage:

Start-up-time:

Enable time:

Disable time:

Tri-State Function

(Stand-by):

Stand-by Current

Aging at +25°C per year:

(Left blank if standard)

ASFLM Series

1.000 MHz - 125 MHz

0°C to + 70°C (see options)

-55°C to +155°C

± 100 ppm max. (see options)

3.0 V ± 0.3 V

6.0mA max (1 - 40MHz,Vdd=3.0 ± 0.3V)

7.0mA max (40 - 80MHz, Vdd=3.0 ± 0.3V)

10.0mA max (80 - 125MHz, Vdd=3.0 ± 0.3V)

9.0mA max (1 - 40MHz,Vdd=3.0 ± 0.3V)

10.0mA max (40 - 80MHz, Vdd=3.0 ± 0.3V)

16.0mA max (80 - 125MHz, Vdd=3.0 ± 0.3V)

45/55% max.@ 1/2Vdd

5ns max. (+25°C, 15pF out put load, 10/90% Vdd.)

15pF max., 10kohms max.

VOH = 0.9*Vdd min.

VOL = 0.1*Vdd max.

10mS max

5mS max

100ns max.

"1" or open: Oscillation

"0": No oscillation/Hi Z

1uA max.

± 5ppm max.

OPTIONS AND PART IDENTIFICATION:

ASFLM - Frequency -

Operating Temp.

0°C to +70°C

Blank

-20°C to +70°C

-40°C to +85°C

Blank : Standard

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

* Please contact Abracon for Temperature Option Availability.

Please contact Abracon for order assistance for high shock

applications.

Frequency

XX.XXXX MHz

Freq. Stability

Blank

± 100 ppm

± 50 ppm

Blank : Standard

Packaging

Tape and Reel

(1000pcs/reel)

Revised: 08.23.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
