Model 834M1 Accelerometer
Triaxial Piezoelectric
Accelerometer
<22µA Current Consumption
Wide Bandwidth to 6kHz
Circuit Board Mountable
The Model 834M1
is a low cost, board
mountable triaxial accelerometer designed for
high amplitude embedded shock applications.
The accelerometer features a maximum
current consumption of 22 micro-amps and
incorporates full power and signal
conditioning. The model 834M1 is available in
±2000g to ±6000g ranges and provides a flat
frequency response up to greater than 6kHz.
The standard model 834 offers the same
envelope with a lower maximum current
consumption of 4 micro-amps.

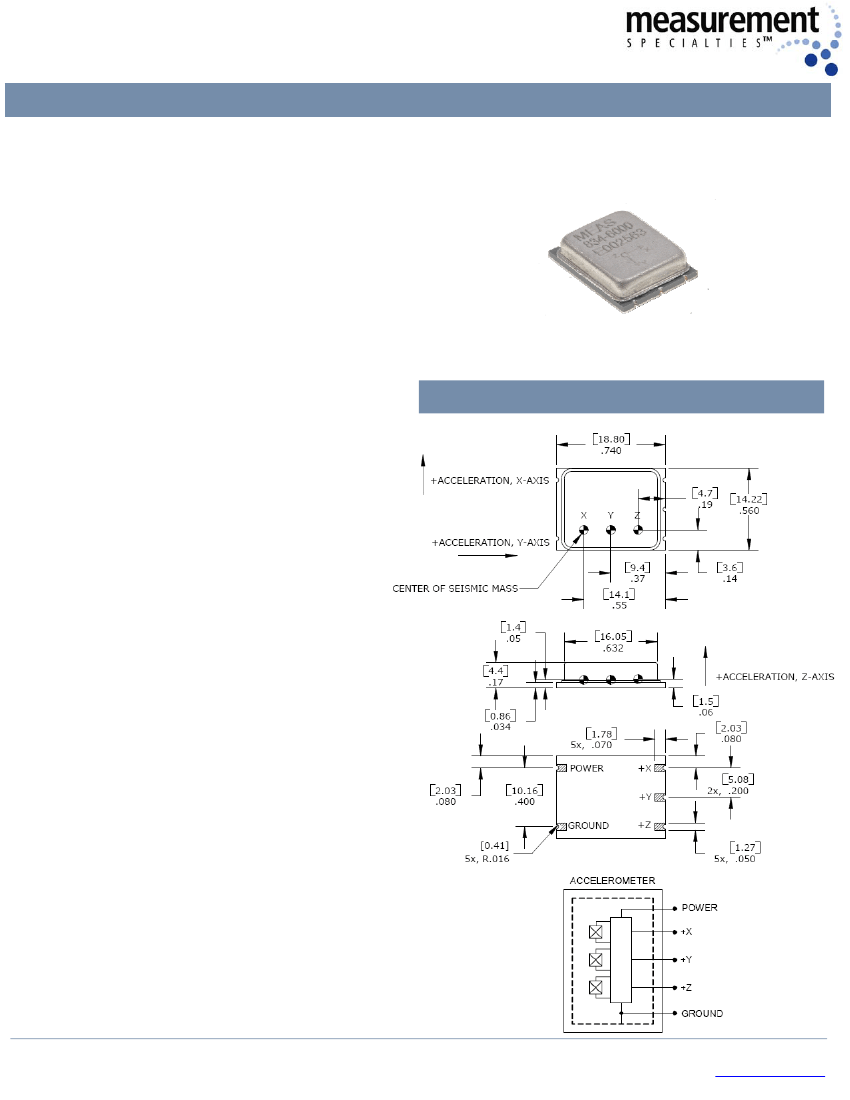

dimensions
FEATURES
•
•
•
•
•
•
±2000g to ±6000g Dynamic Range
Low Cost Triaxial
Hermetically Sealed
Piezo-ceramic Crystals
-40° to +125°C Operating Range
Single Axis Configurations Available
APPLICATIONS
•
•
•
•
•
Asset Monitoring
Impact Testing
System Wake-Up Switch
Embedded Applications
Instrumentation
Model 834M1 Rev D
32 Journey Ste. 150 Aliso Viejo, CA 92656
www.meas-spec.com
949-716-5377
07/13/2011
t&m@meas-spec.com
Model 834M1 Accelerometer
performance specifications
All values are typical at +24°C, 100Hz and 3.3Vdc excitation unless otherwise stated. Measurement Specialties reserves the right to update and
change these specifications without notice. Standard product parameters are described in PSC-1001 for Embedded AC Accelerometers.
Parameters
DYNAMIC
Range (g)
Sensitivity (mV/g)
Frequency Response (Hz)
Natural Frequency (Hz)
Non-Linearity (%FSO)
Transverse Sensitivity (%)
Shock Limit (g)
ELECTRICAL
Bias Voltage (Vdc)
1
Total Supply Current (µA)
Excitation Voltage (Vdc)
Output Impedance (Ω)
Insulation Resistance (MΩ)
Broadband Noise (µV)
Spectral Noise (mg/√Hz)
Spectral Noise (mg/√Hz)
Spectral Noise (mg/√Hz)
Shielding
Ground Isolation
ENVIRONMENTAL
Temperature Response (%)
Operating Temperature (°C)
Storage Temperature (°C)
PHYSICAL
Sensing Element
Case Material
Weight (grams)
1
2
Notes
±2000
0.62
2-6000
>30000
±2
<8
10000
±6000
0.20
2-6000
>30000
±2
<8
10000
±30%
±2dB
Exc Voltage / 2
Exc Voltage / 2
<22
<22
3.3 to 5.5
3.3 to 5.5
<100
<100
>100
>100
60
30
4.5
5.0
0.65
1.0
0.25
0.50
100%
Isolated from Mounting Surface
-20/+30 from -40°C to +125°C
-40 to +125
-40 to +125
Ceramic (shear mode)
Ceramic Base, Nickel Silver Cover
2.6
@100Vdc
2Hz-10kHz
@ 10Hz
@ 100Hz
@ 1000Hz
A lower current consumption of 4 micro-amps is available on model 834.
The model 834M1 is not to be reflow soldered at high temperature, manual soldering is recommended. See application note.
3
The model 834M1 can be operated with 2.8V excitation but the full-scale range will be limited.
Calibration supplied:
CS-SENS-0100
NIST Traceable Amplitude Calibration at 100Hz
Wiring color code:
See schematic
The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Furthermore, this
information does not convey to the purchaser of such devices any license under the patent rights to the manufacturer. Measurement Specialties, Inc. reserves the right
to make changes without further notice to any product herein. Measurement Specialties, Inc. makes no warranty, representation or guarantee regarding the suitability of
its product for any particular purpose, nor does Measurement Specialties, Inc. assume any liability arising out of the application or use of any product or circuit and
specifically disclaims any and all liability, including without limitation consequential or incidental damages. Typical parameters can and do vary in different applications.
All operating parameters must be validated for each customer application by customer’s technical experts. Measurement Specialties, Inc. does not convey any license
under its patent rights nor the rights of others.
ordering info
PART NUMBERING
Model Number+Range
834M1-GGGG
l
l_____ Range (2000 is 2000g)
Example: 834M1-2000
Model 834M1, 2000g
