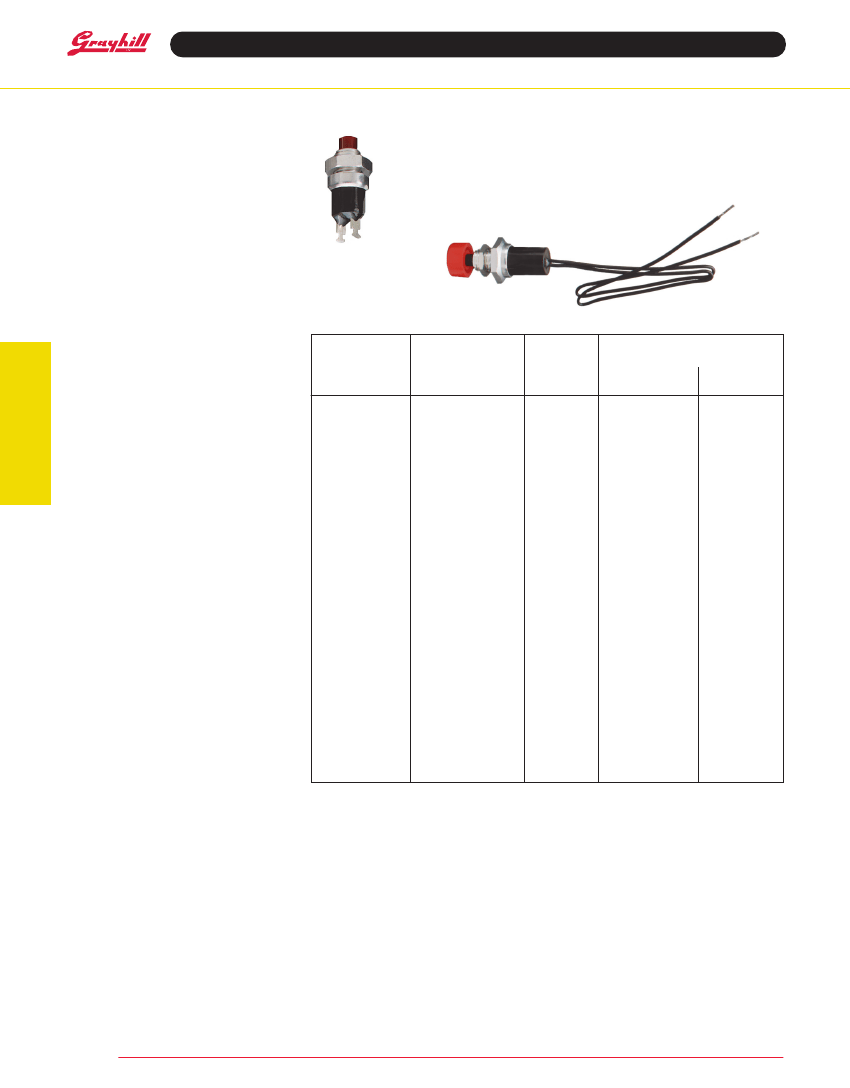

Pushbutton Options and Accessories
SEALED TERMINAL AND
WIRE LEAD OPTIONS
OPTION -E AND -EW
FEATURES
•
1
/
4
,
1
/
2
, and 1 Amp
• Limit, Overtravel, or Panel Seal
• Butt or Wiping Contact
• Normally Open or Normally Closed
• Momentary or Push/Pull
• Series 23, 30, 39 and 46
Option -EW,
Potted Base & 6"
Wire Leads
Option -E
Epoxy-Sealed
Terminals
SPECIFICATIONS
Rating Criteria
Make and Break Current Rating:
See page
for standard part number
Contact Resistance:
25 milliohms maximum
on a new switch. Less than 4 milliohms per inch
of wire for wire lead option styles.
Insulation Resistance:
1,000 megohms
minimum between mutually insulated parts
Voltage Breakdown:
1,000 Vac minimum
between mutually insulated parts
Pushbutton Switches
Standard
Part Number
Red Button
23-1
30-1
30-15
30-17 RED
30-16 RED
30-251 RED
30-252 RED
30-32 RED
30-6
30-601 RED
39-1*
––––
39-12*
39-101
39-351 RED
39-352 RED*
39-601 RED
39-701***
39-702***
46-101 RED
46-102 RED
46-110 RED
46-111 RED
46-150 RED
46-151 RED
46-200 RED
46-201 RED
46-270 RED
46-271 RED
Standard
Part Number
Black Button
23-4
30-3
30-37
30-17 BLK
30-16 BLK
30-251 BLK
30-252 BLK
30-32 BLK
30-2
30-601 BLK
39-3*
39-2
39-24*
––––
39-351 BLK
39-352 BLK*
39-601 BLK
––––
––––
46-101 BLK
46-102 BLK
46-110 BLK
46-111 BLK
46-150 BLK
46-151 BLK
46-200 BLK
46-201 BLK
46-270 BLK
46-271 BLK
Choices
of
Suffix
-E
-E, -EW
-E, -EW
-E, -EW
-E, -EW
-E, -EW
-E, -EW
-E, -EW
-E, -EW
-E, -EW
-EW**
-E,- EW
-EW**
-EW**
-EW**
-E, -EW
-EW*
-EW**
-E, -EW
-E, -EW
-E, -EW
-E, -EW
-E, -EW
-E, -EW
-E, -EW
-E
-E
-E
-E
Length Behind Panel
In inches (and millimeters)
-EW Style
Standard Switch
Body
& Terminals
0.665
0.592
0.679
0.958
0.958
0.632
0.645
0.867
0.605
0.592
0.315
0.490
0.455
0.650
0.350
0.529
0.315
0.800
0.510
0.890
0.890
0.890
0.890
0.957
0.957
0.921
0.921
0.957
0.957
(16,89)
(15,04)
(17,25)
(24,33)
(24,33)
(16,05)
(16,38)
(22,02)
(15,37)
(15,04)
(8,00)
(12,45)
(11,56)
(16,51)
(8,89)
(13,44)
(8,00)
(20,32)
(12,95)
(22,61)
(22,61)
(22,61)
(22,61)
(24,31)
(24,31)
(23,39)
(23,39)
(24,31)
(24,31)
––––
0.645
0.728
1.007
1.007
0.685
0.700
0.896
0.640
0.645
0.440
0.575
0.575
0.775
0.450
0.630
0.440
0.925
0.750
0.957
0.957
0.957
0.957
1.024
1.024
––––
––––
––––
––––
(16,38)
(18,49)
(25,58)
(25,58)
(17,40)
(17,78)
(22,76)
(16,26)
(16,38)
(11,18)
(14,61)
(14,61)
(19,69)
(11,43)
(16,00)
(11,18)
(23,50)
(19,05)
(24,31)
(24,31)
(24,31)
(24,31)
(26,01)
(26,01)
Materials and Finishes
Potting Sleeve (Series 39):
Thermoset Plastic
Wire Leads:
#26AWG, (.99mm diameter)
insulated Teflon, Copper stranded wire, per
MlL-W-16878,Type E. Ends are stripped
0.250" (6.35) and solder dipped. For other
specifications, see Page References.
*Epoxy potting sleeve enlarges the diameter of the -EW style to 0.300 (7,62).
**Sealed terminal (-E) option is not necessary; terminals have sealed construction.
***Natural Color Button
†Adjustable from 1.214 (30,84) to 1.334 (33,88) dependent on button height, see switch pages.
Pushbutton
60
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Pushbutton Options and Accessories
ORDERING INFORMATION
Use the Selector Charts at the beginning of the
section to select a series. Use the pages listed
there or referenced here to select a switch.
To order epoxy sealed terminals, add the suffix -
E to the selected part number as allowed in the
chart.
Example:
30-1-E.
To order the epoxy-potted version with 6-inch
wire leads, use the suffix -EW as allowed in the
chart.
Example:
39-1-EW
Available From Your Local Grayhill
Distributors.
For prices and discounts, contact
a local Sales Office, an authorized local
Distributor or Grayhill.
Standard Part Number
Without Options
Choice of Button
Color
(see switch pages)
Standard
Part Number
Choice of
Button Color
(see switch pages)
Choices
of
Options
-E,
-E,
-E,
-E,
-E,
-E,
-E,
-E,
-E,
-E,
-E,
-E
-E
-E,
-E,
-E
-E
-E,
-E,
-E
-E
-EW
-EW
-EW
-EW
-EW
-EW
-EW
-EW
-EW
-EW
-EW
Length Behind Panel
In inches (and millimeters)
Standard Switch
& Terminals
1.119 (28,42)
1.132 (28,75)
1.204 (30,58)
Adjustable†
1.100 (27,94)
1.257 (31,93)
0.930 (23,62)
1.130 (28,70)
1.119 (28,42)
1.361 (34,57)
1.451 (36,86)
1.381 (35,08)
1.381 (35,08)
1.179 (29,95)
1.465 (37,21)
1.188 (30,18)
1.317 (33,45)
1.417 (35,99)
1.417 (35,99)
1.448 (36,78)
1.448 (36,78)
-EW Style
Body
1.172 (29,77)
1.167 (29,64)
1.253 (31,83)
Adjustable†
1.153 (29,29)
1.310 (33,27)
0.983 (24,97)
1.183 (30,05)
1.172 (29,77)
1.428 (36,27)
1.518 (38,56)
––––
––––
1.246 (31,65)
1.532 (38,91)
––––
––––
1.484 (37,69)
1.484 (37,69)
––––
––––
––––
––––
––––
––––
30-01-01-500-XX
30-01-04-500-XX
30-05-01-502-XX
30-05-04-502-XX
––––
46-01-05-500-XX
46-01-07-500-XX
46-01-08-500-XX
46-01-09-500-XX
46-05-05-502-XX
46-05-07-502-XX
46-05-08-502-XX
46-05-09-502-XX
––––
––––
––––
––––
30-001-A-XX
30-002-A-XX
30-015-A-XX
30-017-A-XX
30-1-1-50-XX
30-1-4-50-XX
30-5-1-52-XX
30-5-4-52-XX
30-601-A-XX
46-1-5-50-XX
46-1-7-50-XX
46-1-8-50-XX
46-1-9-50-XX
46-5-5-52-XX
46-5-7-52-XX
46-5-8-52-XX
46-5-9-52-XX
46-102-A-XX
46-111-A-XX
46-200-A-XX
46-201-A-XX
-EW
-EW
Pushbutton Switches
-EW
-EW
CIRCUITRY: Series 46
C1
(RED)
N.C.
(YELLOW)
N.O.
(GREEN)
SPDT
WIPING CONTACTS
*Epoxy potting sleeve enlarges the diameter of the -EW style to 0.300 (7,62).
**Sealed terminal (-E) option is not necessary; terminals have sealed construction.
***Natural Color Button
†Adjustable from 1.214 (30,84) to 1.334 (33,88) dependent on button height, see switch pages.
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Pushbutton
61
Pushbutton Options and Accessories

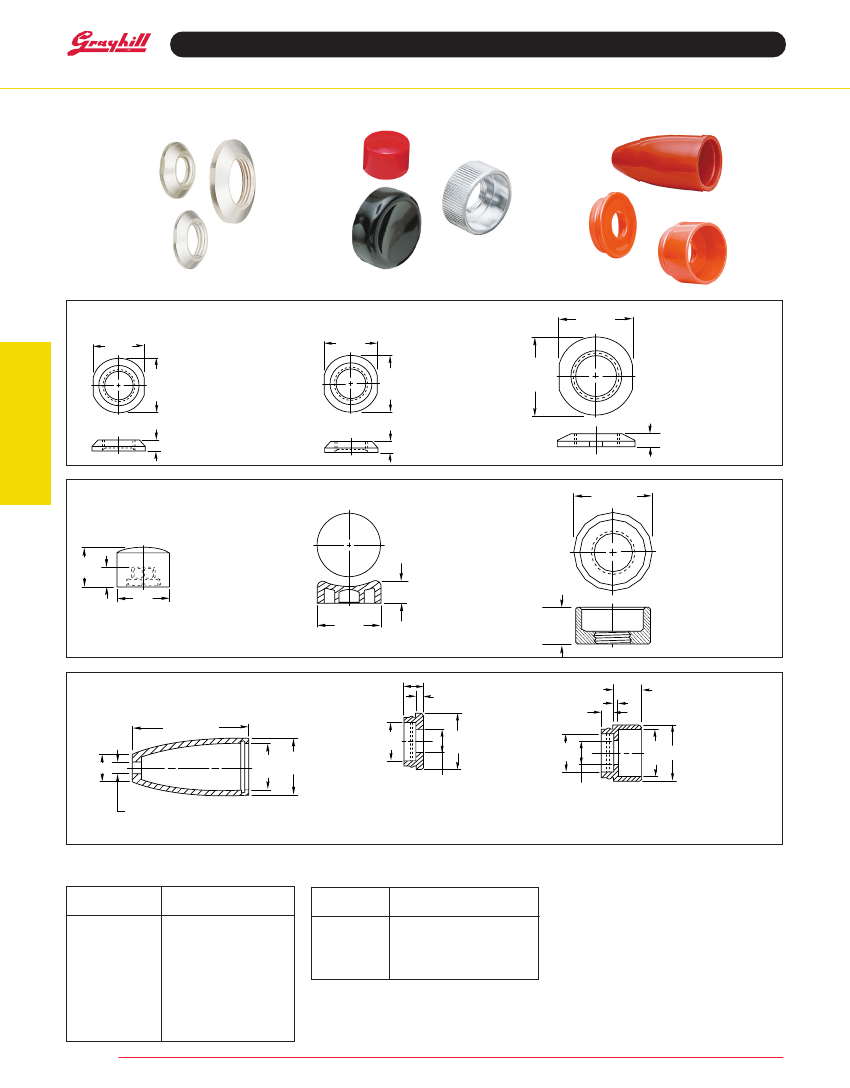

ACCESSORIES
For Pushbutton Switches
Button
Caps
Decorative
Mounting Nuts
Pendant Housing
Button
Guard
DIMENSIONS
.44 (11,2)
ACROSS
FLATS
In Inches (and millimeters)
.50 (12,7)
ACROSS
FLATS
.52
(13,2)
DIA.
.75 (19,1)
ACROSS
FLATS
Decorative Mounting Nuts
30C1023-1
.46
(11,7)
DIA.
23C1024-1
.77
(19,6)
DIA.
Brass, nickel-plated
for 5/16" (7,93)
bushing.
07C1040-1
Pushbutton Switches
.19
(4,8) .09
(2,3)
Brass, nickel-plated
for 1/4" (6,35)
bushing.
Brass, nickel-plated for
15/32" (11,9) bushing.
.12 (3,1)
.09 (2,3)
.09 (2,3)
Button Caps and Guard
30B1012
Thermosetting plastic (Fasten to
button with cyanoacrylate
adhesive) black, red or white.
.89 (22,6)
DIA.
07Z1047
10C1015-1
.25
(6,4)
DIA.
For use with all Series 30 and 39
switches except part number
39-101. See switch pages.
.34 (8,6)
1.00
(25,4)
DIA.
Thermoplastic, black or red
color.
For use with Series 2000 and
Series 7 switches. See switch
pages.
Brass, zinc trivalent
chromate-plated for 15/
32" (11,9) bushing.
.41
(10,4)
Remote Switching Accessories
Pendant Housing and Caps
07Z4950
07Z5051
2.45 (62,23)
.33 (8,4)
REF.
.08 (2,0)
.59
(15,0)
.08 (2,03)
.25
(6,4)
.89
(22,6)
Housing
.89
(22,6)
1.19
(30,2)
1.19
(30,2)
.48 (12,2)
Flat Cap
Recessed Cap
1.04
1.19 (30,2)
(26,4)
.42 (10,67)
1.03
(26,16)
.27 (6,86) DIA.
Material: Thermoplastic
Specials: other colors available on
special order.
.48 (12,2)
Application:
All grayhill pushbutton switches with 15/32-32 bushings: catalog numbers 2201,
2202, 07-7, 07-8, 07-21, 07-22, 07-26, 4001, 4002, 10-9, 10-10, 10-100, 10-101,
30-16, 30-17 and 30-32. any other switch with 15/32-32 bushing if it fits housing.
ORDERING INFORMATION:
Mounting Nuts, Button Caps, and Guards
Part
Number
Color
07C1040-1
23C1024
30C1023-1
07Z1047-1 BLK
07Z1047-2 RED
10C1015-1
30B1012-5
30B1012-8
30B1012-9
Decorative Nut
Decorative Nut
Decorative Nut
Black Button Cap
Red Button Cap
Button Guard
Red Cap
White Cap
Black Cap
Pendant Housing and Caps
Part
Number
07Z4950
07Z4950
07Z5051
07Z5051
RED
BLK
RED
BLK
Description
Red Flat Cap & Housing
Black Flat Cap & Housing
Red Rcssd Cap & Housing
Black Rcssd Cap & Housing
Available from your local Grayhill Distributor.
For prices and discounts, contact a local Sales
Office, an authorized local Distributor, or Grayhill.
Sold only as sets of one housing and one cap.
Pushbutton
62
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
