208477096008050 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 208477096008050

208477096008050: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size159KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

208477096008050 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle, ROHS COMPLIANT

208477096008050 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: DIN 41612
body width	0.413 inch
body length	3.697 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.834 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	8477
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.45 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

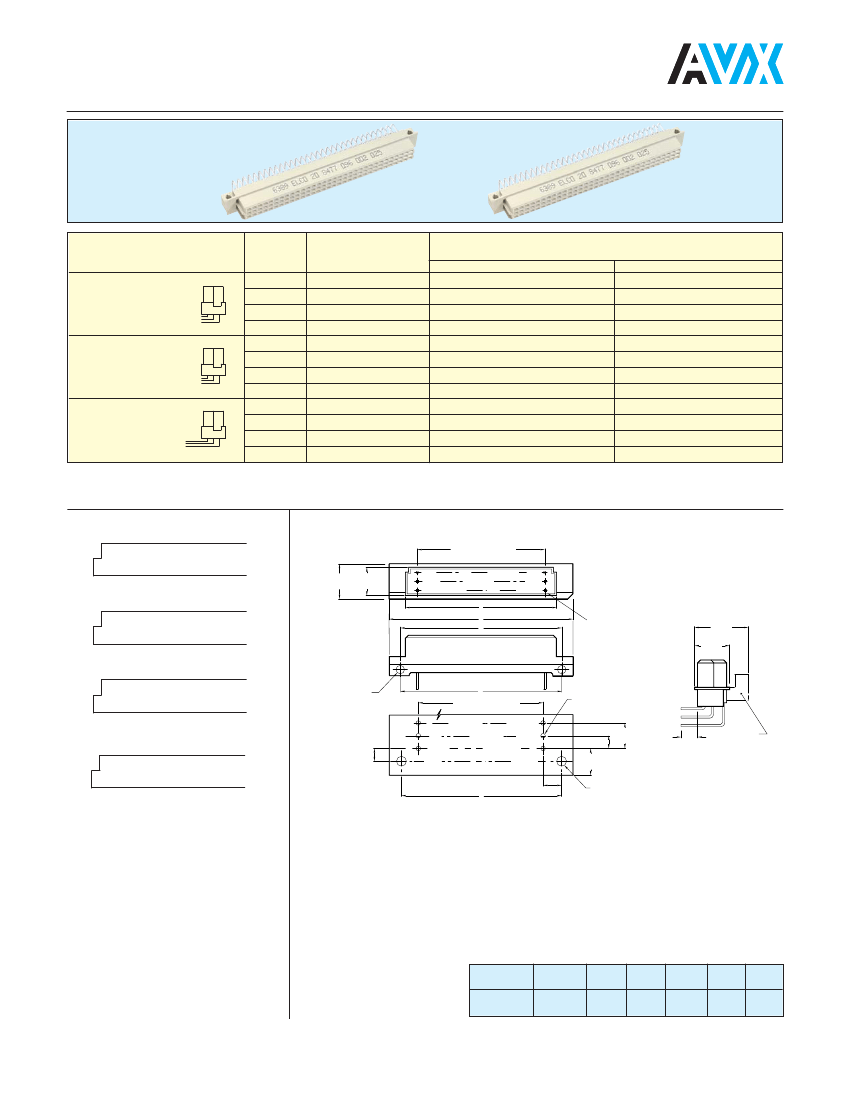

Female Style R

Series 8477 – 3 rows (3 x 32) Inverted

Contact Design

and

Termination Length

Number of

Contacts

Loading Description

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

Part Number

Performance classes according to DIN 41612

20 8477 096 002 025

20 8477 096 002 049

20 8477 096 002 026

20 8477 096 002 033

20 8477 096 002 027

20 8477 096 008 025

20 8477 096 008 026

20 8477 096 008 033

20 8477 096 008 027

20 8477 096 012 025

20 8477 096 012 026

20 8477 096 012 033

20 8477 096 012 027

20 8477 096 002 050

20 8477 096 002 057

20 8477 096 002 051

20 8477 096 008 049

20 8477 096 008 050

20 8477 096 008 057

20 8477 096 008 051

20 8477 096 012 049

20 8477 096 012 050

20 8477 096 012 057

20 8477 096 012 051

3.0 mm (Y)

0.6 x 0.6 mm Right Angled

0.6 x 0.6 mm

11.43 mm (Y)

Right Angled

0.6 x 0.6 mm

4.5 mm (Y)

Right Angled

NB: Alternative Prefix Variations Available: 26, please refer to Page 10.

Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.

LOADING DESCRIPTION

●

DIMENSIONS

A EQ SP @ 2.54 [0.100] = B

ROW C

10.5

[0.413]

8.46

[0.333]

ROW A

ROW B

96 contacts, rows a + b + c fully loaded

●

13.4

[0.528]

10.5

[0.413]

64 contacts, rows a + c fully loaded

●

2.54

[0.100] DIA.

A EQ SP @ 2.54 [0.100] = B

1.02 DIA.

[0.040]

32 contacts, rows a + c even loading

2.54

[0.100]

ROW C

ROW B

ROW A

2.54

5.31 [0.100]

[0.209]

5.08

[0.200]

For Y dimension

see contact design

KEYING

●

5.08 [0.200]

2.84 DIA.

[0.112]

32 contacts, row a loading only

HOLE PATTERN

Unit: millimeters (inches)

No. Contact

Positions

Contact

Rows

3 (3 x 32)

78.74

(3.100)

93.90

(3.367)

88.90

(3.500)

84.91

(3.343)
