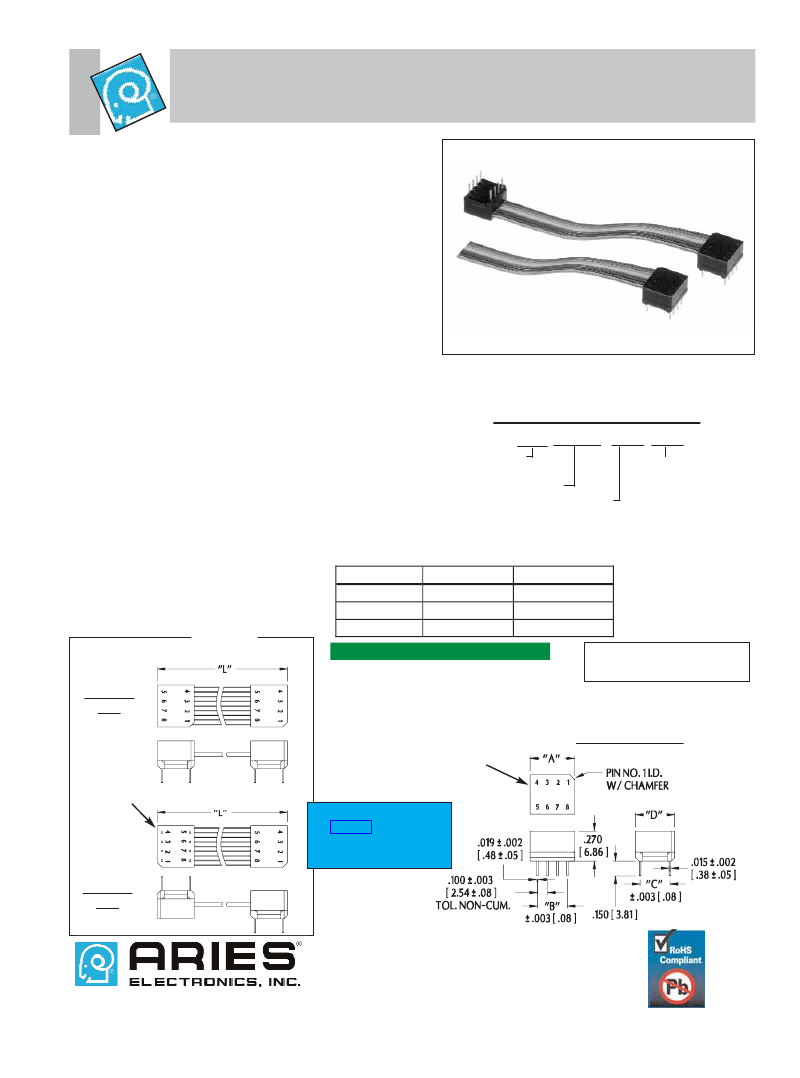

Series 100 thru 111 DIP Jumpers
FEATURES:
• Aries offers a wide array of DIP jumper configurations and wiring possibilities for all
your programming needs.
• Reliable, electronically tested solder connections.
• Protective covers are ultrasonically welded on and
provide strain relief for cables.
• 10-color cable allows for easy identification and tracing.
• Consult factory for jumper lengths under 2.000 [50.80].
SPECIFICATIONS:
• Header body and cover is black UL 94V-0 4/6 Nylon.
• Header pins are Brass, 1/2 hard.
• Standard Pin plating is 10μ [.25μm] min. Gold per MIL-G-45204 over 50μ [1.27μm]
min. Nickel per QQ-N-290.
• Optional Plating:
“T” = 200μ” [5.08μm] min. Matte Tin per ASTM B545-97 over 50μ” [1.27μm] min.
Nickel per QQ-N-290.
Note: Aries specializes in custom design and production. In addition to the
“TL” = 200μ” [5.08μm] 90/10 Tin/Lead per MIL-T-10727 Type I over 50μ” [1.27μm]
standard products shown on this page, special materials, platings, sizes,
min. Nickel per QQ-N-290.
and configurations can be furnished, depending on quantities. Aries
Cable insulation is UL Style 2697 Polyvinyl Chloride (PVC).
reserves the right to change product specifications without notice.
Laminate is clear PVC, self-extinguishing.
**
.050 [1.27] pitch conductors are 28 AWG, 7/36 strand, Tinned Copper per ASTM B 33
XX-XXXX-XXXXXX
(.039 [.99] pitch conductors are 26 AWG, 7/34 strand).
Cable current rating=1 Amp @ 10°C [50°F] above
No. of conductors
Optional suffix:
ambient.
(see table)
T=Tin plated header pins
Cable voltage rating=300 Volts.
•
•
•
•
•
ORDERING INFORMATION
• Cable temperature rating=176°F [80°C].
• Cable capacitance=13.0 pf/ft. [42.7pf/meter] nominal
@1 MHz.**
• Crosstalk: 10’ sample, 5 ns rise time with 2 lines driven. Near end=4.7%;
Far end=4.3% nominal.**
• Propagation delay=1.5 ns/ft. [4.9 ns/meter] nominal.**
Centers “C”
• Insulation resistance=1010 Ohms (10 ft. [3 meters] min.).
**Note: Applies to .050 [1.27] pitch cable only.
MOUNTING CONSIDERATIONS:
•Suggested PCB hole size=.033 ± .002 [.86 ±.05].
Cable length in inches:
Jumper
Ex: 2” = -002-
series
2.5” = -002.5-
(min. length=2.”[50.80mm])
“L”
± .125
Dim. “D”
Available Sizes
.300 [7.62]
.395 [10.03]
4 thru 20
.400 [10.16]
.495 [12.57]
22
.600 [15.24]
.695 [17.65]
24, 28, 40
All tolerances ± .005[.13]
All Dimensions: Inches [Millimeters]
unless otherwise specified
“A”=(NO. OF CONDUCTORS X .050 [1.27) + .095 [2.41]
“B”=(NO. OF CONDUCTORS - 1) X .050 [1.27]
TL= Tin/Lead plated
header pins
TW=twisted pair cable
ST=stripped and Tin
Dipped ends
(Series 106-111)
STL= stripped and
Tin/Lead Dipped Ends
(Series 106-111)
SERIES
100
HEADER DETAIL
Note: 10, 12, 18, 20, & 28
conductor jumpers do not
have numbers on covers.
Numbers
shown pin
side for
reference
only.
“L”
± .125
See Data Sheet No.
11007 for other
configurations and
additional information.
SERIES
101
11006
http://www.arieselec.com • info@arieselec.com
REV.F
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX: (908) 996-3891
