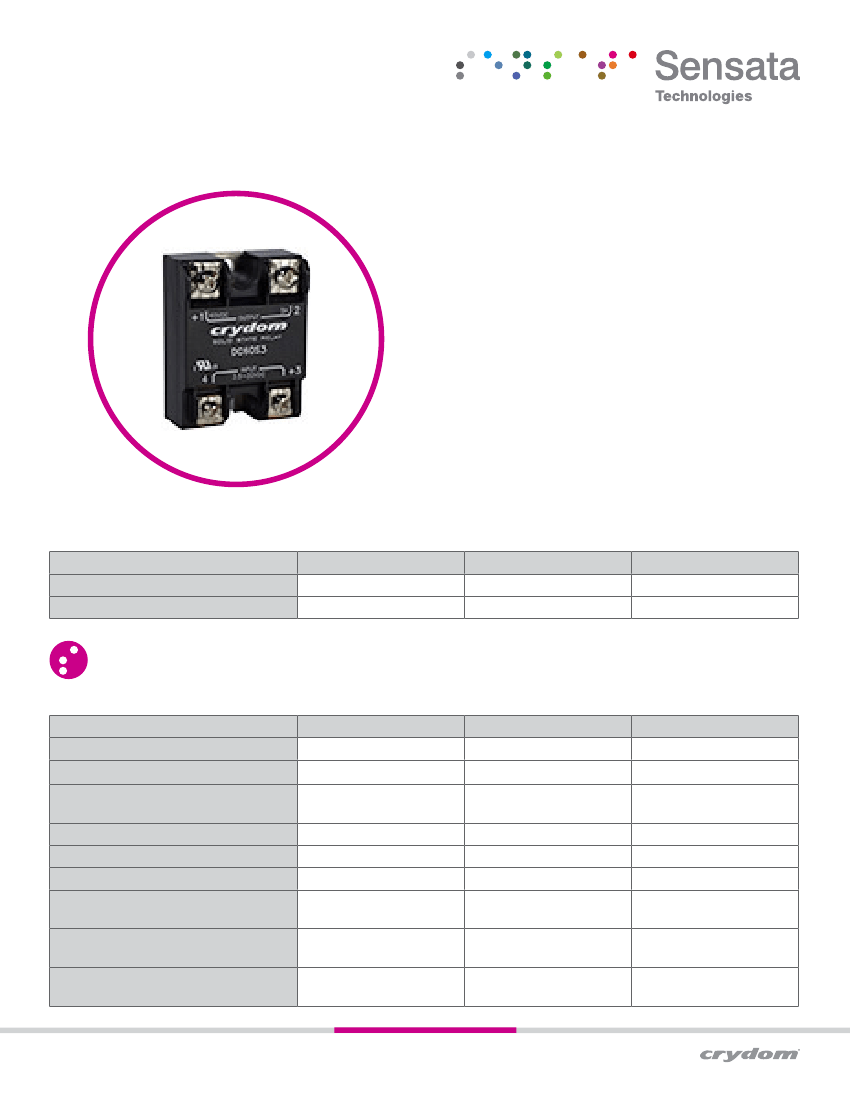

DC60 SERIES |
PANEL MOUNT
Features
• Ratings from 3A to 7A @ 60 VDC
• Bi-Polar Transistor Output
• UL Approved, CE Compliant to EN60950-1
• Improved SEMS Screw and Washer
• Redesigned Housing with Anti-Rotation Barriers
• AC and DC Control
• Epoxy Free Design
Product Selection
Control Voltage
3.5-32 VDC
90-280 VAC/VDC
3A
DC60S3
DC60SA3
5A
DC60S5
DC60SA5
7A
DC60S7
DC60SA7
SPECIFICATIONS
Output Specifications
(2)
Description
Recommended Operating Voltage [Vdc]
Absolute Maximum Rating [Vdc]
Maximum Off-State Leakage Current
@ Rated Voltage [mA]
Maximum Load Current [Adc]
(3)
Minimum Load Current [mA]
Maximum Surge Current (10 msec) [Adc]
Maximum On-State Voltage Drop
@ Rated Current [Vdc]
Thermal Resistance Junction to Case
(Rjc) [°C/W]
Minimum Heat Sink @ Ambient
(for max current = °C/W & Ta)
3A
3-48
60
0.1
3
20
6
1
2
5 @ 60°C
5A
3-48
60
0.1
5
20
10
1.2
2
5 @ 60°C
7A
3-48
60
0.1
7
20
14
1.3
2
5 @ 40°C
Page 1
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
Input Specifications
(2)
Description
Control Voltage Range
Maximum Reverse Voltage
Minimum Turn-On Voltage
(4)
Must Turn-Off Voltage
(5)
Minimum Input Current (For On-State)
Maximum Input Current
Nominal Input Impedance [Ohms]
Maximum Turn-On Time [msec]
(6)
Maximum Turn-Off Time [msec]
(7)
DC Control
3.5-32 VDC
-32 VDC
3.5 VDC
1 VDC
2.2 mA
25 mA
1500 Ohm
0.1
0.3
AC Control
90-280 VAC/VDC
—
90 VAC/VDC
10 VAC/VDC
2 mA
5.5 mA
60K
10
40
General Specifications
(2)
Description
Dielectric Strength, Input/Output/Base
(50/60Hz)
(2)
Minimum Insulation Resistance
(@500 VDC)
(2)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Housing Material
Baseplate Material
Input Terminal Screw Torque Range
(in/lb/NM)
Load Terminal Screw Torque Range
(in/lb/NM)
SSR Mounting Screw Torque Range
(in-lb/Nm)
Input/Load Terminal Screw Torque Range
(in/lb/NM)
(1)
Humidity
MTBF (Mean Time Between Failures)
at 40°C Ambient Temperature
(8)
MTBF (Mean Time Between Failures)
at 60°C Ambient Temperature
(8)
Parameters
4000 Vrms
10
9
Ohm
8 pF
-30 to 80°C
-40 to 125°C
2.46 oz. (17g)
UL94 V-0
Aluminum
13-15 / 1.5-1.7
18-20 / 2-2.2
18-20 / 2-2.2
13-15 / 1.5-1.7
85% non-condensing
21,395,130 hours (2,441 years)
11,545,504 hours (1,317 years)
Page 2
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
WIRING DIAGRAM
*
Inductive loads must be diode suppressed.
Recommended Wire Sizes
Terminals
Input
Wire Size
(Solid / Stranded)
24 AWG (0.2 mm
2
) / 0.2 [minimum]
2 x 12 AWG (3.3 mm
2
) / 3.3 [maximum]
20 AWG (0.5 mm
2
) / 0.518 [minimum]
2 x 10 AWG (5.3 mm
2
) / 5.3
2 x 8 AWG (8.4 mm
2)
/ 8.4 [maximum]
Wire Pull-Out
Strength (lb) [N]
10 [44.5]
90 [400]
30 [133]
110 [490]
90 [400]
Output

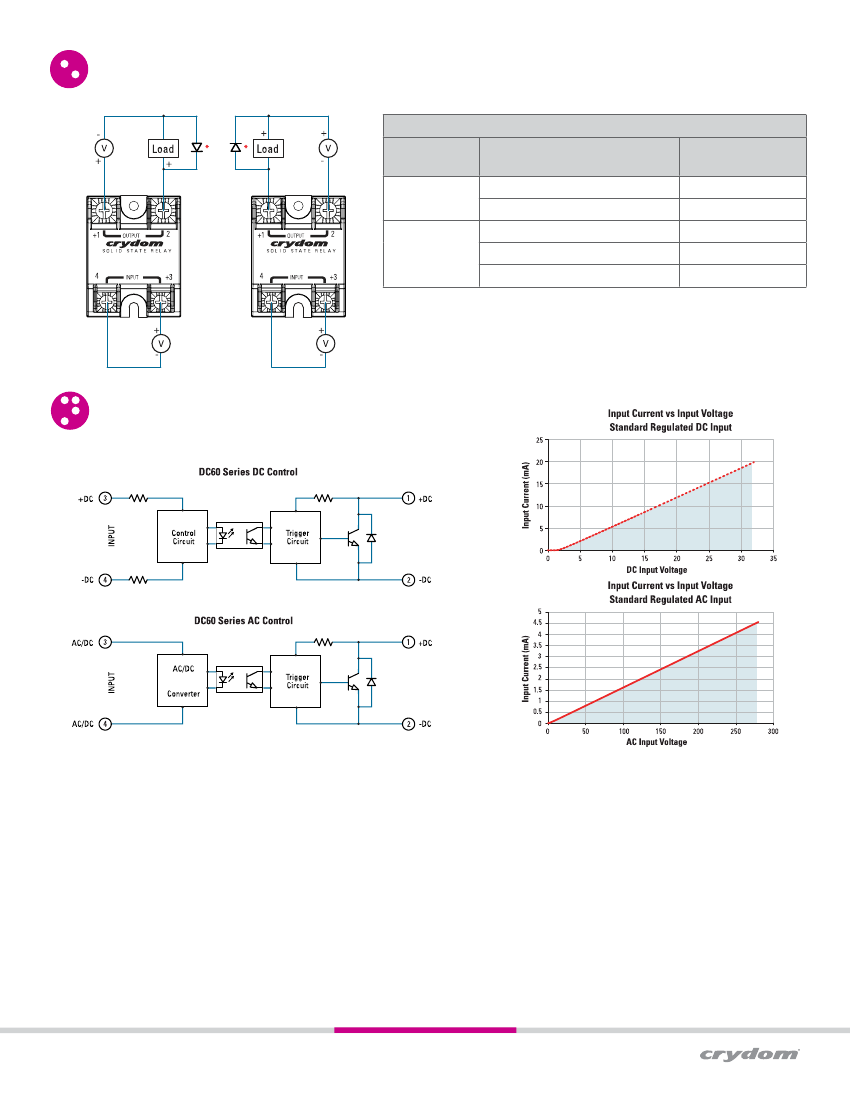

EQUIVALENT CIRCUIT BLOCK DIAGRAMS
Page 3
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com

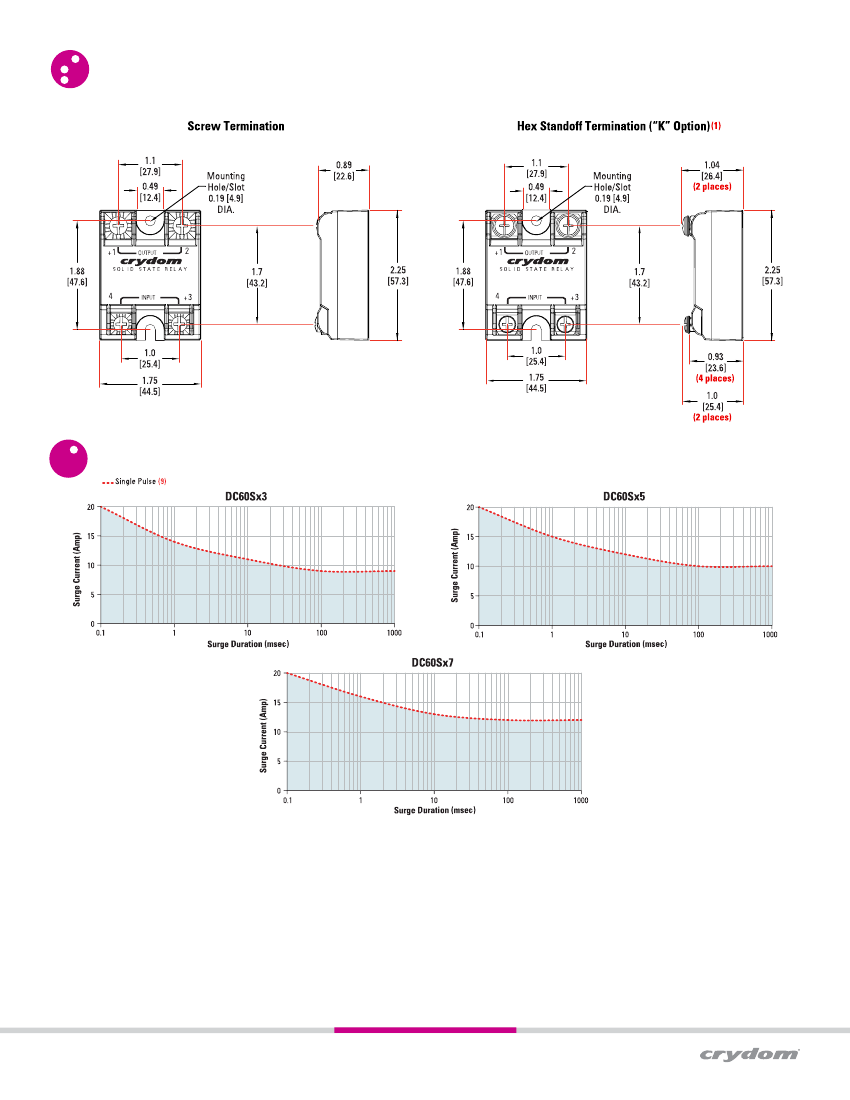

Tolerances: ±0.02 in / /0.5 mm
All dimensions are in inches [millimeters]
MECHANICAL SPECIFICATIONS
(1)
SURGE CURRENT INFORMATION
Page 4
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com

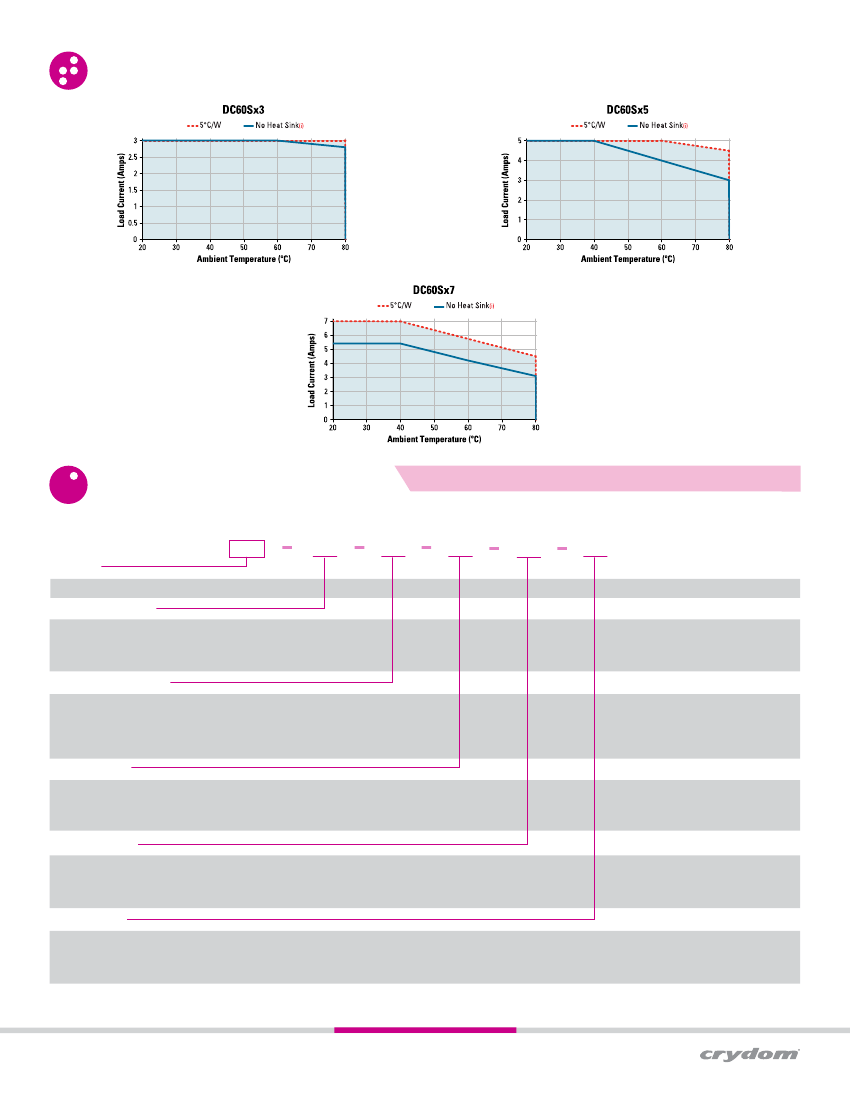

THERMAL DERATE INFORMATION
(i)
SSR metal base plate acting as heat sink, it must be exposed to free ambient air.
ORDERING OPTIONS
Example : DC60 SA 3 K H -B
90-280 VAC/DC Control Voltage, 3 Amp Rated Load Current, Installed Standoffs
with Screws for PC Board Mounting, Thermal Pad, Normally Closed Output.
SA
3
K
H
-B
DC60
Series
Required for Valid Part Number
Control Voltage
S:
3.5-32 VDC
SA:
90-280 VAC/DC
Required for Valid Part Number
Rated Load Current
3:
3 Amps
5:
5 Amps
7:
7 Amps
Required for Valid Part Number
Termination
Blank:
Screws & clamps
K:
Installed standoffs with screws for PC Board mounting
(1)
For options only and not required for valid part number
Thermal Pad
Blank:
Not Included
H:
Included
For options only and not required for valid part number
Output Type
Blank:
Normally Open
-B:
Normally Closed (for DC control only)
For options only and not required for valid part number
Not all part number combinations are available.
Contact Sensata Technical Support for information on the availability of a specific part number.
(1)
Page 5
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
