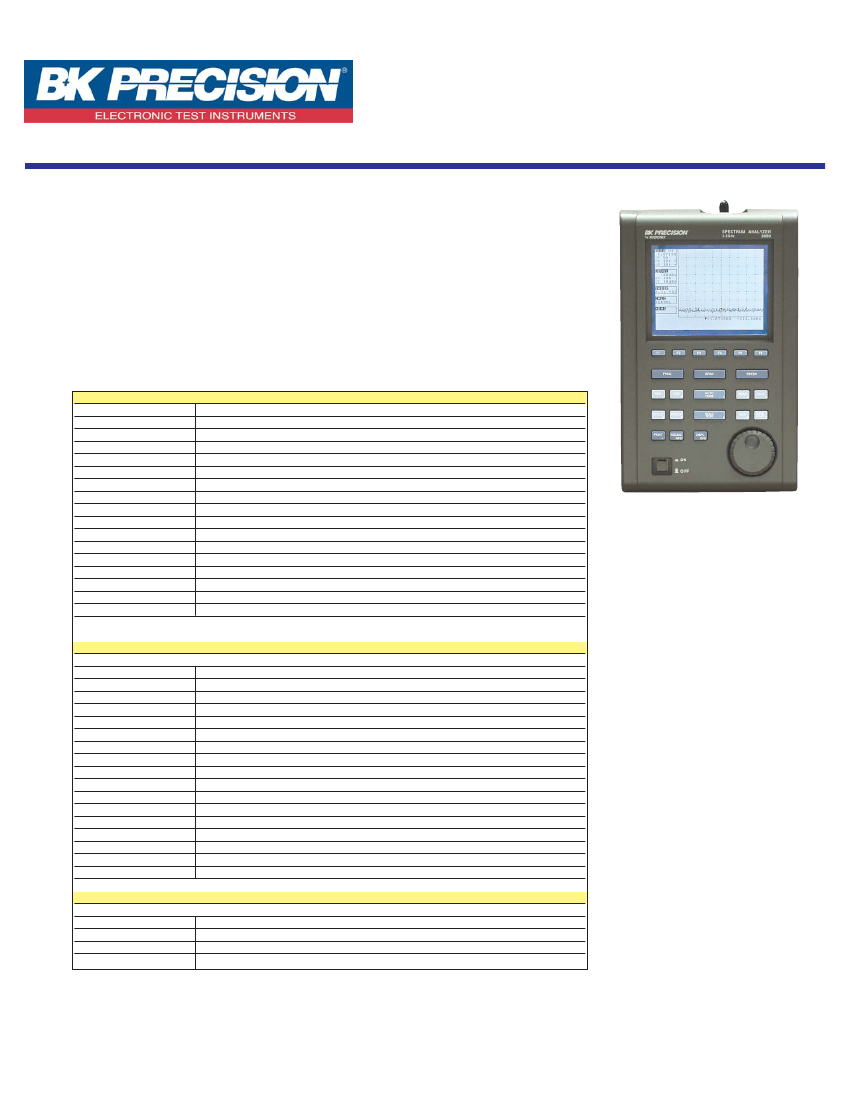

Handheld 3.3GHz
Spectrum Analyzer
Model 2650
Data Sheet
2650 is a handheld spectrum analyzer ideal for the evaluation of W-CDMA, CDMA,
GSM, PDC, PHS, Wireless LAN, 802.11 and Bluetooth systems. It was designed to
be the most cost effective spectrum analyzer for quick and easy high-precision signal
measurements.
- Measuring frequency range from 50KHz to 3.3GHz
- Auto tuning function
- Channel power measurements
- Adjacent channel power measurements
- Occupied bandwidth measurements
- Electric field strength measurements
- Magnetic field strength measurements
Frequency Section
Frequency Range
Center Frequency
Setting Resolution
Accuracy
50KHz to 3.3GHz
100KHz, Allows rotary encoder, numeric keys and function keys
(up and down) for setting CF.
< +(30+100T)KHz @ 200KHz to 10MHz span
< +(100+700T)KHz @ 20MHz to 3.3GHz span
at 23ºC (+5ºC), T = sweep time(s)
0Hz (zero span), 200KHz to 2GHz (1-2-5 steps) and 3.3GHz (full span)
less than +3% @ 23ºC (+5ºC)
3dB bandwidth
3KHz to 3MHz (1-3 step) and AUTO
less than +20%
1:12 (nominal) @ 3dB:60dB
100Hz to 300KHz (1-3 step), OFF and AUTO
-90dBc/Hz (typical) @ 100KHz offset
less than –60dBc
Frequency Span
Setting Range
Accuracy
Resolution Bandwidth
Setting Range
Accuracy
Selectivity
Video Bandwidth
SSB Phase Noise
Spurious Response
Amplitude Selection
Reference Level
Setting Range
Accuracy
Unit
Average Noise Level
Input Impedance
Input VSWR
Input Attenuator
Operating Range
Switching Error
RBW Switching Error
Display Scale
Scale
Accuracy
+10 to –40dBm in 1dB step
less than +0.8dB @ RBW:3MHz, VBW:OFF, ATT:0dB, 23ºC (+5ºC)
dBm, dBV, dBmV, dB mV
-110dBm (typical) @ RBW:3KHz, VBW:100Hz
50W
less than 2.0
0 to 25dB @ 1dB step coupled with reference level
less than +0.6dB
less than +0.6dB
10dB/div, 2dB/div
less than +0.8dB/10dB
less than +0.2dB/2dB
less than +1.6dB/70dB
+23dBm (CW average power), 25VDC
SMA(J)
Input Damage Level
Input Connector
Sweep Section
Sweep Time
Setting Range
Accuracy
Trigger Mode
Detection Mode
10ms to 30s (1-3 step) and AUTO
less than +0.1% (less than +1.5% @ full span)
AUTO @ zero span
Positive peak, Negative peak, sample
Specifications subject to change without notice
B&K Precision Corporation
22820 Savi Ranch Parkway, Yorba Linda, CA 92887
Tel: 714-921-9095, Fax: 714-921-6422
www.bkprecision.com
