PCI/PCIe/cPCI-6208/6216 Series
8/16-CH 16-Bit Analog Output Cards
CompactPCI

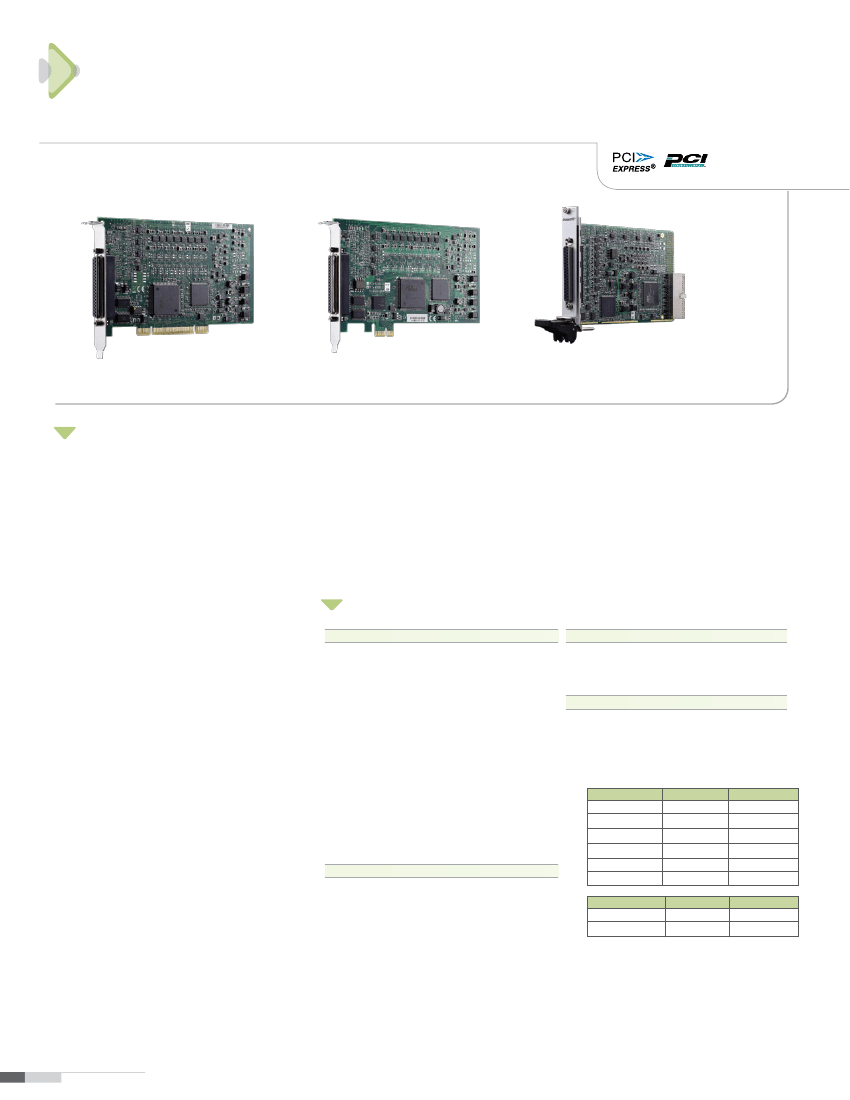

PCI-6208V-GL
PCIe-6208V-GL
cPCI-6208V-GL
Features
■
■
■
Introduction
ADLINK's PCI/PCIe/cPCI-6208 series are 8 or 16-CH, 16-bit, analog output cards. The PCI/PCIe/cPCI-6208V-GL series
offers 8 voltage outputs with ±10 V range, featuring 15-bit monotonicity and 10 V/μs slew rate. The onboard analog
switches minimize the power-on glitches. The PCI/PCIe/cPCI-6216V-GL series expands the voltage output channels to
a total of 16 for higher analog output density requirements. In addition to the voltage output functions, the PCI/cPCI-6208A
features 8 current outputs with ranges of 0-20 mA, 4-20 mA, and 5-25 mA. The daughter board EXP-8A provides high-quality
voltage to current transducers. The PCI/cPCI-6208A device is capable of delivering 14-bit monotonicity with 1.3 mA/μs
slew rate.
ADLINK PCI/PCIe/cPCI-6208 series devices provide high-resolution, high-density analog output functionalities and are
suitable for ATE, signal generation, industrial process control, servo control and other industrial control applications.
■
■
■
■
■
■
■
■
Supports a 32-bit 3.3 V or 5 V PCI bus (PCI-6208/6216-GL)
x1 lane PCI Express
®
Interface (PCIe-6208/6216-GL)
3U Eurocard form factor, CompactPCI compliant PICMG 2.0
R2.1 (cPCI-6208/6216 series)
16-bit D/A resolution
Effective 15-bit resolution current transducers
(PCI-6208A/cPCI-6208A)
8-CH voltage outputs (PCI/PCIe/cPCI-6208V-GL)
16-CH voltage outputs (PCI/PCIe/cPCI-6216V-GL)
8-CH current outputs (PCI/cPCI-6208A)
Bipolar analog output range
4-CH TTL digital inputs and 4-CH TTL digital outputs
Rear I/O available on the cPCI-6208V/R-GL, cPCI-6216V/R-GL
& cPCI-6208A/R.
Systems
Specifications
Voltage Output
■
Digital I/O
■
■
■
Number of channels
PCI/cPCI-6208A)
Number of channels: 4 inputs and 4 outputs
Compatibility: 5 V/TTL
Data transfers: programmed I/O
■ Operating
• 8
voltage outputs (PCI/PCIe/cPCI-6208V-GL &
• 16
voltage outputs (PCI/PCIe/cPCI-6216V-GL)
■
■
■
■
■
■
■
■
■
■
• Windows
7/Vista/2000/XP/Server 2003
• Linux
• Windows
CE (call for availability)
• AD-Logger
• VB.NET/VC.NET/VB/VC++/BCB/Delphi
• DAQBench
• DAQPilot
for Windows
• DAQ-LVIEW
PnP for LabVIEW™
• DAQ-MTLB
for MATLAB
®
• PCIS-DASK
for Windows
• PCIS-DASK/X
for Linux
Resolution: 16 bits
Monotonicity: 15 bits typical
Output ranges: ±10 V
Slew rate:10 V/μs typical
Settling time: 130 μs typical (20 V step)
Gain Error: ±0.2% maximum
DNL: ±0.65 LSB typical
Output driving capacity: ±5 mA maximum
Output initial status: 0 V
Data transfer: programmed I/O
General Specifications
■
■
■
■
■
I/O connector: One 37-pin D-sub female
Operating temperature: 0˚C to 50˚C
Storage temperature: -20˚C to 80˚C
Relative humidity: 5% to 95%, non-condensing
Power requirements
Device
PCI-6208V-GL
PCI-6216V-GL
PCI-6208A
cPCI-6208V/R-GL
cPCI-6216V/R-GL
cPCI-6208A/R
Device
PCIe-6208V-GL
PCIe-6216V-GL
+5 V
650 mA typical
1.2 A typical
670 mA typical
500 mA typical
1 A typical
600 mA typical
+3.3 V
310 mA typical
315 mA typical
+12 V
170 mA typical
280 mA typical
380 mA typical
200 mA typical
300 mA typical
380 mA typical
+12 V
380 mA typical
660 mA typical
■ Recommended
Software
■ Driver
Support
Current Output
■
■
■
■
Number of channels: 8 current outputs (PCI/cPCI-6208A)
Resolution: 15 bits typical
Monotonicity: 14 bits typical
Output ranges: (Software programmable)
0-20 mA, 4-20 mA, 5-25 mA
■
■
■
■
■
■
Slew rate: 1.3 mA/μs typical
Settling time: 17 μs typical (20 mA step)
Span Error: ±0.3% typical
Output Initial Status: 4 mA (after RESET or POWER-ON)
Data transfer: programmed I/O
Dimensions (not including connectors)
175 mm x 107 mm (PCI-6208/6216)
168 mm x 112 mm (PCIe-6208/6216)
160 mm x 100 mm (cPCI-6208/6216)
2-29 www.adlinktech.com
Analog Output
1
Software &
Utilities
2
DAQ
Terminal Boards & Cables
■ DIN-37D-01
T
erminal Board with One 37-pin D-sub Connector
and DIN-Rail Mounting (Cables are not included.)
■ ACLD-9137-01
General-Purpose T
erminal Board with One 37-pin
D-sub Male Connector
■ ACLD-9137F-01
General-Purpose Terminal Board with One 37-pin
D-sub female Connector.
■ ACL-10137-1MM
37-pin D-sub male/male cable, 1 M
■ ACL-10137-1MF
37-pin D-sub male/female cable, 1 M
* For more information about mating cables, please refer to
P2-59/60.
Note: A rear I/O terminal board (cPCI-R6216DB) has been
included with the cPCI-6208V/R-GL, cPCI-6216V/R-GL and
cPCI- 6208A/R. This cPCI-R6216DB rear I/O board is responsible
for conducting I/O signals from the CompactPCI J2 connector
to a 37-pin D-sub connector.
Pin Assignment
PCI/PCIe/cPCI-6208V-GL and
PCI/PCIe/cPCI-6216V-GL
DI3
DI2
DI1
DI0
GND
+5Vout
+15Vout
AGND
NC/V14
V6
AGND
NC/V12
V4
AGND
NC/V10
V2
AGND
NC/V8
V0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
DO3
DO2
DO1
DO0
GND
-15Vout
AGND
NC/V15
V7
AGND
NC/V13
V5
AGND
NC/V11
V3
AGND
NC/V9
V1
3
PXI
4
Modular
Instruments
5
GPIB & Bus
Expansion
6
Motion
Control
(PCI/cPCI-6208A)
DI3
DI2
DI1
DI0
GND
+5Vout
+15Vout
AGND
A6
V6
AGND
A4
V4
AGND
A2
V2
AGND
A0
V0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
DO3
DO2
DO1
DO0
GND
-15Vout
AGND
A7
V7
AGND
A5
V5
AGND
A3
V3
AGND
A1
V1
7
Real-time
Distributed
I/O
Ordering Information
■ PCI-6208V-GL
8-CH 16-Bit Voltage Output Card
■ PCI-6216V-GL
16-CH 16-Bit Voltage Output Card
■
PCI-6208A
8-CH 16-Bit Voltage and Current Output Card
■ cPCI-6208V-GL
8-CH 16-Bit Voltage Output Module
■ cPCI-6208V/R-GL
8-CH 16-Bit Voltage Output Module with Rear I/O
■
cPCI-6208A
8-CH 16-Bit Voltage and Current Output Module
■
cPCI-6208AR
8-CH 16-Bit Voltage and Current Output Module
with Rear I/O
■ cPCI-6216V-GL
16-CH 16-Bit Voltage Output Module
■ cPCI-6216V/R-GL
16-CH 16-Bit Voltage Output Module with Rear I/O
■ PCIe-6208V-GL
8-CH 16-Bit Voltage Output PCI Express
®
Card
■ PCIe-6216V-GL
16-CH 16-Bit Voltage Output PCI Express
®
Card
Note: Rear I/O versions can not be used in PXI chassis due to
signals conflict with PXI bus.
8
PAC
9
Remote I/O
10
Communi-
cations
11
Vision
12
Fanless
Embedded
Computers
13
cPCI &
Industrial
Computers
www.adlinktech.com 2-30
