BAS70-04SE6727 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS70-04SE6727

BAS70-04SE6727: DescriptionRectifier Diode, Schottky, 4 Element, 0.07A, 70V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-6; CategoryDiscrete semiconductor diode; File Size271KB，23 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BAS70-04SE6727 Overview

Rectifier Diode, Schottky, 4 Element, 0.07A, 70V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-6

BAS70-04SE6727 Parametric

Parameter Name	Attribute value
Maker	Infineon
package instruction	R-PDSO-G6
Contacts	6
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G6
Number of components	4
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	0.07 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	70 V
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

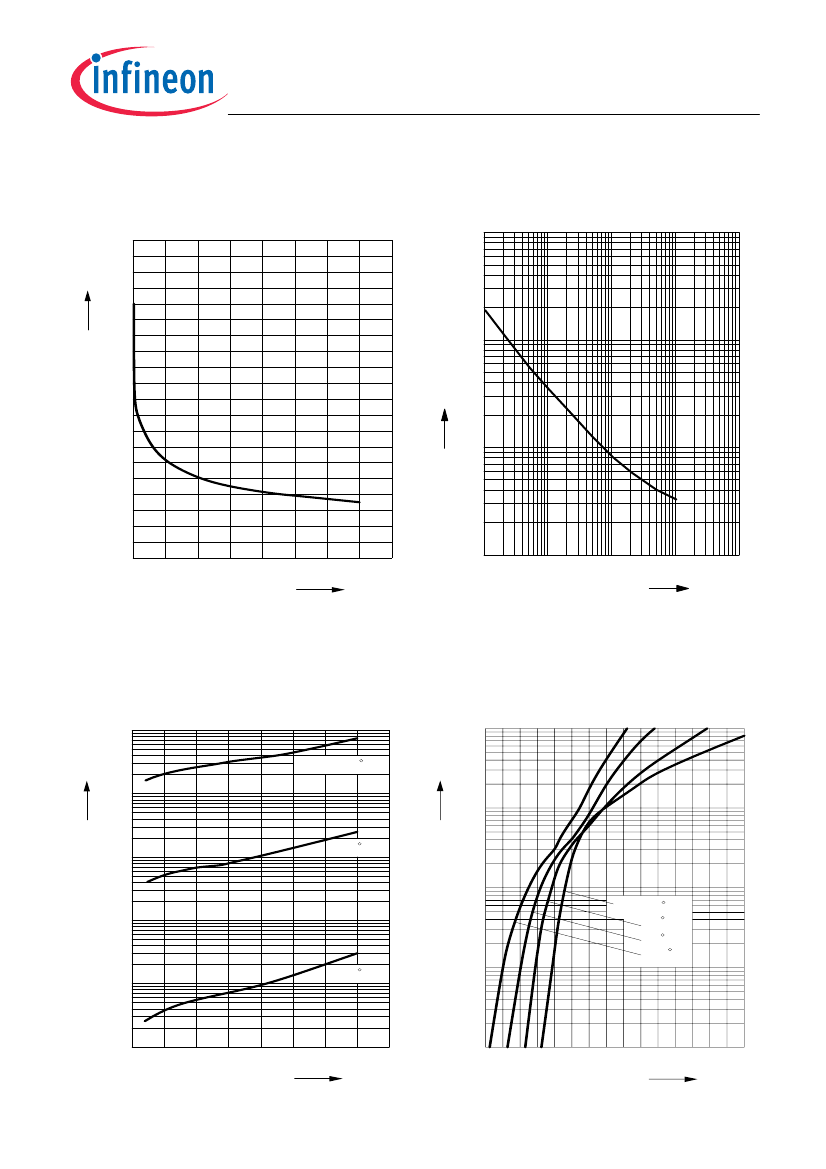

BAS70.../BAS170W

Silicon Schottky Diode

•

General-purpose diode for high-speed switching

•

Circuit protection

•

Voltage clamping

•

High-level detecting and mixing

•

BAS70-04S: For orientation in reel see

package information below

•

Pb-free (RoHS compliant) package

•

Qualified according AEC Q101

BAS170W

BAS70-02L

BAS70-02W

BAS70

BAS70-04

BAS70-04W

BAS70-04S

BAS70-05

BAS70-05W

, "

, !

BAS70-06

BAS70-06W

BAS70-07

BAS70-07W

Pb-containing

package may be available upon special request

2007-09-19

BAS70-04SE6727 Related Products

	BAS70-04SE6727	BAS70-04S-E6433	BAS7002WH6327XT	BAS70-02W-E6327	BAS70-02W-E6433	BAS70-04S-E6327	BAS70-07W-E6433	BAS70-02L-E6327
Description	Rectifier Diode, Schottky, 4 Element, 0.07A, 70V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-6	Rectifier Diode, 2 Element, 70V V(RRM),	Rectifier Diode, Schottky, 1 Element, 0.07A, 70V V(RRM), Silicon, ROHS COMPLIANT, SCD-80, 2 PIN	Rectifier Diode, Schottky, 1 Element, 70V V(RRM),	Rectifier Diode, Schottky, 1 Element, 70V V(RRM),	Rectifier Diode, 2 Element, 70V V(RRM),	Diode,	Rectifier Diode, Schottky, 1 Element, 70V V(RRM),
Maker	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon
Reach Compliance Code	unknown	compliant	unknown	unknown	compliant	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum repetitive peak reverse voltage	70 V	70 V	70 V	70 V	70 V	70 V	70 V	70 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Configuration	2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	-	SINGLE	SINGLE	SINGLE	-	-	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE
Number of components	4	-	1	1	1	-	-	1
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-	-55 °C	-55 °C	-
Maximum power dissipation	0.25 W	0.25 W	0.25 W	-	-	0.25 W	0.25 W	-
technology	SCHOTTKY	-	SCHOTTKY	SCHOTTKY	SCHOTTKY	-	-	SCHOTTKY
Base Number Matches	1	1	1	1	1	1	1	-
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maximum forward voltage (VF)	-	0.41 V	-	0.41 V	0.41 V	0.41 V	0.41 V	0.41 V
