HS103DR-HD6090 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Thermal management products> HS103DR-HD6090

HS103DR-HD6090: Descriptionheat sinks 55a/660v DC input ZC ssr mounted heatsink; CategoryThermal management products; File Size581KB，4 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

HS103DR-HD6090 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HS103DR-HD6090	-	-	View	Buy Now

HS103DR-HD6090 Overview

heat sinks 55a/660v DC input ZC ssr mounted heatsink

HS103DR-HD6090 Parametric

Parameter Name	Attribute value
Manufacture	Crydom
Product Category	Heat Sinks
RoHS	Yes
Produc	Heat Sinks
Mounting Style	DIN Rail
Heatsink Material	Aluminum
Fin Style	Vertical
Thermal Resistance	1 C/W
Length	132.1 mm
Width	76.2 mm
Heigh	60.2 mm
Designed f	SSR
Col	Black
Factory Pack Quantity	5

Preview

Download Datasheet

View All

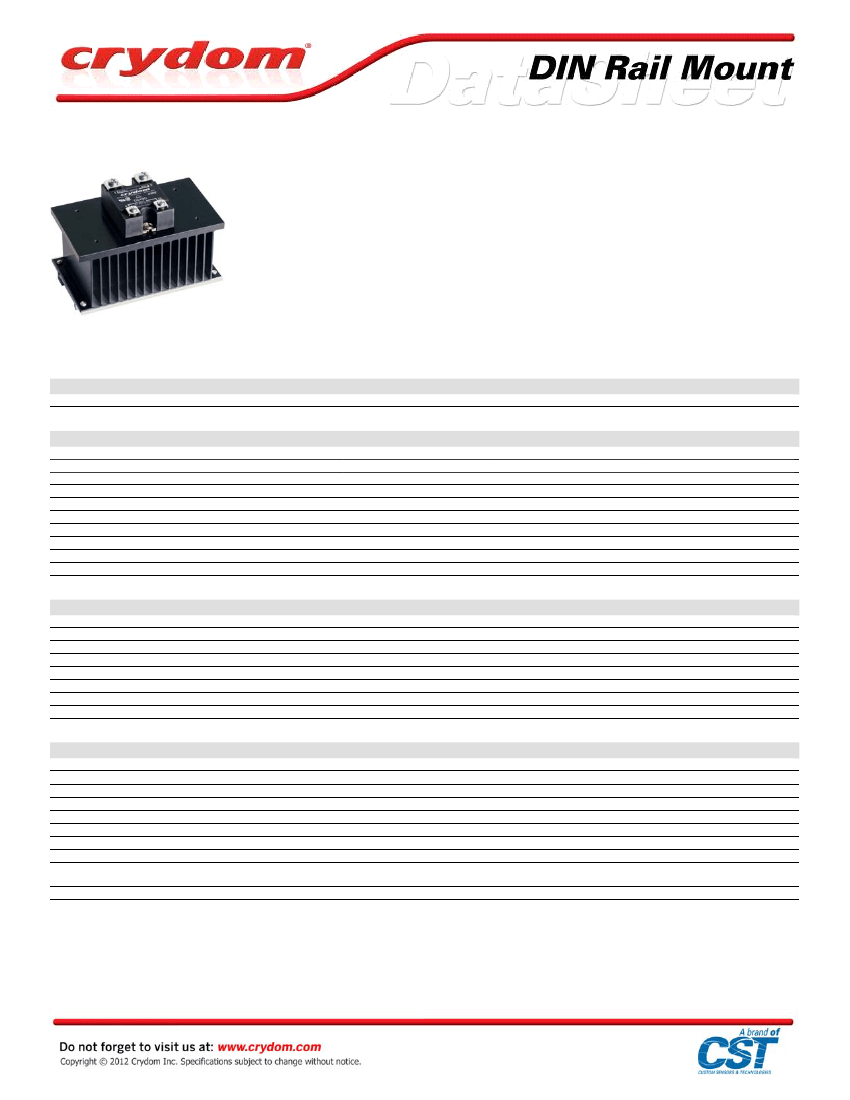

HS103DR Series Assemblies

•

55 amp AC output @ 40°C

•

Single Channel or 3 Phase output

•

3 to 32 VDC input control voltage

•

DIN Rail mounted

•

UL, CSA, VDE, CE approved SSRs

PRODUCT SELECTION

Description

3-32 VDC Control

55 A

HS103DR-D2490

55 A

HS103DR-HD6090

55 A

HS103DR-D53TP25D

OUTPUT SPECIFICATIONS (1)

Description

Operating Voltage (47-63Hz) [Vrms]

Transient Overvoltage [Vpk]

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)

Maximum Load Current [Arms]

Minimum Load Current [Arms]

Maximum Surge Current (16.6ms) [Apk]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Maximum I²t for Fusing (8.3 msec) [A² sec]

Minimum Power Factor (with Maximum Load)

HS103DR-D2490

24-280

600

500

0.04

1200

1.6

6000

0.5

HS103DR-HD6090

48-660

1200

500

0.04

1200

1.7

6000

0.5

HS103DR-D53TP25D

48-530

1200

500

0.05

250

1.6

260

0.5

INPUT SPECIFICATIONS (1)

Description

Control Voltage Range

Minimum Turn-On Voltage

Minimum Turn-Off Voltage

Maximum Reverse Voltage

Typical Input Current

Nominal Input Impeadance

Maximum Turn-On Time [msec]

Maximum Turn-Off Time [msec]

HS103DR-D2490

3-32 VDC

3.0 VDC

1.0 VDC

32 VDC

3.4 mA @ 5 VDC

1500 Ohms

1/2 Cycle

HS103DR-HD6090

3-32 VDC

3.0 VDC

1.0 VDC

32 VDC

2.0 mA (3)

(3)

1/2 Cycle

HS103DR-D53TP25D

3-32 VDC

3.0 VDC

1.0 VDC

32 VDC

10 mA @ 5 VDC

450 Ohms

1/2 Cycle

GENERAL SPECIFICATIONS

Description

Dielectric Strength, Input/Output/Base (50/60Hz)

Minimum Insulation Resistance (@ 500 V DC)

Maximum Capacitance, Input/Output

Ambient Operating Temperature Range

Ambient Storage Temperature Range

Status Indicator Display

Weight (typical)

Encapsulation

Recommended Terminal Screw Torque Range:

Thermal pad installed

HS103DR-Dxx90

4000 Vrms

HS103DR-D53TP25D

4000 Vrms

Ohms

8 pF

-40 to 80˚C

-40 to 125˚C

None

1.39 lb. (631g)

Themally Conductive Epoxy

6-32 Screws - 10 in/lbs. 8-32 Screws - 20 in/lbs.

(Screws dry without grease)

Yes

Ohms

10 pF

-40 to 80°C

-40 to 125°C

None

1.84 lb (859g)

Themally Conductive Epoxy

6-32 Screws - 10 in/lbs. 8-32 Screws - 20 in/lbs.

(Screws dry without grease)

Yes

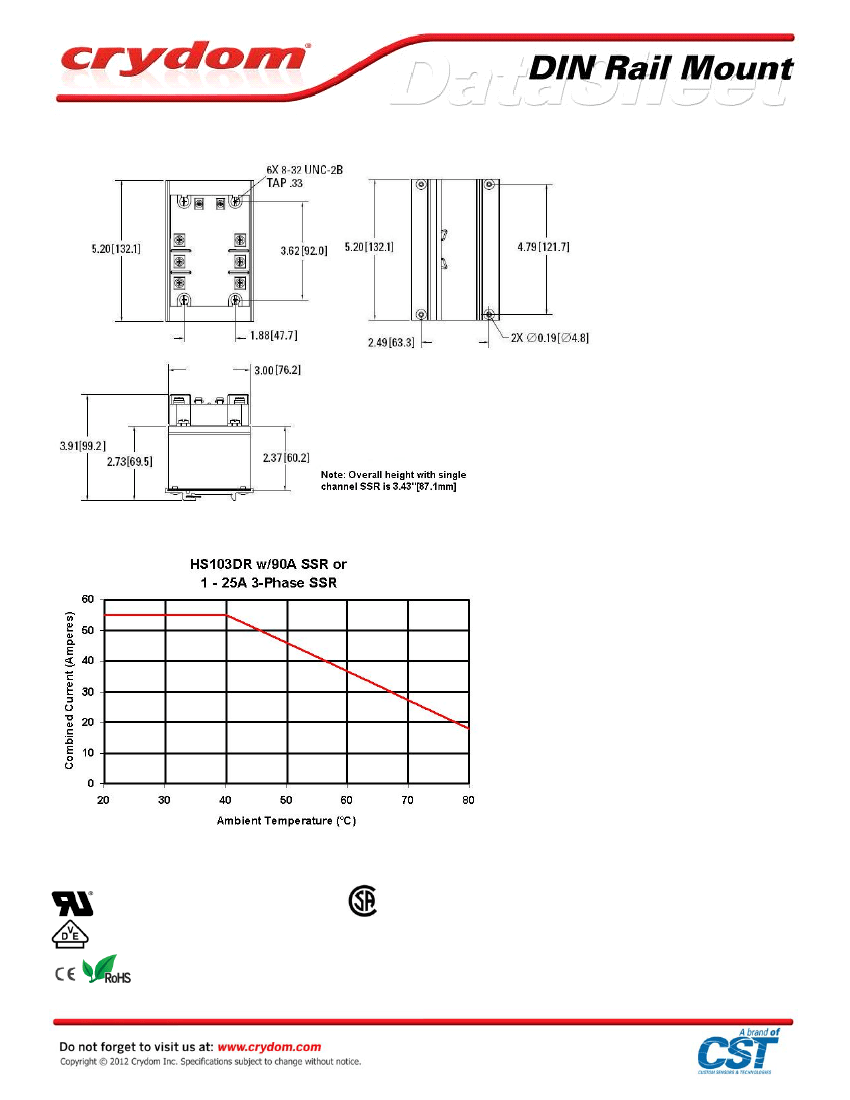

GENERAL NOTES

1) All parameters at 25°C unless otherwise specified.

2) Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1

3) Input circuitry for DC control version incorporates active current limiter (HD model only)
