246A220M010SP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 246A220M010SP

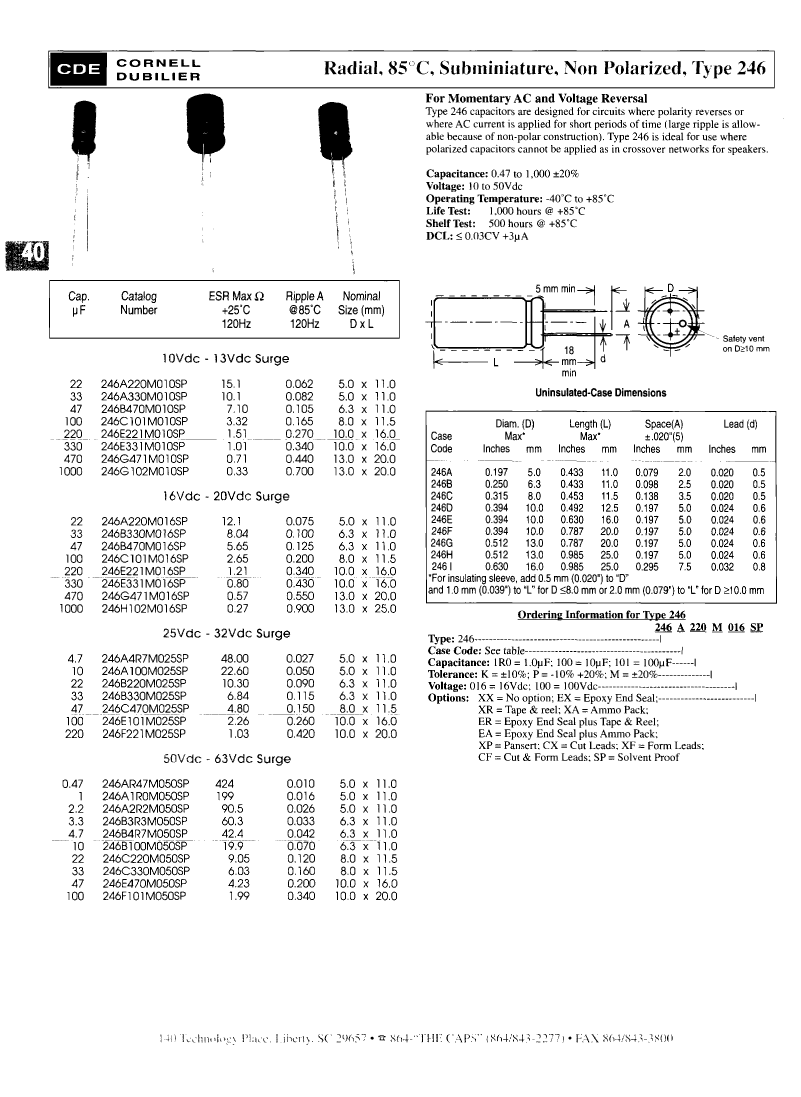

246A220M010SP: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size61KB，1 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric Compare View All

246A220M010SP Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED

246A220M010SP Parametric

Parameter Name	Attribute value
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
Custom functions	Solvent Proof
diameter	5 mm
dielectric materials	ALUMINUM (WET)
ESR	15100 mΩ
leakage current	0.0096 mA
length	11 mm
Manufacturer's serial number	246
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
series	246
surface mount	NO
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

246A220M010SP Related Products

	246A220M010SP	246A2R2M050SP	246A4R7M050SP	246A100M025SP	246A330M016SP	246A1R0M050SP	246A220M016SP	246A330M010SP	246A4R7M025SP	246E470M050SP
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 2.2uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.47uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 10uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 1uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 4.7uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	22 µF	2.2 µF	0.47 µF	10 µF	33 µF	1 µF	22 µF	33 µF	4.7 µF	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
ESR	15100 mΩ	90500 mΩ	424000 mΩ	22600 mΩ	8040 mΩ	199000 mΩ	12100 mΩ	10100 mΩ	48000 mΩ	4230 mΩ
leakage current	0.0096 mA	0.0063 mA	0.003705 mA	0.0105 mA	0.01884 mA	0.0045 mA	0.01356 mA	0.0129 mA	0.006525 mA	0.0735 mA
Manufacturer's serial number	246	246	246	246	246	246	246	246	246	246
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	10 V	50 V	50 V	25 V	16 V	50 V	16 V	10 V	25 V	50 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]	-
Custom functions	Solvent Proof	Solvent Proof	-	Solvent Proof	-	Solvent Proof	Solvent Proof	Solvent Proof	Solvent Proof	Solvent Proof
diameter	5 mm	5 mm	-	5 mm	-	5 mm	5 mm	5 mm	5 mm	10 mm
length	11 mm	11 mm	-	11 mm	-	11 mm	11 mm	11 mm	11 mm	16 mm
Package form	Radial	Radial	-	Radial	-	Radial	Radial	Radial	Radial	Radial
series	246	246	-	246	-	246	246	246	246	246
Base Number Matches	1	1	1	1	1	1	-	-	-	-
