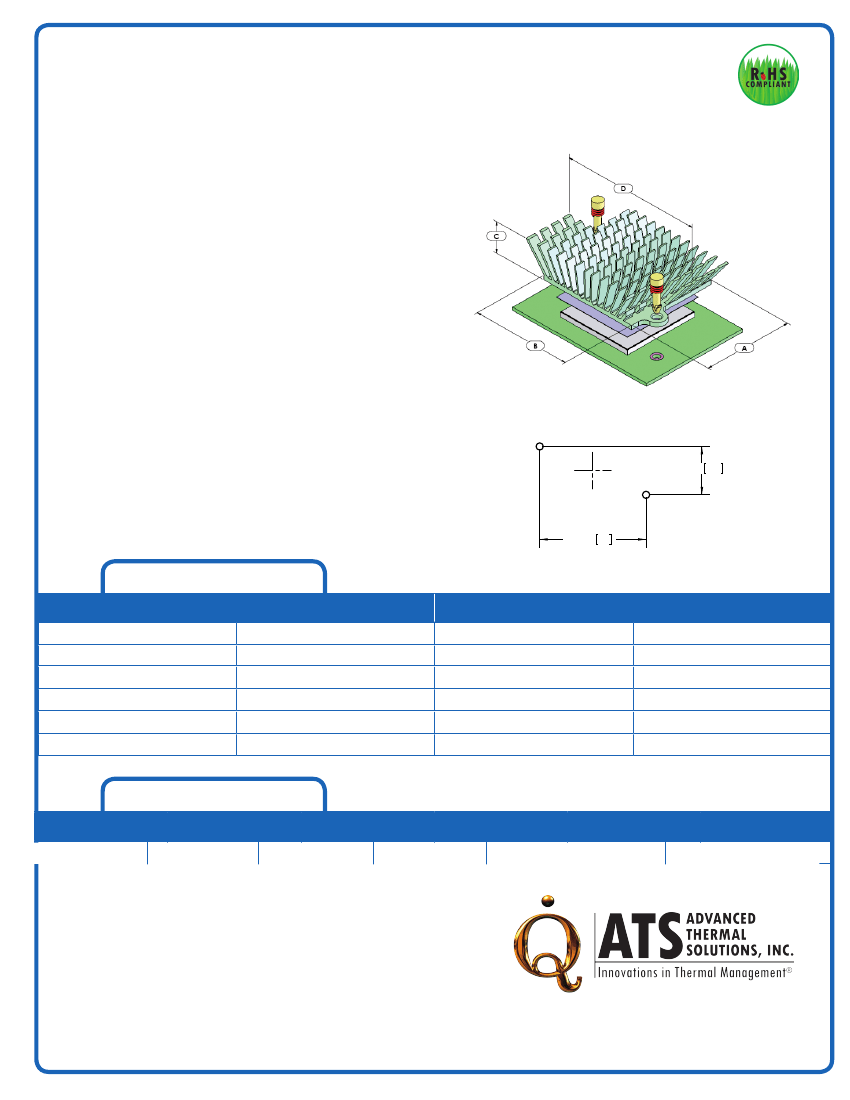

maxiFLOW
TM
Cross Cut
High Performance Heat Sinks
with Plastic Push Pin
ATS PART # ATS-1042-C1-R0
Features & Benefits
»
For larger heat sinks and higher pre-loads, push pins with
compression springs are an effective mounting choice. The
push pin has a flexible barb at the end that is designed to
engage with a pre-drilled hole in a PWB. The compression
spring adds the necessary force to hold the assembly together.
Provides better thermal performance than comparable size
straight fin and pin fin heat sinks.
Features proven high performance maxiFLOW™ heat sink spread fin array to
maximize cooling surfaces.
Ideal for tight spaced components where wider heat sinks can’t be used.
Provided with pre-assembled thermal interface material centered on base.
Nylon pushpin with steel compression spring.
Reccomended through hole size in PCB is 3.00 mm.
50.8
2.0
20.02 .788
»
»
»
»
»
HOLE PATTERN B
Thermal Performance
AIR VELOCITy
*Image above is for illustration purposes only.
THERMAL RESISTANCE (
°
C/w UNDUCTED)
FT/MIN
200
300
400
500
600
M/S
1.0
1.5
2.0
2.5
3.0
AIR FLOW STRAIGHT
3.3
2.5
2.0
1.8
1.7
AIR FLOW SIDEWAYS
5.6
4.3
3.4
2.6
2.2
Product Details
DIMENSION A
A
DIMENSION B DIMENSION C
DIMENSION D
INTERFACE MATERIAL
INTERFACE MATERIAL
DIMENSION
DIMENSION B
DIMENSION C
DIMENSION D
FINISH
FINISH
41 mm
NotEs:
1)
2)
3)
4)
45 mm
15 mm
64 mm
CHOMERICS T766
GREEN ANODIZED
Dimension
C = heat sink height from bottom of the base to the top of the fin field.
Thermal performance data are provided for reference only. Actual performance may vary
by application.
ATS reserves the right to update or change its products without notice to improve the
design or performance.
Contact ATS to learn about custom options available.
For more information, to find a distributor or to place an order, visit www.Qats.com or
call: 781.769.2800 (North America); +31 (0) 3569 84715 (Europe).
