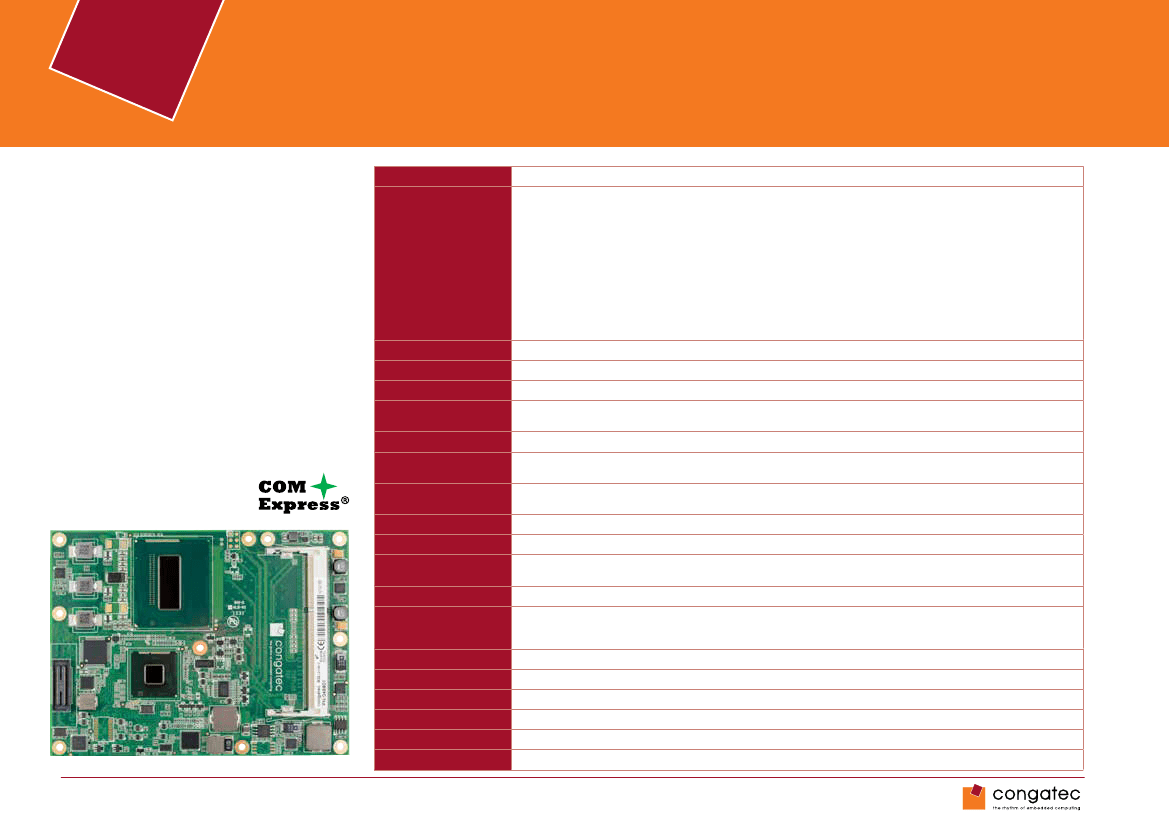

conga-TS87 - COM Express
®
Type 6 module
conga-TS87
COM Express Type 6 pinout Basic form factor
4th Gen. Intel® Core® i7 processor up to 2.4 GHz
3x DisplayPort 1.2, up to 4k resolution
(QFHD=3840x2160@60Hz)
Up to 13% higher computing performance*
Up to 32% higher 3D graphics performance*
*compared to previous generation
Formfactor
CPU
Formfactor COM Express™ Basic, (95 x 125 mm), Type 6 Connector Layout
Intel
®
Core™ i7-4700EQ Quad Core, 2.4 GHz, Turbo Boost 3.4 GHz, 6M Cache, TDP 47W (configurable to 1.7 GHz / 37W), AVX2, AES-NI, AMT 9.0, TXT
Intel
®
Core™ i5-4400E Dual Core, 2.7 GHz, Turbo Boost 3.3 GHz, 3M Cache, TDP 37W, AVX2, AES-NI, AMT 9.0, TXT
Intel
®
Core™ i5-4402E Dual Core, 1.6 GHz, Turbo Boost 2.7 GHz, 3M Cache, TDP 25W, AVX2, AES-NI, AMT 9.0, TXT
Intel
®
Core™ i3-4100E Dual Core, 2.4 GHz, 3M Cache, TDP 37W, AES-NI
Intel
®
Core™ i3-4102E Dual Core, 1.6 GHz, 3M Cache, TDP 25W, AES-NI
Intel® Celeron™ 2000E Dual Core, 2.2 GHz, 2MB L3 cache, 37W
Intel® Celeron™ 2002E Dual Core, 1.56GHz, 2MB L3 cache, 25W
Intel® Turbo Boost Technology, Intel® Hyper-Threading Technology (Intel® HT Technology), Intel® Advanced Vector Extensions 2.0 (Intel® AVX2),
Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI), Integrated dual channel memory controller, up to 25.6 GByte/sec. memory
bandwidth, Intel® HD graphics with dynamic frequency up to 1GHz, Intel ® Clear Video HD Technology
Intel® Virtualization Technology (Intel® VT), Intel® Trusted Execution Technology (Intel® TXT), Intel® Streaming SIMD Extensions 4.2 (Intel® SSE4.2),
PCLMULQDQ Instruction, Intel® Secure Key, Intel® Transactional Synchronization Extensions (Intel® TSX)
DRAM
Chipset
Ethernet
I/O Interfaces
Sound
Graphics
LVDS
Digital Display Interface (DDI)
CRT Interface
congatec Board Controller
Embedded BIOS Features
Security
2 Sockets, SO-DIMM DDR3L@1.35V up to 1600MT/s and 16GByte
Mobile Intel® 8 Series Chipset: Intel® QM87 for Intel
®
Core™ processors / HM86 @ planned Celeron variants
Intel® I218-LM GbE LAN Controller with AMT 9.0 support
7x PCI Express™ GEN. 2.0 lanes, 1x PEG GEN 3.0 (8GT/s), 4x Serial ATA® 6 Gb/s, RAID 0/1/5/10 support,
2x ExpressCard®, 4x USB 3.0 (XHCI), 8x USB 2.0 (EHCI), LPC bus, I²C bus (fast mode, 400 kHz, multi-master)
Digital High Definition Audio Interface with support for multiple audio codecs
Next Generation Intel® HD Graphics with OpenCL 1.2, OpenGL 4.0 and DirectX11.1 support; up to three independent displays: HDMI 1.4, DVI, DP,
VGA; High performance hardware MPEG-2 decoding, WMV9 (VC-1) and H.264 (AVC) support Blu-ray support @ 40 MBit/s
Dual channel LVDS transmitter, Supports flat panels 2x24 Bit interface, VESA mappings, resolutions up to 1920x1200, Automatic Panel Detection via
EDID/EPI
3x TMDS (DVI, HDMI) / DisplayPort 1.2a with daisy chaining, resolutions up to 4k
350 MHz RAMDAC, resolutions up to QXGA (2048x1536 @75Hz)
Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board Information, Board Statistics, BIOS Setup Data Backup, I²C bus (fast
mode, 400 kHz, multi-master), Power Loss Control
AMI Aptio® UEFI 2.x firmware, 8 MByte serial SPI firmware flash
The conga-TS87 can be optionally equipped with a discrete ”Trusted Platform Module” (TPM). It is capable of calculating efficient hash and RSA
algorithms with key lengths up to 2,048 bits and includes a real random number generator. Security sensitive applications such as gaming and e
commerce will benefit also with improved authentication, integrity and confidence levels.
ACPI 4.0 with battery support
Microsoft® Windows 8, Microsoft® Windows 7, Linux, Microsoft® Windows® embedded Standard
Typ. application: tbd., see manual for full details, CMOS Battery Backup
Operating: 0 .. +60°C Storage: -20 .. +80°C
Operating: 10 - 90% r. H. non cond. Storage: 5 - 95% r. H. non cond.
95 x 125 mm (3.74” x 4.92”)
Power Management
Operating Systems
Power Consumption
Temperature:
Humidity Operating:
Size
congatec AG, Auwiesenstraße 5, 94469 Deggendorf, Germany
Phone +49 (991) 2700-0, Fax +49 (991) 2700-111, info@congatec.com
w w w.congatec.com

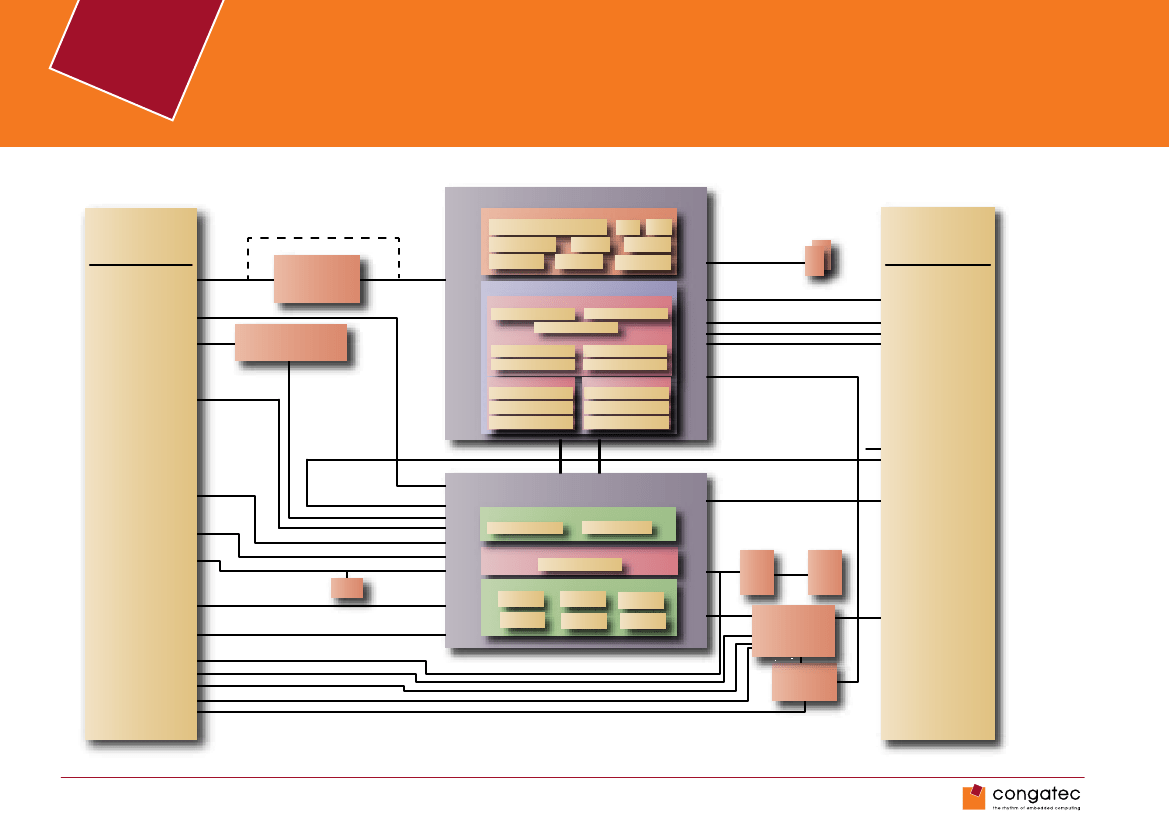

conga-TS87 - Order information
Article
conga-TS87/I3-4100E
conga-TS87/I3-4102E
conga-TS87/I5-4400E
conga-TS87/I5-4402E
conga-TS87/I7-4700EQ
conga-TS87/2000E
conga-TS87/2002E
conga-TS87/CSA-FP-B
conga-TS87/CSA-FP-T
conga-TS87/CSP-FP-B
conga-TS87/CSP-FP-T
conga-TS87/HSP-FP-B
conga-TS87/HSP-FP-T
DDR3L-SODIMM-1600 (2GB)
DDR3L-SODIMM-1600 (4GB)
DDR3L-SODIMM-1600 (8GB)
PN
046808
046807
046806
046805
046804
046810
046811
046853
046854
046855
046856
046851
046852
068755
068756
068757
Description
COM Express Type 6 Basic module with Intel® Core™ i3-4100E dual core processor with 2.4GHz, 3MB L2 cache and 1600MT/s dual channel DDR3 memory interface.
COM Express Type 6 Basic module with Intel® Core™ i3-4102E dual core processor with 1.6GHz, 3MB L2 cache and 1600MT/s dual channel DDR3 memory interface.
COM Express Type 6 Basic module with Intel® Core™ i5-4400E dual core processor with 2.7GHz, 3MB L2 cache and 1600MT/s dual channel DDR3 memory interface.
COM Express Type 6 Basic module with Intel® Core™ i5-4402E dual core processor with 1.6GHz, 3MB L2 cache and 1600MT/s dual channel DDR3 memory interface.
COM Express Type 6 Basic module with Intel® Core™ i7-4700EQ quad core processor with 2.4GHz, 6MB L2 cache and 1600MT/s dual channel DDR3 memory interface.
COM Express Type 6 Basic module with Intel® Celeron™ 2000E dual core processor with 2.2GHz, 2MB L3 cache and 1600MT/s dual channel DDR3L memory interface.
COM Express Type 6 Basic module with Intel® Celeron™ 2002E dual core processor with 1.56GHz, 2MB L3 cache and 1600MT/s dual channel DDR3L memory interface.
Standard active cooling solution for high performance COM Express Type 6 module conga-TS87 with flat pipes, 15mm fins, 20mm overall heat sink height and integrated 12V fan. All stand-offs are with 2.7mm bore hole.
Standard active cooling solution for high performance COM Express module conga-TS87 with flat pipes, 15mm fins, 20mm overall heat sink height and integrated 12V fan. All stand-offs are M2.5mm threaded.
Standard passive cooling solution for high performance COM Express Type 6 module conga-TS87 with flat pipes, 15mm fins and 20mm overall heat sink height. All stand-offs are with 2.7 mm bore hole.
Standard passive cooling solution for high performance COM Express Type 6 module conga-TS87 with integrated flat pipes, 15mm fins and 20mm overall heat sink height. All stand-offs are M2.5mm threaded.
Standard heatspreader for high performance COM Express Type 6 module conga-TS87 with flat pipes. All stand-offs are with 2.7mm bore hole.
Standard heatspreader for high performance COM Express Type 6 module conga-TS87 with flat pipes. All stand-offs are M2.5mm threaded.
DDR3L SODIMM memory module with 1600 MT/s (PC3L-12800S) and 2GB RAM
DDR3L SODIMM memory module with 1600 MT/s (PC3L-12800S) and 4GB RAM
DDR3L SODIMM memory module with 1600 MT/s (PC3L-12800S) and 8GB RAM
Engineering Tools / Accessories for COM Express
®
conga-TEVAL
conga-LDVI/EPI
COM-Express-carrierboard-Socket-5
COM-Express-carrierboard-Socket-8
065800
011115
400007
400004
Evaluation carrier board for Type 6 COM-Express-modules
LVDS to DVI converter board for digital flat panels with onboard EEPROM
Connector for COM-Express carrier boards, height 5mm, packing unit 4 pieces
Connector for COM-Express carrier boards, height 8mm, packing unit 4 pieces
© 2014 congatec AG. All rights reserved. All data is for information purposes only. Although all the information contained within this document is carefully checked, no guarantee of correctness is implied or expressed. The products may include
software. Use of the software is subject to the terms and conditions set out in the respective owner‘s license agreements, which are avaialable at www.congatec.com and/or upon request. Product names, logos, brands, and other trademarks featured or
referred to within this datasheet, or the congatec website, are the property of their respective trademark holders. These trademark holders are not affiliated with congatec AG, our products, or our website.
Rev. July 30, 2014 BLU
congatec AG, Auwiesenstraße 5, 94469 Deggendorf, Germany
Phone +49 (991) 2700-0, Fax +49 (991) 2700-111, info@congatec.com
w w w.congatec.com
