Surge arrester
3-electrode arrester
B88069X3751B502
EZ0-A230XF
Features
Extremely small size
Fast response time
High current rating
Stable performance over life
Very low capacitance
High insulation resistance
Reliable failsafe device
RoHS-compatible
Electrical specifications
DC spark-over voltage
1) 2) 4)
Applications
Branch exchange (MDF)
Line protection
Station protection
230
±
20
< 600
< 450
< 750
< 600
5
5
5
5
200
>1
< 1.5
< 150
< 0.2
~ 10
~1
~ 80
~1
-40 ... +90
40/ 90/ 21
V
%
V
V
V
V
A
A
kA
kA
A
GΩ
pF
ms
µs
V
A
V
g
°C
Impulse spark-over voltage
4)
at 100 V/µs - for 99 % of measured values
- typical values of distribution
at 1 kV/µs
Service life
10
10
10
10
300
- for 99 % of measured values
- typical values of distribution
50 Hz, 1 s
5)
50 Hz, 1 s
7)
8/20 µs
5)
8/20 µs
6)
10/1000 µs
5)
operations
operations
operations
operations
operations,
alternating polarity
Insulation resistance at 100 V
dc 4)
Capacitance at 1 MHz
4)
DC holdover voltage
3)
at 135 V
dc
/ 1300
Ω
Transverse delay time
3)
Arc voltage at 1 A
Glow to arc transition current
Glow voltage
Weight
Storage temperature
Climatic category (IEC 60068-1)
Marking, blue negative
Q
UICK
T
EL
YY 3R230
3R
230
YY
- Series (customer specific)
- Nominal voltage
- Year of production
KB AB E / KB AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 4
Issue 03 / 2007-05-15
Surge arrester
3-electrode arrester
B88069X3751B502
EZ0-A230XF
1)
2)
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
3)
Test according to ITU-T Rec. K.12
4)
Tip or ring electrode to center electrode
5)
Total current through center electrode, half value through
tip respectively ring electrode.
6)
5 operations ring to center electrode & 5 operations tip to center electrode
7)
Total current through center electrode, same value through
tip respectively ring electrode.
Terms in accordance with ITU-T Rec. K.12 and DIN 57845/VDE0845
Arrester fail safe works at temperatures > 260 °C. The arrester has to be
fixed mechanically, if the arrester is contacted by soldering and if the solder
temperature is less than 260 °C.

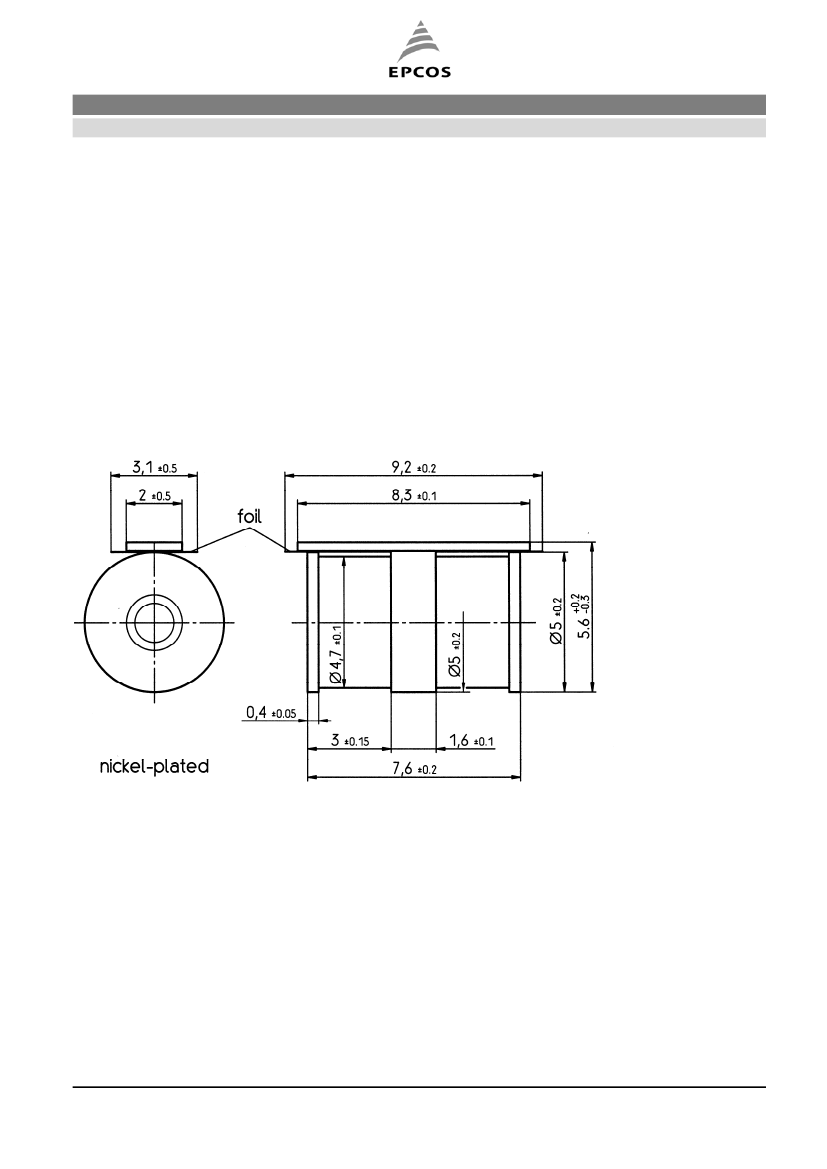

Dimensional drawing
Not to scale
Dimensions in mm
Non controlled document
Cautions and warnings
The short-circuit spring does not trigger until 260 °C is reached depending on the material. Care
must be taken to limit the thermal radiation onto adjacent parts to safe values.
Depending on the incorporation position, the surge arrester may have to be additionally secured
by mechanical means.
Surge arresters must not be operated directly in power supply networks.
Surge arresters may become hot in case of longer periods of current stress (danger of burning).
Surge arresters may be used only within their specified values. In case of overload, the head
contacts may fail or the component may be destroyed.
Damaged surge arresters must not be re-used.
Surge arrester with triggered short-circuit mechanisms must not be re-used.
KB AB E / KB AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 4
Issue 03 / 2007-05-15
