FHR 4-2820H
Powertron
•
•
•
•
•
•
Resistances from 0.001Ohm to 0.01Ohms
Power Rating to 10Watt
Resistance Tolerances to ±1%
TCR to ±30ppm/K
Load Stability to 0.5%
Customized Resistance Values
SPECIFICATIONS
Type
Resistance Range
Power rating
free air 70°C
with heatsink
Tolerances
Thermal Resistance
Stability
Temerature Coefficient
Insolation Resistance
max. Current
Thermal EMF
Operating Temperature Range
Resistor Material
Substrate
Connector Material
Terminals
FHR 4-2820H
0.001 to 0.01 Ohms
Other values upon request
3W
10 W
1% / 5%
Other tolerances upon request
8.0 K/W
0.5%
±30ppm/K (20 to 60°C)
50 VDC
100 A
< 0.1µV/K
-40 to 130°C
CuNiMn-Foil
anodized aluminium
Cu / tinned
4

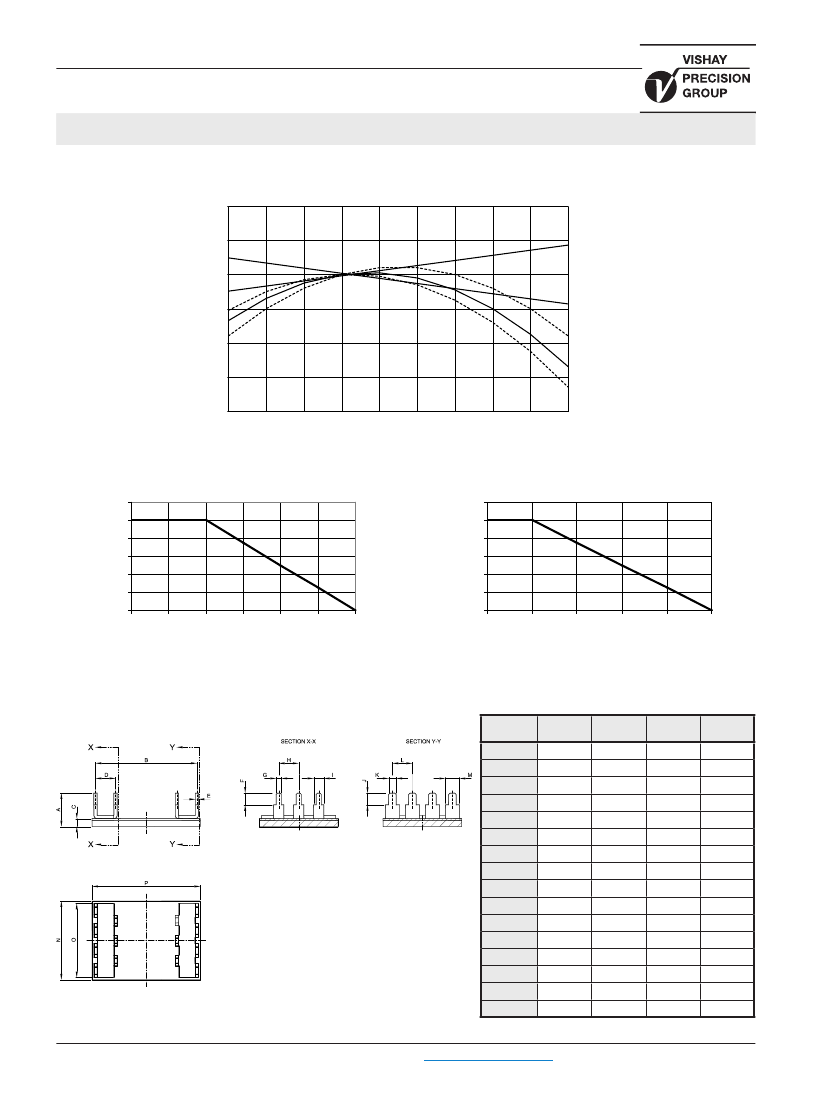

Ordering Information
Part Number - Resistance - Tolerance
FHR 4-2820H 0.01 Ohms 1%
Document Number: 64203
Revision: 20-09-10
For technical questions, contact:
powertron@vishaypg.com
www.powertron.de
1
