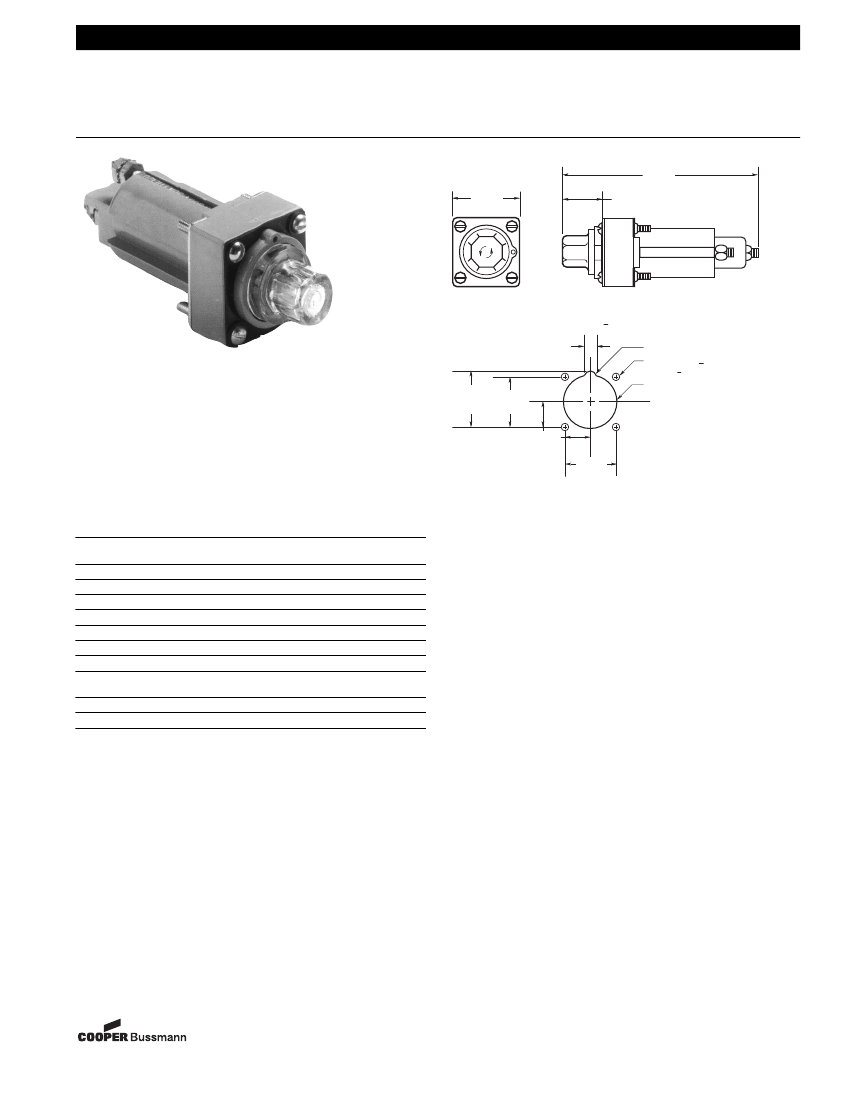

Bussmann
®
Military Fuseholders
Panel Mount-Lamp Indicating
Dimensional Data
4.125"
(106.4mm)
FHL12U
HGC
1.38"
(34.9mm)
0.81"
(20.6mm)
DRILLED MOUNTING HOLE
DIMENSIONAL TOLERANCE + 0.005"
(0.13 mm)
0.281"
(7.1mm)
1.45" RAD.
(36.8mm)
0.156" DIA. + 0.002"
(4.0mm + 0.05mm)
1.14" DIA.
CATALOG SYMBOL: FHL12U
LAMP INDICATING
MEETS MILITARY SPECIFICATION - MIL-F-19207/3
NO AGENCY LISTINGS
FOR MILITARY 13/32” x 1-1/2” FUSES:
F60, F07, & F09 SERIES
COMMERCIAL EQUIVALENT:
HGC
Specifications
Knob
Terminals
Enclosure
Panel Thickness
Rating
Resistor
Body Material
Mechanical
Shock
Terminal Strength
Torque
Clear transparent bayonet type (fuses mount in fuse
clips of a fuse carrier)
Threaded stud type; tooth lockwashers and hex nuts.
Unsealed—(FHL12U) IAW MIL-STD-108.
0.125 Max.
30 amperes. 90—500 volts.
330,000 ohms.
Grey; meets MIL-M-14; fire retardant IAW MIL-STD-454.
MIL-STD-202. Method 207. Method 1
20 lbs.
15 lbs.-inch.
1.230"
(31.2mm)
1.062"
(27.0mm)
(29.0mm)
0.531"
(13.5mm)
1.062"
(27.0mm)
Qualified and tested to MIL-F-19207. Group A, B and C.
The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this BIF document are by definition uncontrolled. This bulletin is intended to
clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any
products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been select-
ed, it should be tested by the user in all possible applications.
12-17-98
SB98107
Rev. A
Form No. FHL12U
Page 1 of 1
BIF Doc #2135
