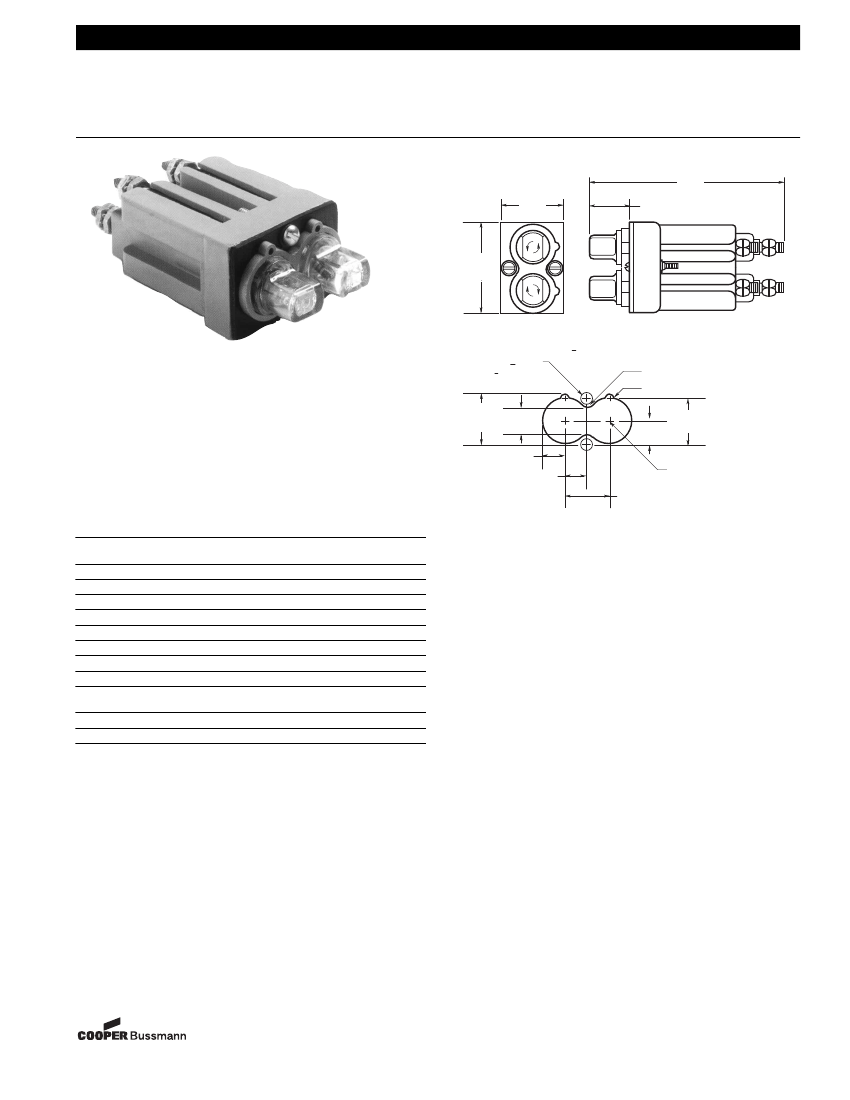

Bussmann
®
Military Fuseholders
Panel Mount-Lamp Indicating
Dimensional Data
FHL10U
HGA-C
3.88"
(98.4mm)
1.19"
(30.2mm)
.81"
(20.6mm)
1.81"
(46.0mm)
Drilled Mounting Hole
Dimensional Tolerance + 0.005"
(0.13 mm)
.109" RAD.
.156" DIA. + .002"
(4.0mm + .05mm)
(2.8mm)
.105" RAD.
CATALOG SYMBOL: FHL10U
LAMP INDICATING
MEETS MILITARY SPECIFICATION - MIL-F-19207/1
NO AGENCY LISTINGS
FOR MILITARY 1/4” x 1-1/4” FUSES:
F02 AND F03 SERIE
COMMERCIAL EQUIVALENT: HGA-C
Specifications
Knob
Terminals
Enclosure
Panel Thickness
Rating
Resistor
Body Material
Fuse
Mechanical
Shock
Terminal Strength
Torque
Clear transparent bayonet type (fuses mount in fuse
clips of a fuse carrier)
Threaded stud type; tooth lockwashers and hex nuts.
Unsealed—(FHL10U) IAW MIL-STD-108.
0.125 Max.
30 amperes. 90—250 volts.
120,000 ohms.
Grey; meets MIL-M-14; fire retardent IAW MIL-STD-454.
Style MIL-F-15160 F02, F03 and MIL-F-23419/9 FM09.
MIL-STD-202. Method I.
20 lbs.
15 lbs.-inch.
(2.67mm)
.974"
(24.7mm)
.516"
(13.1mm)
.938"
.469"
(23.8mm)
(11.9mm)
.433"
(11.0mm)
.400"
(10.2mm)
.437" RAD.
(11.0mm)
.800"
(20.3mm)
Qualified and tested per MIL-F-19207. Group A, B and C.
The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this BIF document are by definition uncontrolled. This bulletin is intended to
clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any
products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been select-
ed, it should be tested by the user in all possible applications.
12-17-98
SB98107
Rev. A
Form No. FHL10U
Page 1 of 1
BIF Doc #2134
