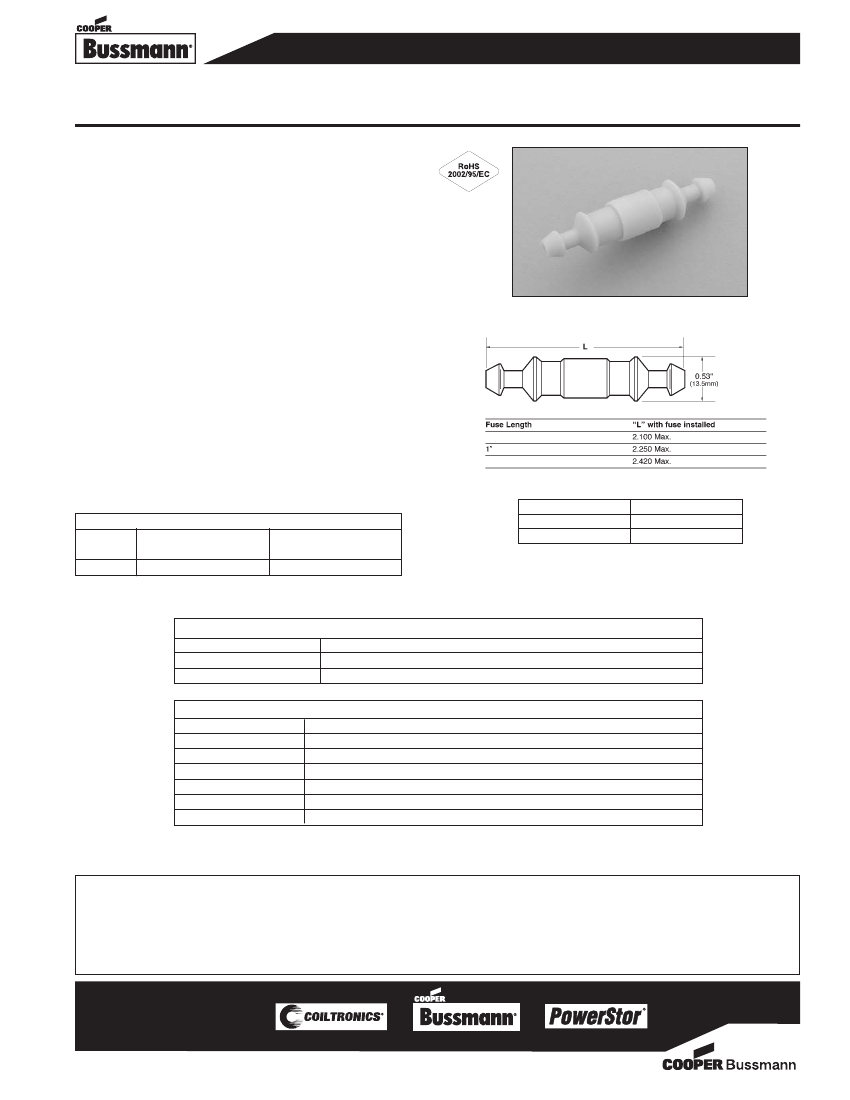

1
⁄
4
˝ x
7
⁄
8
˝ to 1
1
⁄
4
˝ In-Line Fuse Holders
HHB Series
Description
• For
1
⁄
4
" x
7
⁄
8
" to
1
⁄
4
" x 1
1
⁄
4
" fuses
• Accepts #16 to #12 AWG copper wire
• Simple crimp assembly
• “Snap-Lock” feature provides strong positive union
• High visibility yellow color
• Recommended crimp tools:
• Thomas & Betts – ERG-2001
• Channelock No. 909
• General Electric – U.S. & Metric Electrical
Terminal Tool
• UL flammability rating 94 V2
Environmental Data
• Pull Force: 5 pounds minimum to separate
fuseholder housing with fuse inside
Ordering
Specify packaging code
• Insert packaging code prefix before part number.
E.g. BK/HHB-R
Specify option codes if desired
• Drop “-R” suffix when ordering. E.g. BK/HHB-Y408
Dimensions - in (mm)
Drawing Not to Scale
7 8
˝
/
1
1
/
4
˝
Specifications
Part
Number
HHB-R*
Volts
32
Amps
30 max
Component
Body
Crimp
Material
Nylon
Copper Tin-Plated
*RoHS compliant construction.
Packaging Code
Packaging Code Prefix
Blank
BK
Description
10 fuse holders packed into a carton
1,000 fuse holders packed into a cardboard shelf package
Option Code
Option Code
Y408**
†
R408
†
B408**
†
Y419**
†
R419**
†
B419**
†
Description
#14 AWG insulated wire with 8 inch yellow leads
#14 AWG insulated wire with 8 inch red leads
#14 AWG insulated wire with 8 inch black leads
#14 AWG insulated wire with 19 inch yellow leads
#14 AWG insulated wire with 19 inch red leads
#14 AWG insulated wire with 19 inch black leads
**Not available in RoHS compliant construction.
† Drop “-R” suffix when ordering these options.
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained
in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life support
systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in
significant injury to the user.
© 2009 Cooper Bussmann
St. Louis, MO 63178
www.cooperbussmann.com
0509
BU-SB09721
Page 1 of 1
Data Sheet 2103
