FRS-R-45: Descriptionindustrial & electrical fuses 600v 45a dual elemtent time delay; CategoryCircuit protection; File Size364KB，2 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric Compare View All

FRS-R-45 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FRS-R-45	-	-	View	Buy Now

FRS-R-45 Overview

industrial & electrical fuses 600v 45a dual elemtent time delay

FRS-R-45 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Industrial & Electrical Fuses
RoHS	N
Body Style	Cartridge Fuses
Current Rating	45 A
Voltage Rating AC	600 V
Mounting Style	Holde
Termination Style	Cli
Fuse Type	Time Delay / Slow Blow
Fuse Size / Grou	Class RK5
Indicator Style	Without Indic
Dimensions	5.5 in L x 1.06 in D
Case Diamete	1.06 i
Case Length	5.5 i
Interrupt Rating	200 kA
Packaging	Bulk
Produc	Industrial Power Fuses
Factory Pack Quantity	10
Type	General
Unit Weigh	136.078 g

Preview

Download Datasheet

View All

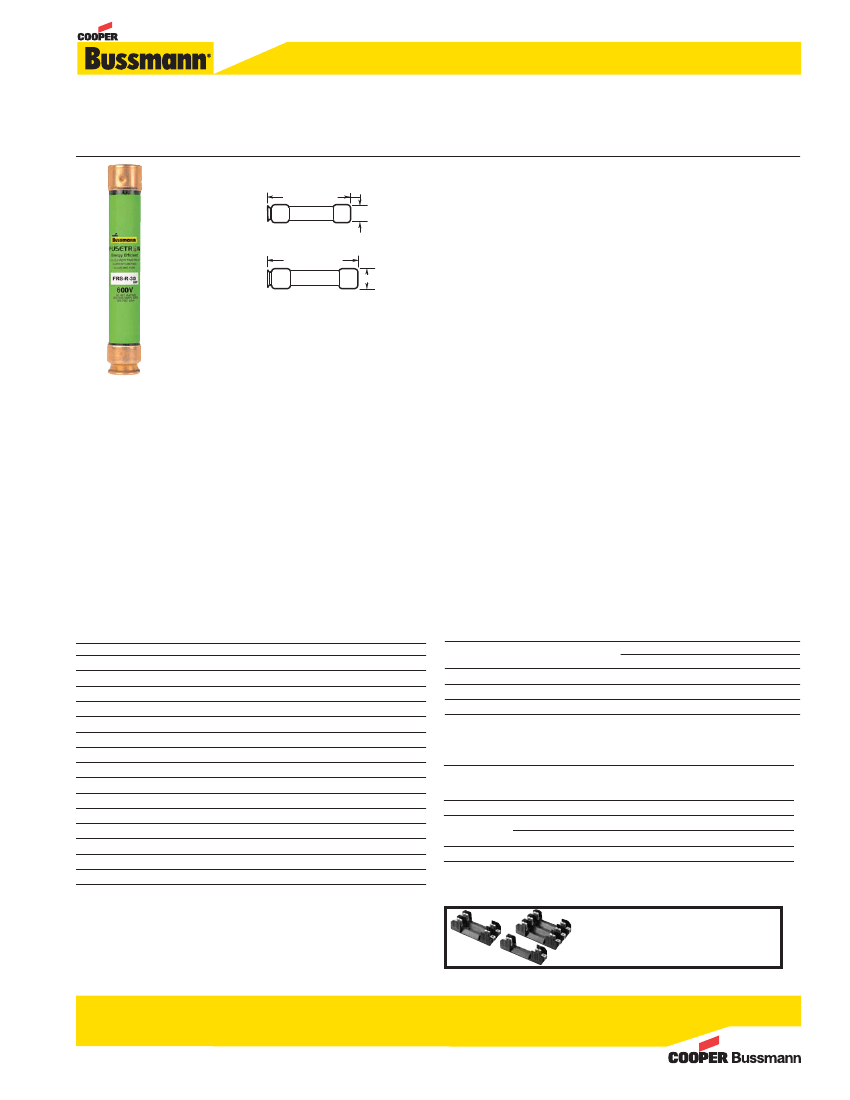

F

USETRON

Energy Efficient

Dual-Element, Time-Delay Fuses

Class RK5 – 600 Volt

Dimensions - in

5" (± 0.031)

.81" (± 0.008)

⁄/¡ºA

to 30A

FRS-R

1

⁄

10

-60A

5.5" (± 0.31)

1.06" (± 0.008)

35A to 60A

Catalog Symbol:

FRS-R

Current-limiting

Dual-element, time-delay – 10 second (minimum) at 500%

rated current

Ratings:

Volts – 600Vac (or less)

Amps –

1

⁄

10

-30A

IR – 200kA RMS Sym.

– 20kA @300Vdc

Amps – 35-60A

IR – 200kA RMS Sym.

– 20kA @250Vdc

Agency Information:

CE, UL Listed, Std. 248-12, Class RK5, Guide JDDZ, File E4273

CSA Certified, C22.2 No. 248.12, Class 1422-02, File 53787

Catalog Numbers

FRS-R-

1

⁄

10

FRS-R-

1

⁄

8

FRS-R- ⁄

100

15

2

1

General Information:

• Provides motor overload, ground fault and short-circuit

protection. When used in circuits subject to surge currents

such as those caused by motors, transformers and other

inductive components, these fuses can be sized close to

full-load amps to give maximum overcurrent protection.

• Permits the use of smaller and less costly switches. The

time-delay feature makes it possible to use fuse amp ratings

which are much smaller than those of non-time-delay fuses.

Considerable cost saving occurs by permitting the use of

smaller size switches, panels and fuses themselves.

• Provides a higher degree of short-circuit protection (greater

current-limitation) in circuits in which surge currents or

temporary overloads occur.

• Helps protect motors against burnout from overloads.

• Gives motor running back-up protection to motors without

extra costs.

• Helps protect motors against burnout from single phasing on

three phase systems.

• Simplifies and improves blackout prevention (selective

coordination).

• Dual-element fuses can be applied in circuits subject to

temporary motor overloads and surge currents to provide

both high-performance, short-circuit and overload protection.

• The overload element provides protection against low level

overcurrent of overloads and will hold an overload which is

five times greater than the amp rating of the fuse for a

minimum of ten seconds.

Carton Quantity and Weight

FRS-R-1

8

⁄

10

FRS-R-2

FRS-R-2 ⁄

4

1

8

FRS-R-8

FRS-R-9

FRS-R-10

FRS-R-12

FRS-R-15

FRS-R-17

1

⁄

2

FRS-R-20

FRS-R-25

FRS-R-30

FRS-R-35

FRS-R-40

FRS-R-45

FRS-R-50

FRS-R-60

—

Amp

Ratings

1

Carton

Qty.

10

Weight*

Lbs.

0.40

0.50

3.10

Kg.

0.181

0.277

1.406

⁄

10

–15

1

FRS-R- ⁄

10

FRS-R- ⁄

4

FRS-R-

3

⁄

10

FRS-R-

4

⁄

10

FRS-R- ⁄

2

1

6

8

FRS-R-2 ⁄

2

FRS-R-2 ⁄

10

FRS-R-3

2

⁄

10

FRS-R-3

1

⁄

2

FRS-R-4

FRS-R-4 ⁄

2

1

17 ⁄

2

–30

35-60

*Weight per carton.

Fuse Reducers For Class R Fuses

Equipment

Fuse Clips

60A

100A

200A

Desired

Fuse (Case)

Size

30A

60A

Catalog Number

(Pairs)

600V

No. 663-R

No. 216-R

No. 616-R

No. 626-R

FRS-R- ⁄

10

FRS-R- ⁄

10

FRS-R-1

FRS-R-1 ⁄

8

1

FRS-R-5

FRS-R-5 ⁄

10

6

FRS-R-1

1

⁄

4

FRS-R-1 ⁄

10

4

FRS-R-6

FRS-R-6 ⁄

4

1

FRS-R-1

1

⁄

2

FRS-R-1

6

⁄

10

FRS-R-7

1

⁄

2

Recommended fuseblocks for

Class R 600V fuses

See Data Sheet: 1111

1111

BU-SB11279

Page 1 of 2

Data Sheet 1017

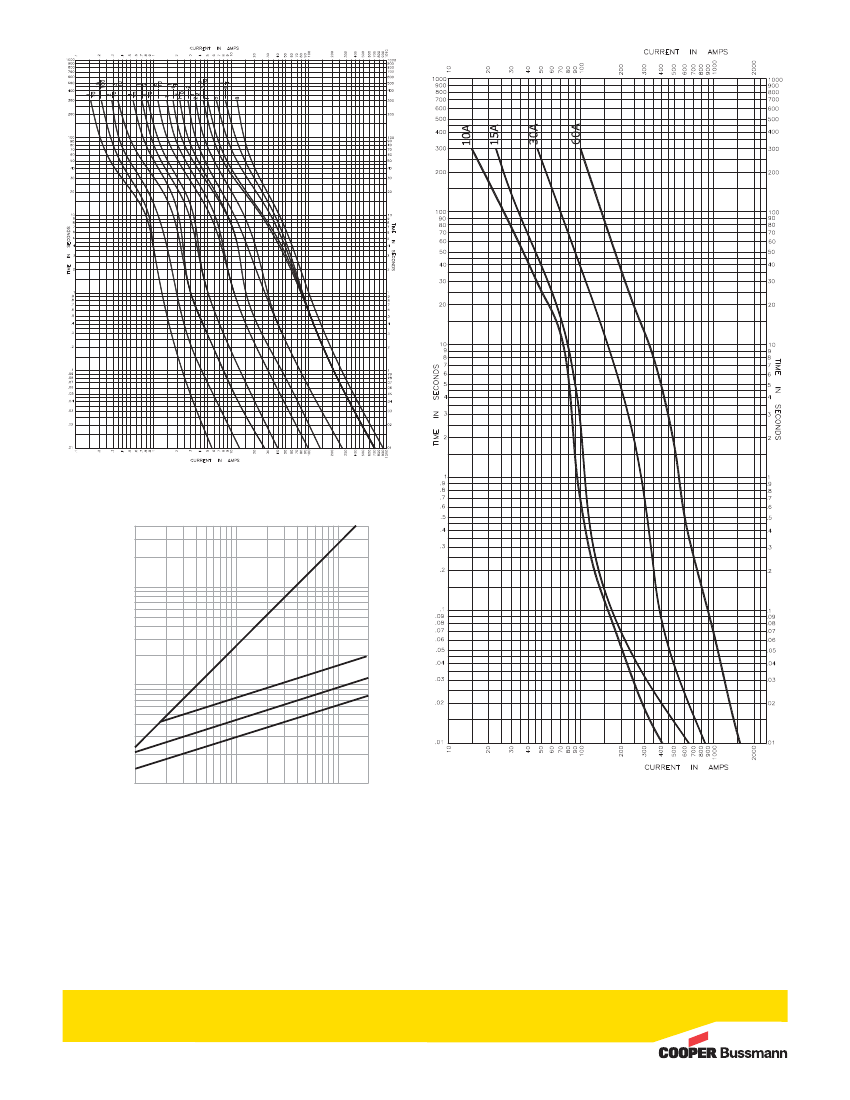

FRS-R-45 Related Products

	FRS-R-45	FRS-R-3-1/2	FRS-R-8	FRS-R-10	FRS-R-7	FRS-R-30	FRS-R-35	FRS-R-5	FRS-R-2
Description	industrial & electrical fuses 600v 45a dual elemtent time delay	industrial & electrical fuses 600v 3.5A dual elemtent time delay	industrial & electrical fuses 600v 8A dual elemtent time delay	industrial & electrical fuses 600v 10a dual elemtent time delay	industrial & electrical fuses 600v 7A dual elemtent time delay	industrial & electrical fuses 600v 30a dual elemtent time delay	industrial & electrical fuses 600v 35a dual elemtent time delay	industrial & electrical fuses 600v 5A dual elemtent time delay	industrial & electrical fuses 600v 2A dual elemtent time delay
Manufacture	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm
Product Category	Industrial & Electrical Fuses	Industrial & Electrical Fuses	Industrial & Electrical Fuses	Industrial & Electrical Fuses	Industrial & Electrical Fuses	Industrial & Electrical Fuses	Industrial & Electrical Fuses	Industrial & Electrical Fuses	Industrial & Electrical Fuses
RoHS	N	N	N	N	N	N	N	N	N
Body Style	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses
Current Rating	45 A	3.5 A	8 A	10 A	7 A	30 A	35 A	5 A	2 A
Voltage Rating AC	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V
Mounting Style	Holde	Holde	Holde	Holde	Holde	Holde	Holde	Holde	Holde
Termination Style	Cli	Cli	Cli	Cli	Cli	Cli	Cli	Cli	Cli
Fuse Type	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow
Fuse Size / Grou	Class RK5	Class RK5	Class RK5	Class RK5	Class RK5	Class RK5	Class RK5	Class RK5	Class RK5
Indicator Style	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic
Dimensions	5.5 in L x 1.06 in D	5 in L x 0.81 in D	5 in L x 0.81 in D	5 in L x 0.81 in D	5 in L x 0.81 in D	5 in L x 0.81 in D	5.5 in L x 1.06 in D	5 in L x 0.81 in D	5 in L x 0.81 in D
Case Diamete	1.06 i	0.81 i	0.81 i	0.81 i	0.81 i	0.81 i	1.06 i	0.81 i	0.81 i
Case Length	5.5 i	5 i	5 i	5 i	5 i	5 i	5.5 i	5 i	5 i
Interrupt Rating	200 kA	200 kA	200 kA	200 kA	200 kA	200 kA	200 kA	200 kA	200 kA
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Produc	Industrial Power Fuses	Industrial Power Fuses	Industrial Power Fuses	Industrial Power Fuses	Industrial Power Fuses	Industrial Power Fuses	Industrial Power Fuses	Industrial Power Fuses	Industrial Power Fuses
Type	General	Dual Element Time Delay Fuse	General	Dual Element Time Delay Fuse	General	Dual Element Time Delay Fuse	Dual Element Time Delay Fuse	General	General
Unit Weigh	136.078 g	61.235 g	68.039 g	77.111 g	45.359 g	68.039 g	136.078 g	63.503 g	68.039 g
Factory Pack Quantity	10	-	10	10	10	10	10	10	10
