Part Number

Search

BAF-4

Description
industrial & electrical fuses 250vac 200a 4A midget
CategoryCircuit protection
File Size191KB,2 Pages
ManufacturerBussmann (Eaton)
Download Datasheet Parametric Compare View All

BAF-4 Online Shopping

Suppliers Part Number Price MOQ In stock
BAF-4 - - View Buy Now

BAF-4 Overview

industrial & electrical fuses 250vac 200a 4A midget

BAF-4 Parametric

Parameter NameAttribute value
ManufactureCooper Bussm
Product CategoryIndustrial & Electrical Fuses
RoHSN
Body StyleCartridge Fuses
Current Rating4 A
Voltage Rating AC250 V
Mounting StyleHolde
Termination StyleCli
Fuse TypeFast Blow
Fuse Size / Grou5AG Midget (10.3 mm x 38.1 mm)
Indicator StyleWithout Indic
Dimensions38.1 mm L x 10.3 mm D
Case Diamete10.3 mm
Case Length38.1 mm
Interrupt Rating10 kA at 125 V
PackagingBulk
ProducIndustrial Power Fuses
Factory Pack Quantity10
TypeMidget Fuse
Unit Weigh5 g

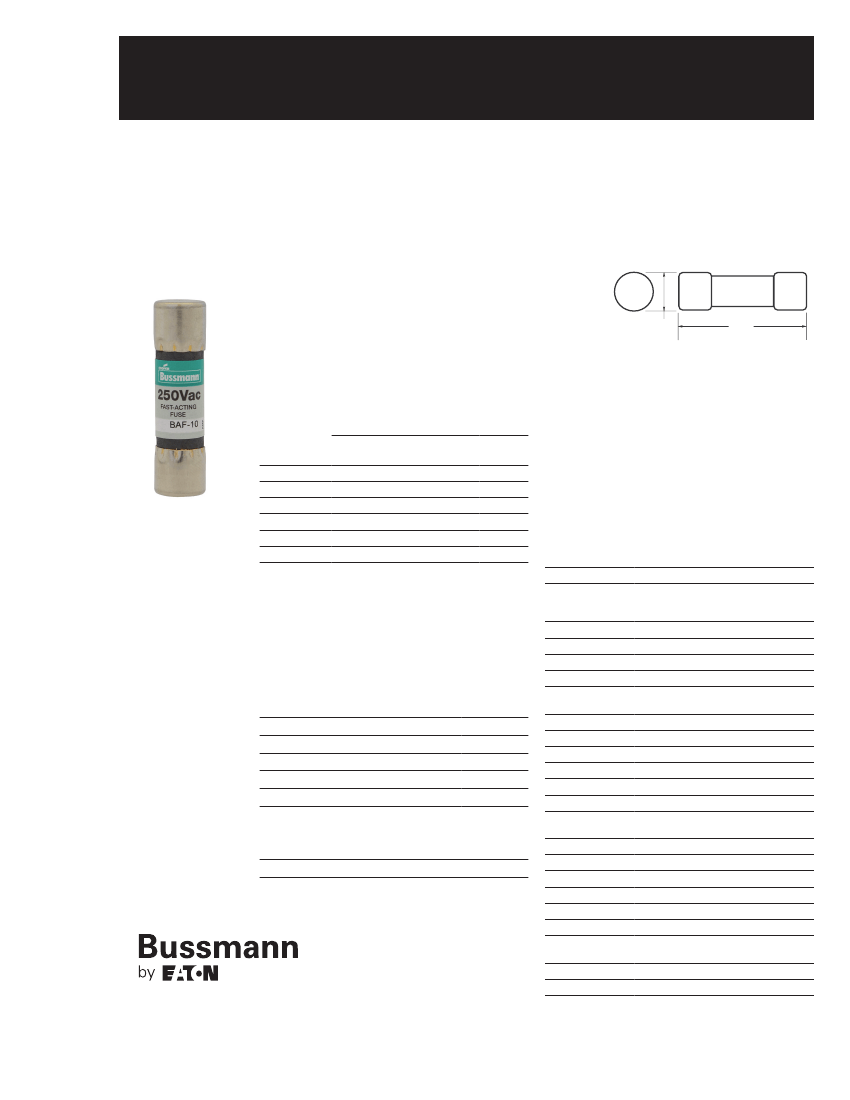

Technical Data 2011
Effective April 2014
Supersedes June 2012
BAF Series
13⁄32˝ x 1-1/2˝ 250Vac Fast-acting supplemental fuses
Description
Fast-acting, supplemental fuse.
For superior protection, Bussmann recommends
upgrading to Low-Peak™ Class CC fuses. See
data sheet # 1023.
Dimensions - in (mm)
Catalog symbol – color code
0.41"
(10.3)
1.5"
(38.1)
BAF - Green (250Vac max 1/4 to 30A)
Features
Ratings
Interrupting Rating
at System Voltage
Fuse Amp
Range
1/4 to 1
1-1/2 to 2-1/2
3
250
Vac
35A
100A
100A
200A
750A
200A
125
Vac
10kA
10kA
10kA
10kA
10kA
10kA
Agency
Information
UL
-
-
X
X
X
-
CSA
X
X
X
X
X
-
Color coded green for 250Vac maximum
voltage rating
Fiber tube construction
Nickel-plated brass endcaps.
Typical applications
General purpose circuits
Lighting circuit protection
Meter circuits
250Vac
1/4 to 30A
4 to 10
12 to 15
20 to 30
Recommended fuse blocks/fuse holders
Series
Description
Blocks
BMM Series
BM Series
CCP-_-30M
CHM Series
1-, 2- & 3-Pole modular
blocks with optional
10235
covers
1-, 2- & 3-Pole blocks
DIN-Rail Holders / Switches
1-, 2- & 3-Pole switch
1-, 2- & 3-Pole
3-Pole protection
module
3-Pole holder
3-Pole holder + switch
Panel Mount Holders
HPM & HPM-D
HPC-D
HPS2
HPF, HPF-C &
HPF-WT
1-Pole holder
1-Pole holder
2-Pole holder
1-Pole holder
1-Pole holder
1-Pole holder
In-line Holders
HEB
HEX
1A3400, 5956 &
5960 Series
SAMI-7
1-Pole holder
2-Pole holder
Fuseclips
PCB Fuseclips
Fuse Covers
Finger-safe fuse cover
1204
2132
2127
2126
2112
2109
2140
2114
2113
2108
1157
3185
1109
1102
1103
1104
Data Sheet #
Agency information
CE
UL Listed, Std. 248-14, 250Vac (3 to 15A)
Guide JDYX, File E19180
CSA Certified, 250Vac (1/4 to 15A)
Class 1422-01, File 53787
Catalog numbers (amps)
BAF-1⁄4
BAF-1⁄2
BAF-6⁄10
BAF-8⁄10
BAF-1
BAF-1-1⁄2
BAF-1-8⁄10 BAF-6
BAF-2
BAF-2-1⁄2
BAF-3
BAF-4
BAF-5
BAF-6-1⁄4
BAF-7
BAF-8
BAF-9
BAF-10
BAF-12
BAF-15
BAF-20
BAF-25
BAF-30

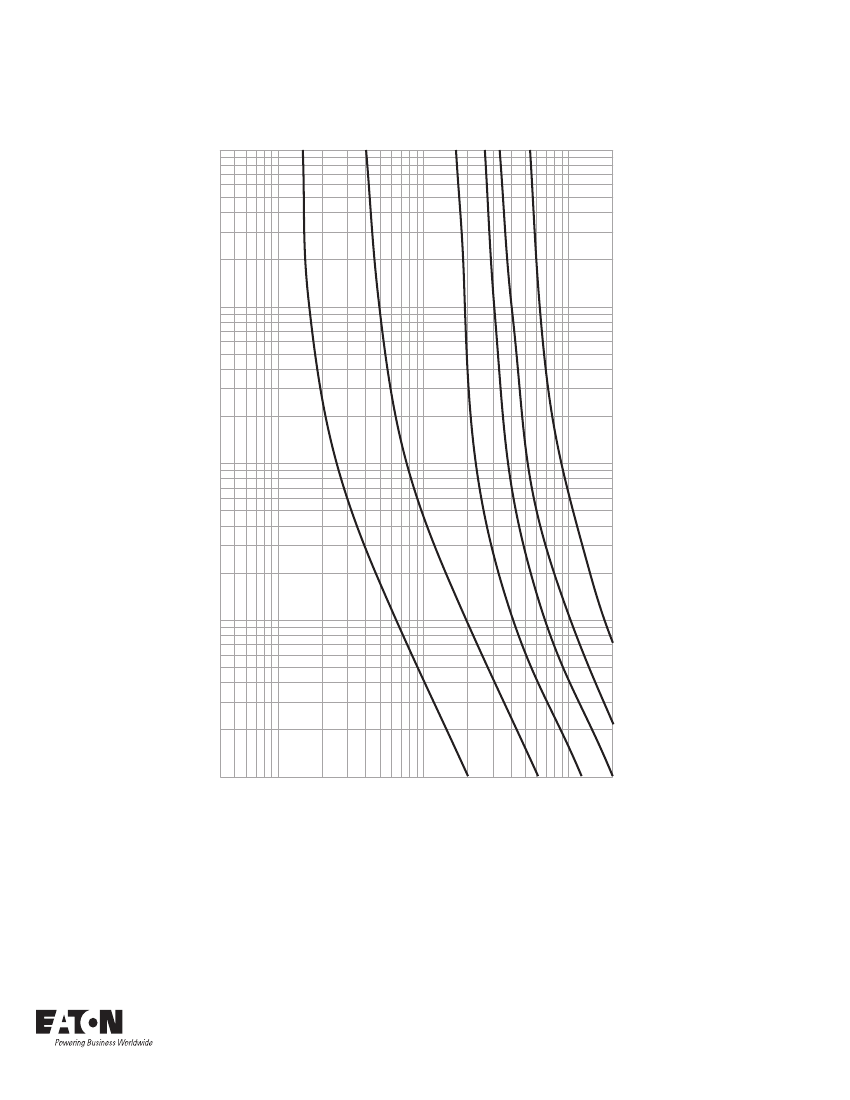

Optima NG
Optima
Optima
Carton quantity
Amps
1/4 to 30
Qty
10
HPS
HPG & HPD

BAF-4 Related Products

BAF-4
Description industrial & electrical fuses 250vac 200a 4A midget
Manufacture Cooper Bussm
Product Category Industrial & Electrical Fuses
RoHS N
Body Style Cartridge Fuses
Current Rating 4 A
Voltage Rating AC 250 V
Mounting Style Holde
Termination Style Cli
Fuse Type Fast Blow
Fuse Size / Grou 5AG Midget (10.3 mm x 38.1 mm)
Indicator Style Without Indic
Dimensions 38.1 mm L x 10.3 mm D
Case Diamete 10.3 mm
Case Length 38.1 mm
Interrupt Rating 10 kA at 125 V
Packaging Bulk
Produc Industrial Power Fuses
Factory Pack Quantity 10
Type Midget Fuse
Unit Weigh 5 g
