HD74LS78AFP datasheet, PDF - EEWORLD Datasheet

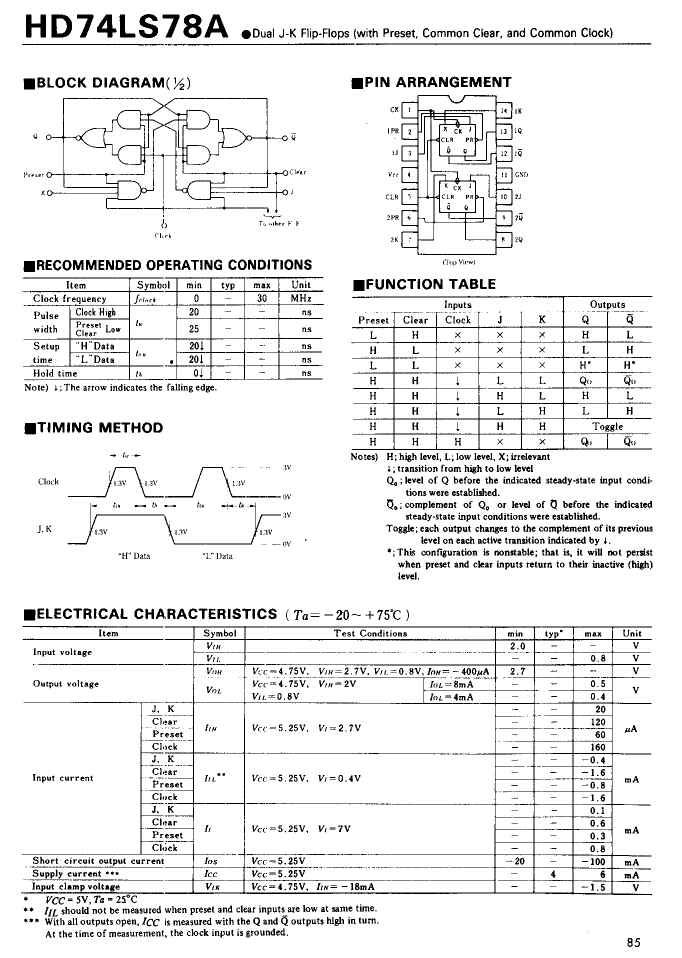

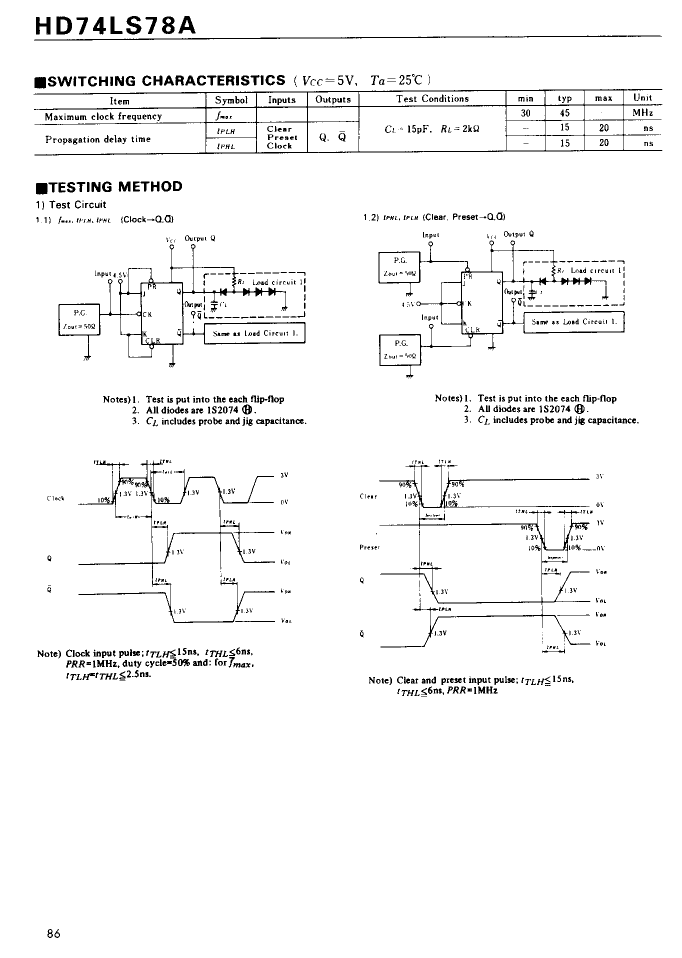

HD74LS78AFP: DescriptionJ-K Flip-Flop, LS Series, 1-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, PDSO14, FP-14DA; Categorylogic logic; File Size71KB，6 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD74LS78AFP Overview

J-K Flip-Flop, LS Series, 1-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, PDSO14, FP-14DA

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	SOIC
package instruction	SOP, SOP14,.3
Contacts	14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDSO-G14
length	10.06 mm
Logic integrated circuit type	J-K FLIP-FLOP
Maximum Frequency@Nom-Sup	30000000 Hz
MaximumI(ol)	0.008 A
Number of digits	2
Number of functions	1
Number of terminals	14
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Maximum supply current (ICC)	6 mA
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum seat height	2.2 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	NEGATIVE EDGE
width	5.5 mm
minfmax	30 MHz
Base Number Matches	1

	HD74LS78AFP	HD74LS78ARP
Description	J-K Flip-Flop, LS Series, 1-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, PDSO14, FP-14DA	J-K Flip-Flop, LS Series, 1-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, PDSO14, FP-14DN
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	SOIC	SOIC
package instruction	SOP, SOP14,.3	SOP, SOP14,.25
Contacts	14	14
Reach Compliance Code	unknown	unknown
series	LS	LS
JESD-30 code	R-PDSO-G14	R-PDSO-G14
length	10.06 mm	8.65 mm
Logic integrated circuit type	J-K FLIP-FLOP	J-K FLIP-FLOP
Maximum Frequency@Nom-Sup	30000000 Hz	30000000 Hz
MaximumI(ol)	0.008 A	0.008 A
Number of digits	2	2
Number of functions	1	1
Number of terminals	14	14
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP14,.3	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
power supply	5 V	5 V
Maximum supply current (ICC)	6 mA	6 mA
propagation delay (tpd)	20 ns	20 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.2 mm	1.75 mm
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE
width	5.5 mm	3.95 mm
minfmax	30 MHz	30 MHz
