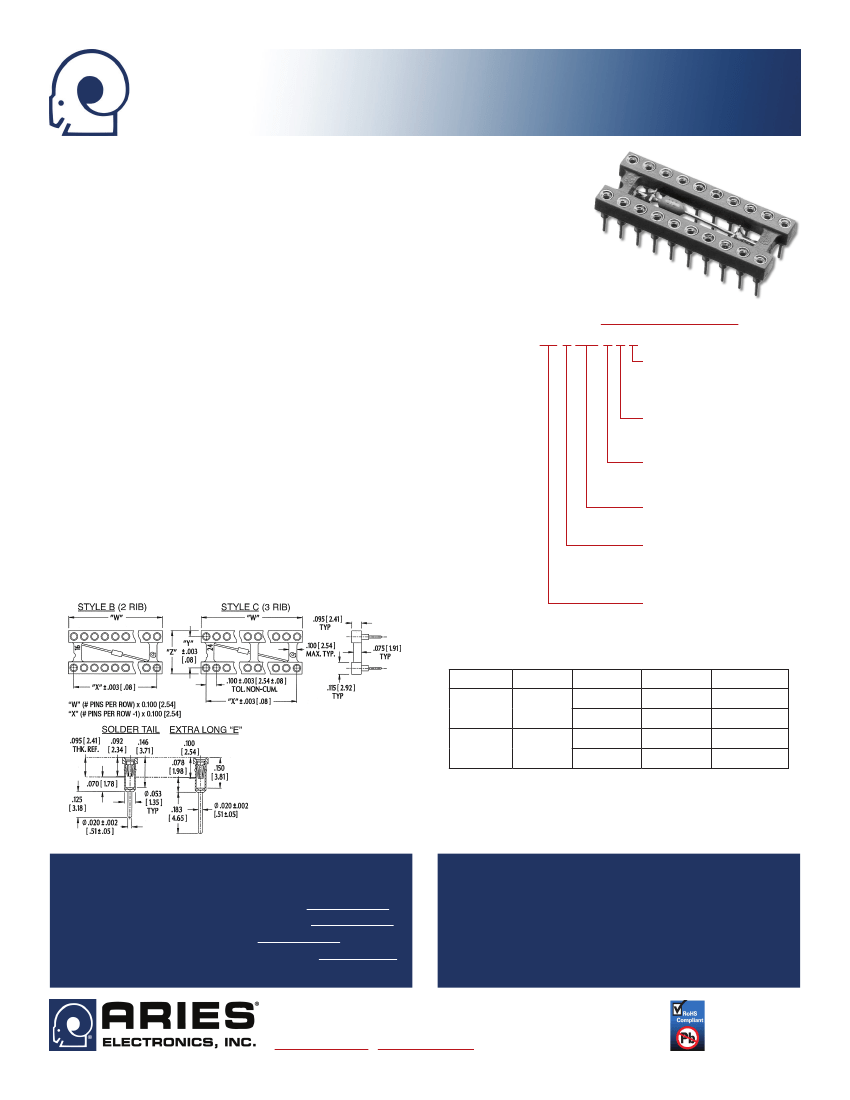

Series 518 Open Frame Capacitor Socket
w/Collet Contacts & Solder Pin Tails
FEATURES
• Capacitor bypasses unwanted electromagnetic noise
• Available with 0.1µF or 0.33µF Capacitor, 50V, Z5U temperature coefficient
• Open frame allows for more efficient utilization of board space and better cooling
• Compatible with Automatic Insertion Equipment
• Side-to-side and End-to-end Stackable
GENERAL SPECIFICATIONS
•
BODY MATERIAL: Blue UL 94V-0 Glass-filled Polyester Thermoplastic (PBT)
•
PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTMB16-85
•
PIN BODY PLATING: 200µ [5.08µ] min. 93/7 Sn/Pb per MIL-P-81728 –OR–
10µ
[0.25µ] min. Au per MIL-G-45204 over 100µ [2.54µ] min. Ni per QQ-N-290
•
4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM-B194-92
•
CONTACT PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 –OR– 150µ [3.81µ] min.
93/7 Sn/Pb per MIL-P-81728 over 50µ [1.27µ] min. Ni per QQ-N-290. Heavy 30µ
[0.76µ] Au plating also available
•
CONTACT CURRENT RATING: 3 amps
•
OPERATING TEMPERATURE: 221°F [105°C] for Sn plating, and 257°F [125°C] for Au
plating
•
INSERTION FORCE: 180g/pin
•
WITHDRAWAL FORCE: 90g/pin
•
NORMAL FORCE: 140g/pin; based on a 0.018 [0.46] dia. test lead
•
ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] in dia.
•
LEAD LENGTHS: from 0.100 [2.54] min.
ORDERING INFORMATION
XX-X 518-X X X
Additional Options
H = Heavy Au on Collet
T = Sn on Collet
E = Extra Long Solder Tail
Capacitor
1 = 0.1µF
2 = 0.33µF
Plating
0 = Au Collet, Sn Shell
1 = Au Collet & Shell
Solder Pin Tail
Series
Row-to-Row Spacing,
“Y” Dim.
3 = 0.300 [7.62]
4 = 0.400 [10.16]
6 = 0.600 [15.24]
No. of Pins
(See Table)
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE: 0.030 ±0.002 [0.76±0.05] dia.
Frame Style
B
C
No. of Ribs
2
3
Centers “Y”
0.300 [7.62]
0.400 [10.16]
0.300 [7.62]
0.600 [15.24]
Dim. “Z”
0.400 [10.16]
0.500 [12.70]
0.400 [10.16]
0.700 [17.78]
No. of Pins
14, 16, 18, 20
20, 22, 24
24, 28
24, 28, 32, 40
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
OPEN FRAME COLLET SOCKET w/WIRE WRAP PINS, SEE DATA SHEET 12016
OPEN FRAME COLLET SOCKET w/SOLDER PIN TAILS, SEE DATA SHEET 12017
OPEN FRAME SURFACE MOUNT SOCKET, SEE DATA SHEET 12018
OPEN FRAME COLLET CAPACITOR SOCKET w/WIRE WRAP, SEE DATA SHEET 12027
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12026
Rev. 1.3
1 of 1
