Printview: 1-conductor female plug; with ground base module (green-yellow); for insertion into carrier
terminal blocks or male connectors; codable; can be commoned with miniature adjacent jumpers; 14-pole -
Item No.: 769-114/000-038
.
1-conductor female plug; with ground base module (green-yellow);
for insertion into carrier terminal blocks or male connectors;
codable; can be commoned with miniature adjacent jumpers; 14-
pole
Item No.: 769-114/000-038
.
1-conductor female plug; with ground base module (green-yellow); for insertion into carrier terminal blocks or male
connectors; codable; can be commoned with miniature adjacent jumpers; 14-pole
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
769-114/000-038
4050821653561
1
10
Item description:According to EN 61984, pluggable connectors without current interrupting capacity shall not be
mated and unmated when live or under load.
Technical data
Miscellaneous
No. of poles
Total number of connection points
Total number of potentials
Color
Ratings according to 1
14
14
14
gray, blue, green-yellow
IEC/EN 61984
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: 1-conductor female plug; with ground base module (green-yellow); for insertion into carrier
terminal blocks or male connectors; codable; can be commoned with miniature adjacent jumpers; 14-pole -
Item No.: 769-114/000-038
Technical data
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Nominal current [A]
Connection technology
Number of connection points
Actuation type
Connectable conductor materials
Nominal cross section
Solid sizes
Fine-stranded wires
Strip length
Type of wiring
Marking level
Insulating material
Fire load [MJ]
Weight [g]
Width
Height
Length
Module width [mm]
Module width [inch] [inch]
500 [V]
6 [kV]
32 [A]
CAGE CLAMP®
1
Betätigungswerkzeug
Kupfer
4 mm²
0.08 … 4 mm² / 28 … 12 AWG
0.08 … 4 mm² / 28 … 12 AWG
8 … 9 mm / 0.31 … 0.35 in
Front-entry wiring
Side marking
Polyamide 66 (PA 66)
0.749 [MJ]
45.342 [g]
70 mm / 2.756 in
45.2 mm / 1.78 in
18.3 mm / 0.72 in
5 [mm]
0.197 [inch]
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: 1-conductor female plug; with ground base module (green-yellow); for insertion into carrier
terminal blocks or male connectors; codable; can be commoned with miniature adjacent jumpers; 14-pole -
Item No.: 769-114/000-038

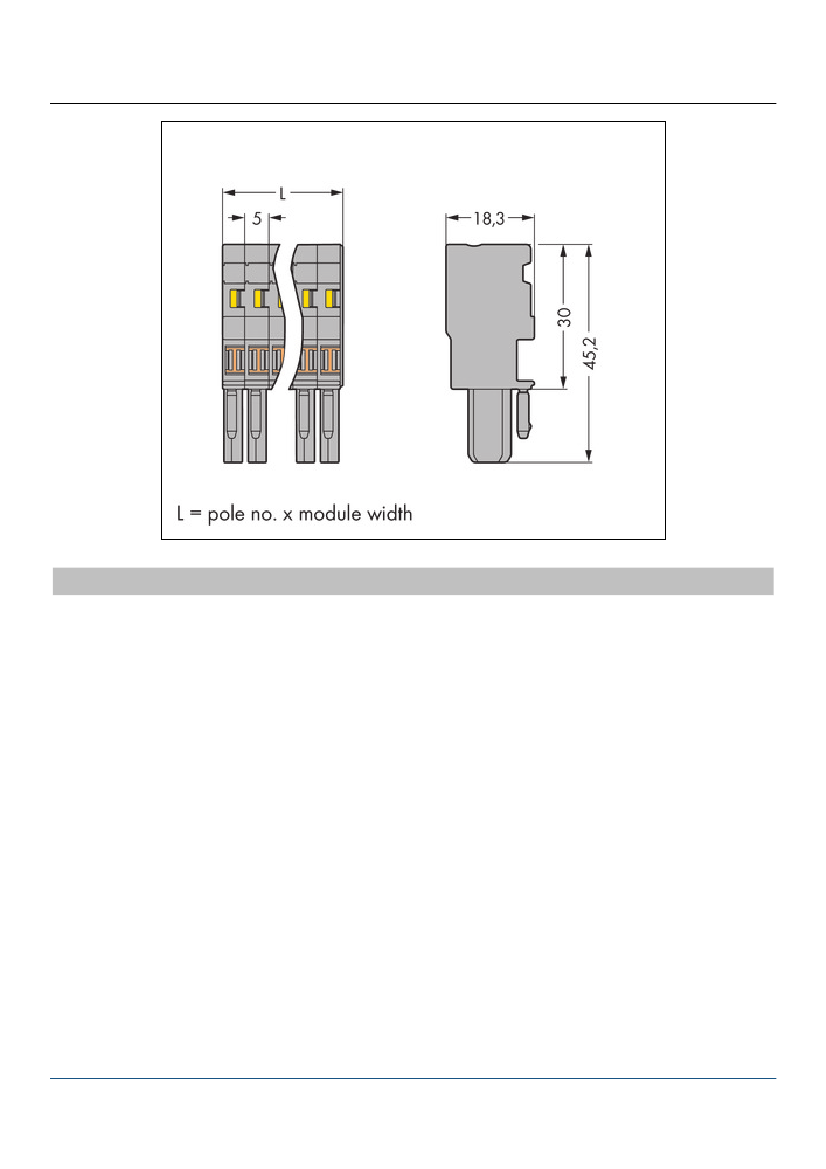

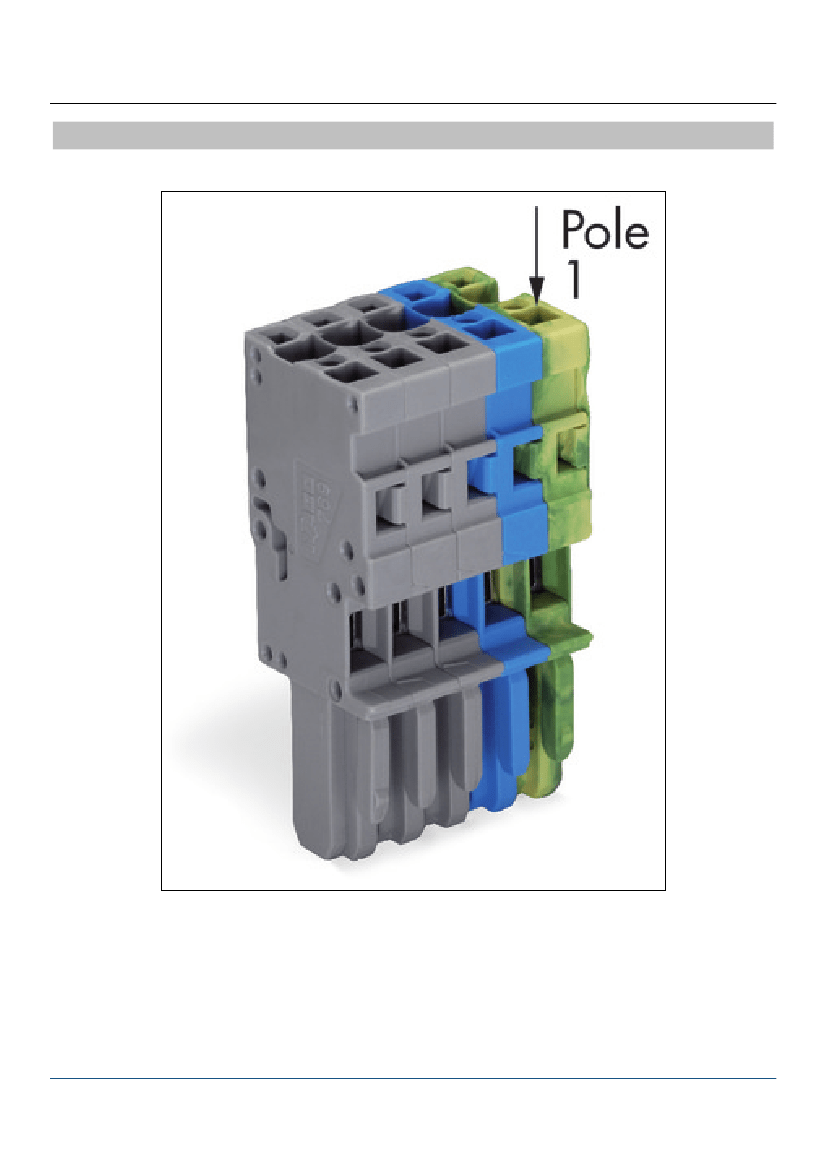

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: 1-conductor female plug; with ground base module (green-yellow); for insertion into carrier
terminal blocks or male connectors; codable; can be commoned with miniature adjacent jumpers; 14-pole -
Item No.: 769-114/000-038
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
