Description
Body
Socket
Insulation
Washer
Gasket
Crimp Ring
Insulator
Cover
Heat Shrink
Material
Brass
Be Cu
PTFE
Ph Bronze
Si Rubber
Brass
PTFE
Brass
Polyolefin
0.051
[1.30]
Finish
Nickel
Gold
N/A
Nickel
N/A
Nickel
N/A
Nickel
Black
0.055
[1.40]
0.287
[7.30]
REVISIONS
REV
B
C
D
DESCRIPTION
Add Heat Shrink to Drawing
Updated dimensions, instructions; Added new title block
Updated cable stripping dimensions
DATE
28-JUL-09
2-JUL-12
24-MAY-16
APPV
CJ
SAH
SAH
0.650
[16.50]
0.331
[8.40]
Ø0.154
[3.90]
0.374
[9.50]
Ø0.185
[4.70]
Ø0.146
[3.70]
CRIMP RING
0.287
[7.30]
1/4-36UNS-2B
THREADS
Ø0.197
[5.00]
0.197
[5.00]
COVER
INSULATOR
BARREL
0.787
[20.00]
Ø0.106
[2.70]
Ø0.260
[6.60]
CONREVSMA012 ASSEMBLY INSTRUCTIONS
1. Strip the cable to the recommended dimensions.
2. Slip heat shrink and crimp ring onto stripped cable.
2. Slide the cable into the body until the center conductor is
centered in the fork.
3. Push the braided shield over the barrel.
4. Solder the center conductor into the center of the fork.
5. Slide the crimp ring over the shield and crimp with a 0.128”
hex crimp tool (or one labeled for use with RG-174 cable).
6. Trim off any excess shield wire sticking out from the ring.
7. Slip the heat shrink over the crimp ring until it is against the
body and shrink.
8. Insert insulator into body.
9. Push the cover into the opening.
0.098 0.118
[2.50] [3.00]
0.197
[5.00]
HEAT SHRINK
SIDE VIEW
NOTES: (UNLESS OTHERWISE SPECIFIED)
1. ALL DIMENSIONS ARE IN INCHES [mm].
2. DIMENSIONS APPLY AFTER FINISHING.
3. MANUFACTURE TO BE COMPLIANT WITH EU RoHS DIRECTIVE.
4. SAFETY BREAK ALL SHARP CORNERS AND EDGES .02 MAXIMUM.
RG-174 Cable
MATERIAL:
:
THIS DRAWING CONTAINS PROPRIETARY INFORMATION
THAT IS THE SOLE PROPERTY OF LINX TECHNOLOGIES, AND SHALL BE
TREATED AS SUCH. NO DISCLOSURE OR REPRODUCTION OF THIS
DOCUMENT IS PERMITTED, IN WHOLE OR IN PART, WITHOUT THE
EXPRESS WRITTEN PERMISSION OF LINX TECHNOLOGIES OR ITS
DESIGNATED AGENTS.
TITLE:
159 ORT LANE
MERLIN, OR 97532
BRAIDED SHIELD
RECOMMENDED CABLE STRIPPING DIMENSIONS
FINISH:
PROJECTION:
TOLERANCES:
.020 [0.50]-.200 [5.00]= .008 [0.20]
.200 [5.00]-1.200 [30.00]= .016 [0.40]
1.20 [30.0]-4.75 [120.0]= .024 [0.60]
4.75 [120.0]-12.40 [315.0]= .040 [1.0]
ANGLES: 1

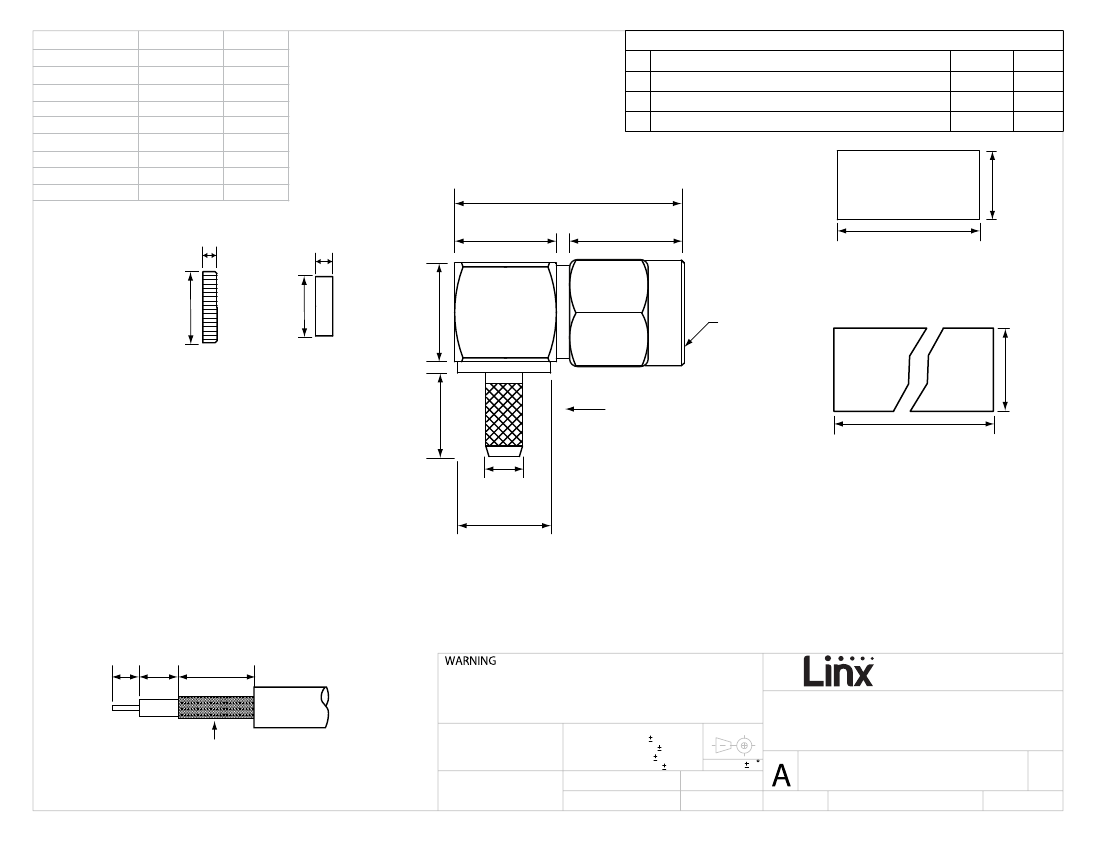

RP-SMA MALE RIGHT ANGLE
CABLE END CRIMP FOR RG174 CABLE
SIZE
DWG. NO.
REV
DRAWN: B.MURPHY DT:
2-JUL-12
ENGR: S.HOGAN
DT:
24-MAY-16
SCALE: 2:1
CONREVSMA012
DO NOT SCALE DRAWING
D
LDCFDLT_A
SHEET 1 OF 1
