PB-16C4
MOUNTING BOARD
•
Plug-compatible logic connections
•
Screw terminal barrier block for load connections
•
Resident pull-up resistors
•
5 amp field-replaceable fuses
(LITTLEFUSE #251005 or equivalent)
•
All even-numbered logic connections are
•
•
•
logic ground
Input and output modules accepted interchangeably
Operate with 5, 15 or 24 volt logic supplies
Captive-screw retaining system for C4 modules

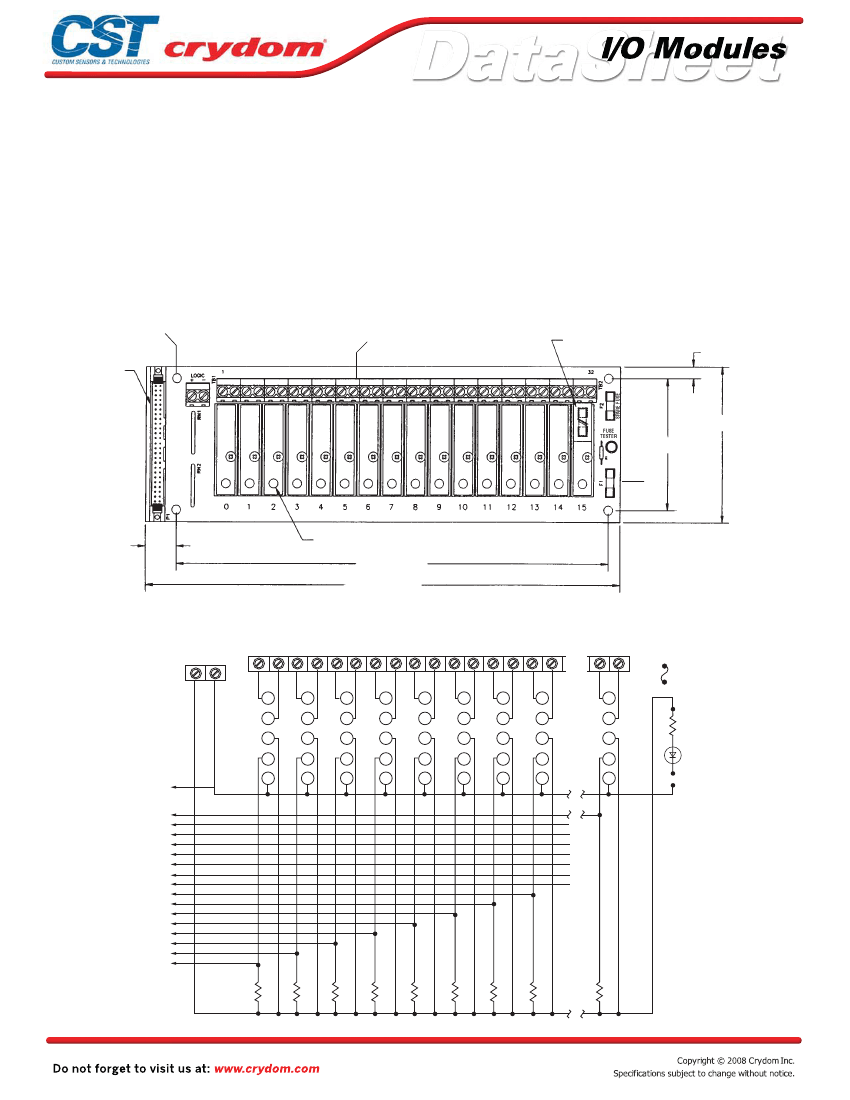

MECHANICAL SPECIFICATIONS
SWAGED STANDOFF (4)
0.62 (15.7)
POWER BARRIER STRIP
(SEE NOTES 1, 2)
FUSE HOLDER
OUTPUT MODULES
0.25˝ [6.4]
50 PIN IDC
HEADER
CONNECTOR
(SEE NOTE 3)
3.25˝ [82.6]
2.75˝ [69.9]
SEE NOTE 4
0.65˝ [16.5]
LED STATUS INDICATOR
9.10˝ [231.1]
10.00˝ [254.0]
NOTES: 1)
2)
3)
4)
BARRIER STRIP IS PHOENIX MKDS5/X 6.35mm
ACCEPTS UP TO 10 AWG WIRE
CONNECTOR IS CIRCUIT ASSEMBLY CA-50H-2B OR EQUIVALENT
LITTLE FUSE 229003S OR EQUIVALENT
DIMENSION: INCHES (MILLIMETERS)
TOLERANCE: ±0.20 (±0, 50)
LOGIC
+
–
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
31
32
N/C
SPARE
FUSE
N/C
0
1
J1
50 PIN IDC
HEADER
CONNECTOR
1
1
2
3
4
5
2
1
2
3
4
5
3
1
2
3
4
5
4
1
2
3
4
5
5
1
2
3
4
5
6
1
2
3
4
5
7
1
2
3
4
5
15
1
2
3
4
5
2
3
4
880
OHM
FUSE GOOD
INDICATOR
FUSE
TEST
EVEN PINS
2–50
5
17
19
21
23
25
27
29
31
33
35
37
39
41
43
17
47
4.7K
PULL UP
RESISTOR
TYP
Rev.
020410
