DLP120241 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> DLP120241

DLP120241: DescriptionAC/DC conv 24v 5A 120w din; Categorysemiconductor Power management; File Size472KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

DLP120241 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DLP120241	-	-	View	Buy Now

DLP120241 Overview

AC/DC conv 24v 5A 120w din

DLP120241 Parametric

Parameter Name	Attribute value
Datasheets
DLP Series
Standard Package	1
Category	Power Supplies - External/Internal (Off-Board)
Family	AC DC Converters
Type	Enclosed
Number of Outputs	1
Voltage - Inpu	85 ~ 264 VAC
Voltage - Output 1	24V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	5A
Power (Watts)	120W
Applications	ITE (Commercial)
Voltage - Isolati	2kV (2000V)
Efficiency	85%
Operating Temperature	-10°C ~ 60°C
Features	Adjustable Output, DC Input Capable, Universal Inpu
Mounting Type	DIN Rail
Size / Dimensi	4.33" L x 4.45" W x 2.36" H (110.0mm x 113.0mm x 60.0mm)
Minimum Load Required	-
Approvals	CE
Power (Watts) - Max	120W

Preview

Download Datasheet

View All

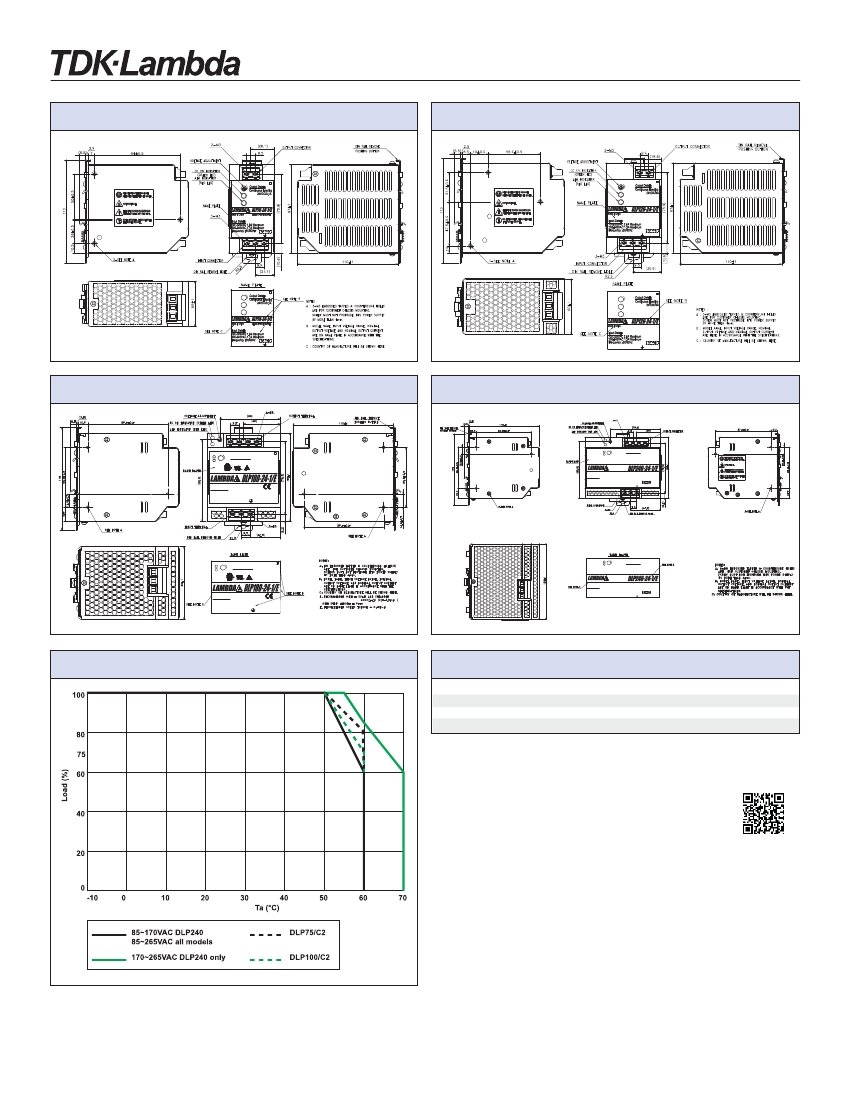

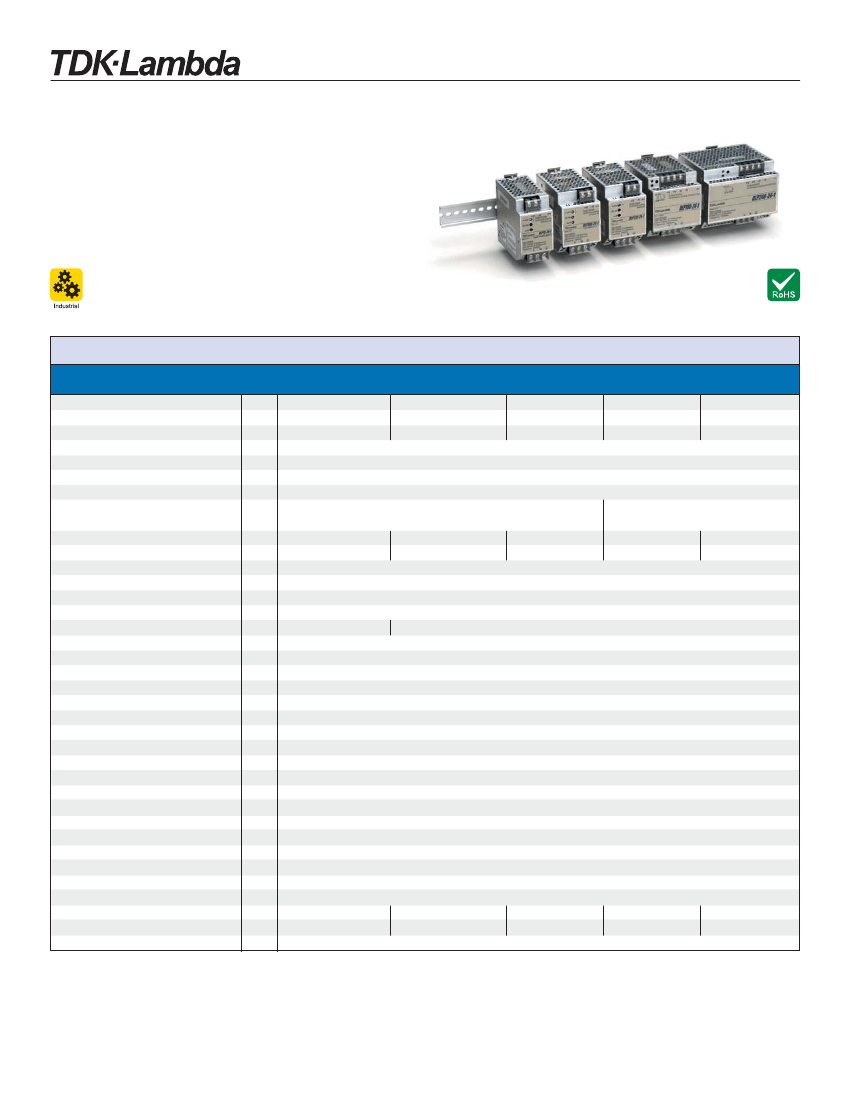

DLP Series

75 to 240W, 24V Output DIN Rail Mount Power Supplies

Features



UL508 Listed



Conducted and Radiated EMI, Class B



Input Transient Protection, IEC61000-4



Semi F47 Compliant (DLP180 & 240 only)

Key Market Segments & Applications

Speciﬁcations

Model

Output Voltage

Output Current

Output Power

Output Voltage Adjustment

Load Regulation

Line Regulation

Ripple/Noise (0-600C)

AC Input Voltage & Frequency

DLP75-24-1/E

3.1

DLP100-24-1/E

4.1

98.4

DLP120-24-1/E DLP180-24-1/E DLP240-24-1/E

5.0

120

21.6 - 28

192mV

120mV

240

7.5

180

240

Input Current 100/230VAC

Efﬁciency 100/230VAC

Power Factor

Inrush Current (Typ) 100/230VAC

Leakage Current

Hold-up Time 100/230VAC

Overcurrent Protection

Overvoltage Protection

LED Indicators

Operating Temperature

(2)

°C

Storage Temperature

°C

Humidity (Non-Condensing)

%RH

Withstand Voltage

Vibration

Shock

Safety Agency Approvals

Conducted EMI

Radiated EMI

ESD

Radiated RFI

Fast Transient Burst

Lightning Surge

Conducted RFI

Magnetic Field

Voltage Dips

Size

Weight

Warranty

yrs

(1)

(2)

85-132/170-265VAC,

85-265VAC (47-63Hz)

47-63Hz Auto select

or 120-370VDC

(1)

1.7/0.8

2.3/1.2

2.4/1.3

2.3/1.0

3.0/1.3

81/83

82/85

83/85

84/87

82/86

Meets EN61000-3-2 (DLP180, 240: >0.95)

20/45

Less than 0.75mA

20/30 (Semi F47 Compliance, DLP 180 & 240 only)

>105%,Fold Back

>105%, Constant Current (/C2 3.75A)

30-35V, latching, cycle AC line to reset

Green LED = DC ok Red LED = overcurrent

Convection cooled, -10°C to 60°C, derate linearly to 60% load from 50 to 60°C

-30°C~+85°C

30-90% operating 10-95% non operating

Input - Ground 2kVAC, Input to Output 3kVAC, Output - Ground 500VAC

9.8m/s

(1.0G) at DIN rail; (10-55Hz: 9.8m/s

Constant, X,Y, Z each 1 hour)

196m/s

(20G)

UL508, UL60950-1, CSA60950-1, EN60950-1, CE, EN50178 Cat III (Pri)

FCC-B, EN55011/EN55022-B, VCCI-B; Meets IEC61000-4-1

EN55011/EN55022-B, FCC-Class B, VCCI-B

IEC61000-4-2 ±10kV (Air), ±5kV (Contact)

IEC61000-4-3 80-1000MHz,12V/m 80% AM 1kHz

IEC61000-4-4 2.4kV 5kHz

IEC61000-4-5 4.4kV, 1.2x50μs (Common Mode) 2.4kV 1.2x50μs (Normal)

IEC61000-4-6 150kHz-80MHz, 12V, 80% AM 1kHz

IEC61000-4-8 36A/m

IEC61000-4-11 70% 10ms, 40% 100ms, 0% 5s

50 x 97 x 110

60 x 97 x 110

80 x 97 x 110

120 x 97 x 110

470

540

780

1000

3 Years

DC input is not safety approved

DLP240-24-1/E, 170-265VAC: -10°C~+70°C, derated linearly to 60% load from 50° to 70°C.

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm

DLP120241 Related Products

	DLP120241	DLP75241	DLP75241-E
Description	AC/DC conv 24v 5A 120w din	DIN Rail Power Supplies 74W 24V 3.1A Barrier strip termnl	DIN Rail Power Supplies 74W 24V 3.1A DIN Rail 115/230VAC
Number of Outputs	1	-	1 Output
Product Attribute	-	Attribute Value	Attribute Value
Manufacturer	-	TDK Corporation	TDK Corporation
Product Category	-	DIN Rail Power Supplies	DIN Rail Power Supplies
RoHS	-	Details	Details
Product	-	Switching Supplies	Switching Supplies
Input Type	-	1-Phase / Single Phase	1-Phase / Single Phase
Output Power	-	74 W	74 W
Input Voltage	-	115 VAC to 230 VAC	85 VAC to 132 VAC, 170 VAC to 265 VAC
Output Voltage-Channel 1	-	24 V	24 V
Output Current-Channel 1	-	3.1 A	3.1 A
Length	-	8.74 in	1.96 in
Width	-	2.95 in	3.8 in
Height	-	1.42 in	4.33 in
Factory Pack Quantity	-	1	1
Unit Weight	-	1.036 lbs	1.036 lbs
