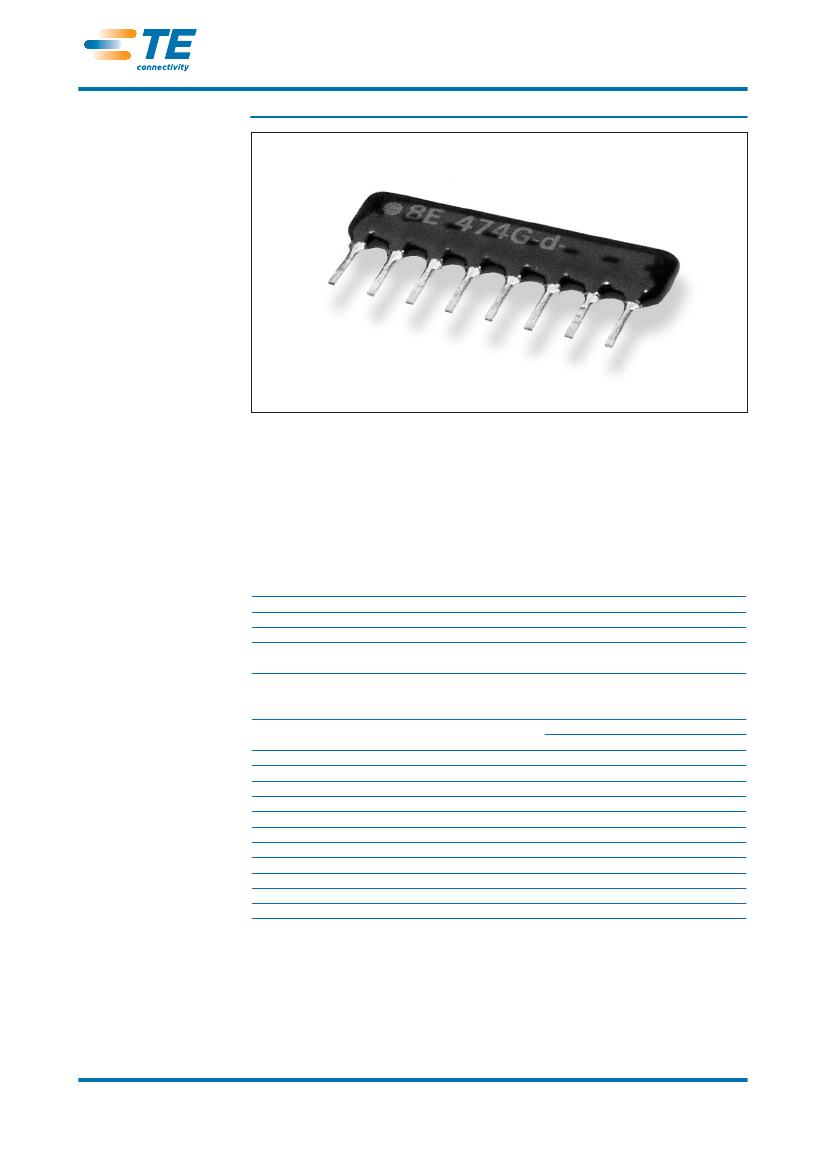

General Purpose Resistor Networks
SIL Resistor Networks (Standard Packages)
Key Features
I
I
I
I
I
I
I
2% & 5% Tolerances
Low Price Keeps Production
Costs Down
Solvent Proof Coating
Very Wide Range
Low Profile (5.08mm Max.)
Very Strong Construction
High Insulation Resistance
Fully automated production techniques, ensure this extensive range offers you
consistently high standards of performance and reliability. TE Connectivity (TE) can meet
all your demands with its range of 4 to 13 resistor elements in common
format and 3 to 7 resistor elements in isolated types. The substrate and lead frame
provide exceptional strength and the resistors are protected from humidity and
thermal shock by a hardwearing, solvent proof black coating. TE Connectivity (TE) will
also manufacture custom design networks for your special requirements. Please contact
our Sales Action Desk for details.
Characteristics - Electrical
Resistance Range:
Resistance Tolerances:
Maximum Operating Voltage:
Power Rating @ 70°C (Series):
(Parallel):
10R to 1M0 (E24 Values)
5%, 2%
100 Volts
0.125 Watts
0.200 Watts
Characteristics - Environmental
Test Method
Spec.
Operating Temperature:
Resistance Temp. Coefficient:
Short Time Overload:
Temperature Cycle:
Load Life:
Moisture-Proof Load Life:
Moisture Resistance:
High Temperature Exposure:
Solderability:
Solder Pot:
Terminal Strength:
-55° ~ +125°C
±200ppm/°C
±1.0%
±0.5%
±2.0%
±2.0%
±1.0%
±1.0%
95% coverage min.
±0.5%
±0.5%
6.5 (235°C/2s)
6.4 (260°C/10s)
6.1 (1) 1kg/10s)
5.2 (B)
5.5
7.4 ( -55°C ~ 125°C)
7.10 (1000 hr.)
7.9 (1000 hr.)
4.6.15
4.6.19
4.6.6
4.6.14
4.6.11
6.4.8
4.6.10
4.6.3
4.6.18(70°C 1000hr)
JIS - C - 5202
MIL - R - 83401
1773284 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
General Purpose Resistor Networks
SIL Resistor Networks (Standard Packages)
Circuit Configuration
Please Note: Common Terminal Devices (configuration E) are marked A on the body of the resistor.
Isolated Terminal Devices (configuration M) are marked either B or C on the body of the resistor.
E. Common Terminal
M. Isolated Terminal
Power Derating Curve
100
80
% Power
60
40
20
0
-55
-30
0
20
40
60
70
80
100
120
125
130
Temperature (°C)
Dimensions
2.54 x n
2.50 Max
5.08 Max
0.50 ±0.1
2.54 ±0.2
3.5 ±0.5
1.20 ±0.1
0.25 ±0.05
n = number of pins
How to Order
SIL
Common Part
08
No. of Pins
04 - 4 Pins
SIL
05 - 5 Pins
06 - 6 Pins
07 - 7 Pins
08 - 8 Pins
09 - 9 Pins
10 - 10 Pins
11 - 11 Pins
12 - 12 Pins
13 - 13 Pins
14 - 14 Pins
E - Common Terminals
M - Isolated Terminals
E
472
J
Tolerance
J - 5%
G - 2%
Circuit Config. Resistance Value
The first two digits
are significant fig-
ures of resistance
value and the third
denotes the number
of zeros following.
e.g. 220R: 221
4K7: 472
51K: 513
470K: 474
TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.
Other logos, product and Company names mentioned herein may be trademarks of their respective owners.
While TE has made every reasonable effort to ensure the accuracy of the information in this datasheet, TE does not guarantee that it is error-free, nor does TE make any other
representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein
at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantabili-
ty or fitness for a particular purpose. The dimensions in this datasheet are for reference purposes only and are subject to change without notice. Specifications are subject to change
without notice. Consult TE for the latest dimensions and design specifications.
