Y1365V0199BT0U Overview

res array mult ohm 4 res 8soic

Y1365V0199BT0U Parametric

Parameter Name	Attribute value
Datasheets
SMN Series
Product Photos
8-SOIC
8-SOIC
Standard Package	1,000
Category	Resistors
Family	Resistor Networks, Arrays
Packaging	Tube
Circuit Type	Isolated
Resistance (Ohms)	500, 5k
Tolerance	±0.1%
Number of Resistors	4
Number of Pins	8
Power Per Eleme	100mW
Temperature Coefficie	±2ppm/°C
Applications	-
Mounting Type	Surface Mou
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	-
Size / Dimensi	0.197" L x 0.157" W (5.00mm x 3.99mm)
Heigh	0.073" (1.86mm)
Operating Temperature	-55°C ~ 125°C

Preview

Download Datasheet

View All

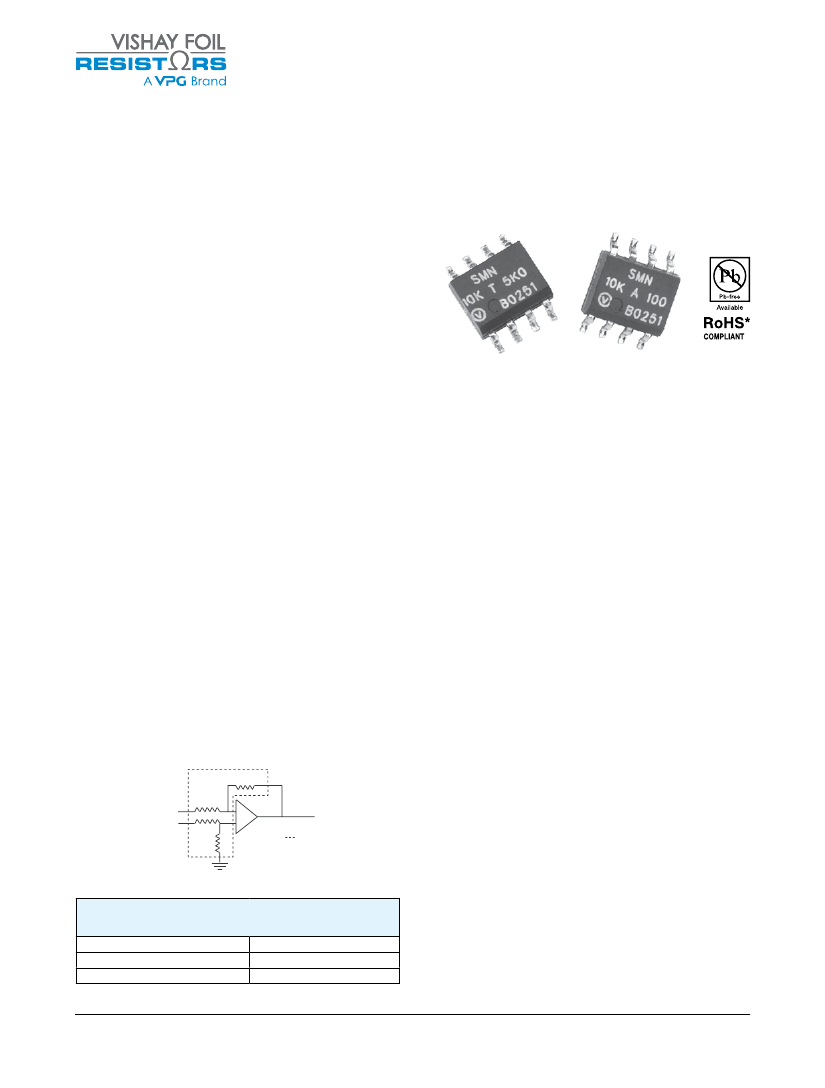

SMN

High Precision Surface Mount 4 Resistor Network

Dual-In-Line Package with TCR Tracking ≤0.5 ppm/°C,

Tolerance Match of 0.01% and Ratio Stability of 0.005%

FEATURES

• Temperature coefficient of resistance (TCR)

(–55°C to +125°C, +25°C ref):

- Absolute: ±0.2 ppm/°C typical (see Table 2)

- Tracking: ±0.5 ppm/°C typical (see Table 2)

• Power rating (at 70°C):

- Entire package: 0.4 W

- Each resistor: 0.1 W

• Resistance tolerance match: 0.01%

• Ratio stability: 0.005% (0.1 W at 70°C, 2000 hours)

• Large variety of resistance ratios

• Electrostatic discharge (ESD) to 25 kV

• Short time overload: ≤0.0025%

• Non inductive, non capacitive design

• Rise time: 1 ns without ringing

• Current Noise: <– 40 dB

• Thermal EMF: 0.05 μV/°C

• Voltage coefficient <0.1 ppm/V

• Non inductive: <0.08 μH

• Non hot spot design

• Terminal finishes available: Lead (Pb)-free; Tin/Lead

alloy

• For better performances please contact us

• Available with Z-Foil technology, please see SMNZ

datasheet.

Any value and any ratio available within resistance range

INTRODUCTION

Bulk Metal

Foil (BMF) Technology outperforms all other

resistor technologies available today for applications that

require high precision and high stability.

This technology has been pioneered and developed

by Vishay Foil Resistors, and products based on this

technology are the most suitable for a wide range of

applications.

BMF technology allows us to produce Customer

Orientated products designed to satisfy challenging and

specific technical requirements.

Model SMN offers low TCR (absolute and tracking),

excellent load life stability, tight tolerance (absolute and

match), excellent ratio stability, low thermal EMF, low

current noise and low voltage coefficient - all in the same

resistor.

The SMN Surface Mount Network is made up of 4

independent BMF resistors in a small standard molded

epoxy package with 50 MIL lead pitch (JEDEC MS-012

package).

APPLICATIONS

•

Instrumentation amplifiers

Bridge networks

Differential amplifiers

Ratio arms in bridge circuits

Medical and test equipment

Military

Airborne, etc.

SMN

out

The electrical specification of this integrated construction

offers improved performance and better real estate

utilization over discrete resistors and matched sets. The

resistor may be used independently or as divider pairs.

Our Application Engineering Department is available to

advise and make recommendations. For non-standard

technical requirements and special applications, please

footer below.

This datasheet provides information about parts that are

RoHS-compliant and/or parts that are non-RoHS-compliant.

For example, parts with lead (Pb) terminations are not RoHS

compliant. Please see the information/tables in this datasheet

for details.

Table 1—Resistance Values and Tolerances

(Tighter performances are available)

Resistance Values

Absolute Tolerance Each Resistor

Resistance Tolerance Match

100 Ω – 10 kΩ per resistor

±0.02%, ±0.05%, ±0.1%

0.01%, 0.02%, 0.05%

Document No.: 63081

Revision: 22-Dec-2016

For any questions, contact

foil@vpgsensors.com

www.vishayfoilresistors.com
