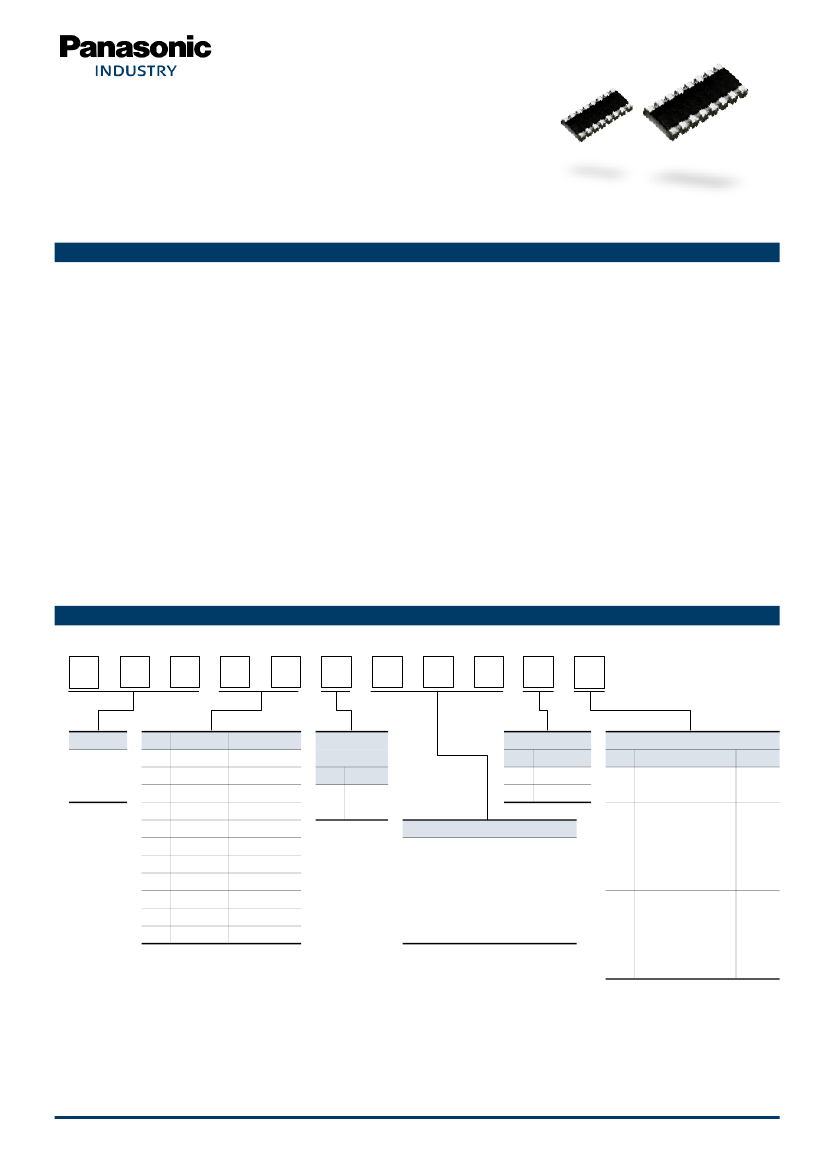

Chip Resistors Array
EXB type
EXB 14V, 18V, 24V, 28V, N8V, 2HV,
series
EXB 34V, V4V, 38V, V8V, S8V
series
Features
●
High density
2 resistors in 0.8 mm × 0.6 mm size / 0302 inch size : EXB14V
4 resistors in 1.4 mm × 0.6 mm size / 0502 inch size : EXB18V
2 resistors in 1.0 mm × 1.0 mm size / 0404 inch size : EXB24V
4 resistors in 2.0 mm × 1.0 mm size / 0804 inch size : EXB28V，N8V
8 resistors in 3.8 mm × 1.6 mm size / 1506 inch size : EXB2HV
2 resistors in 1.6 mm × 1.6 mm size / 0606 inch size : EXB34V，V4V
4 resistors in 3.2 mm × 1.6 mm size / 1206 inch size : EXB38V，V8V
4 resistors in 5.1 mm × 2.2 mm size / 2009 inch size : EXBS8V
●
Improvement of placement efficiency
Placement efficiency of Chip Resistor Array is two, four or eight times of the flat type chip resistor
: IEC 60115-9, JIS C 5201-9, EIAJ RC-2129
●
Reference Standard
●
AEC-Q200 compliant (EXB2，EXB3)
●
RoHS compliant
■
As for packaging methods, land pattern, soldering conditions and safety precautions,
please see data files.
Explanation of part numbers
1
2
3
4
5
6
7
8
9
10
11
E
Product code
X
Code
14
18
24
28
2H
34
38
N8
V4
V8
S8
B
inch size
0201×2
0201×4
0402×2
0402×4
0602×8
0603×2
0603×4
0402×4
0603×2
0603×4
0805×4
V
8
V
4
7
2
J
V
Packaging methods
Code
Nil
Packaging
Embossed carrier taping
4 mm pitch, 2,500 pcs
Construction
Convex terminal
Flat terminal
Convex terminal
Convex terminal
Convex terminal
Convex terminal
Convex terminal
Convex terminal
Convex terminal
Convex terminal
Convex terminal
Schematics
Code
Schematics
V
Isolated
type
Resistance tolerance
Thick film
chip resistor
networks
Code
J
0
Tolerance
±5
％
Jumper
Part No.
EXBS8V
EXB14V
Resistance value
Ｘ
The first two digits are significant figures of
resistance value and the third one denotes
the number of zeros following. Jumper is
expressed by R00.
(Ex.) 222 : 2.2 kΩ
V
Punched carrier taping
2 mm pitch,10,000 pcs
EXB18V
EXB24V
EXB28V
EXBN8V
EXB2HV
Punched carrier taping
4 mm pitch, 5,000 pcs
EXB34V
EXB38V
EXBV4V
EXBV8V
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
1-Mar-20
Chip Resistors Array
Ratings
【For
Resistor】
Part No.
(inch size)
EXB14V
(0201×2)
EXB18V
(0201×4)
EXB24V
(0402×2)
EXB28V
(0402×4)
EXB2HV
(0602×8)
EXB34V
(0603×2)
EXB38V
(0603×4)
EXBN8V
(0402×4)
EXBV4V
(0603×2)
EXBV8V
(0603×4)
EXBS8V
(0805×4)
Power rating
(70
℃)
(W/element)
voltage
*1
(V)
Limiting
element
Maximum
overload
voltage
(V)
*2
Resistance
tolerance
(%)
Resistance
range
(Ω)
10 to 1 M
10 to 1 M
1 to 1 M
1 to 1 M
10 to 1 M
1 to 1 M
1 to 1 M
10 to 1 M
10 to 1 M
10 to 1 M
10 to 1 M
(E24)
(E24)
(E24)
(E24)
(E24)
(E24)
(E24)
(E24)
(E24)
(E24)
(E24)
T.C.R.
(×10
-6
/K)
Category
temperature
range
(℃)
AEC-Q200
Grade
0.031
(0.1 W / package)
12.5
12.5
50
50
25
50
50
50
50
50
100
25
25
100
100
50
100
100
100
100
100
200
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
0.031
-
0.063
0.063
(0.25 W / package)
0.063
0.063
R<10 Ω
: –200 ~ +600
10 Ω ~ 1 MΩ
: ±200
Grade 1
–55 to +125
0.063
0.031
0.063
0.063
0.1
-
*1: Rated Continuous Working Voltage (RCWV) shall be determined from RCWV=√Power Rating × Resistance Value,
or Limiting Element Voltage listed above, whichever less.
*2: Overload Test Voltage (OTV) shall be determined from OTV=Specified Magnification (refer to performance) × RCWV
or Maximum Overload Voltage listed above, whichever less.
【For
Jumper】
Part No.
EXB14V
EXB18V
EXB24V
EXB28V
EXB2HV
EXB34V
EXB38V
EXBN8V
EXBV4V
EXBV8V
EXBS8V
50 mΩ or less
Power derating curve
Rated current
Maximum overload
*1
current
Resistance
0.5 A
0.5 A
1A
1A
1A
1A
1A
1A
1A
1A
2A
1A
1A
2A
2A
2A
2A
2A
2A
2A
4A
Rated load (%)
2A
For resistors operated in ambient temperatures
above 70
℃,
power rating shall be derated in
accordance with the figure below.
100
80
60
40
20
0
125
℃
-60 -40 -20
0
20
40
60
80 100 120 140 160 180
-55
℃
70
℃
*1: Overload test current
Ambient temperature (℃)
Construction
(Example : Concave terminal)
Schematics
●Isolated
type
Protective coating
14V, 24V
34V, V4V
2 resistors
4 3
18V, 28V, N8V
38V, V8V, S8V
4 resistors
8 7
6 5
16 15
2HV
8 resistors
14 13 12 11 10 9
Alumina substrate
Electrode (Outer)
Thick film
Electrode (Between)
resistive element
Electrode (Inner)
1 2
1 2
3 4
1 2
3 4
5 6
7 8
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
1-Mar-20
Chip Resistors Array

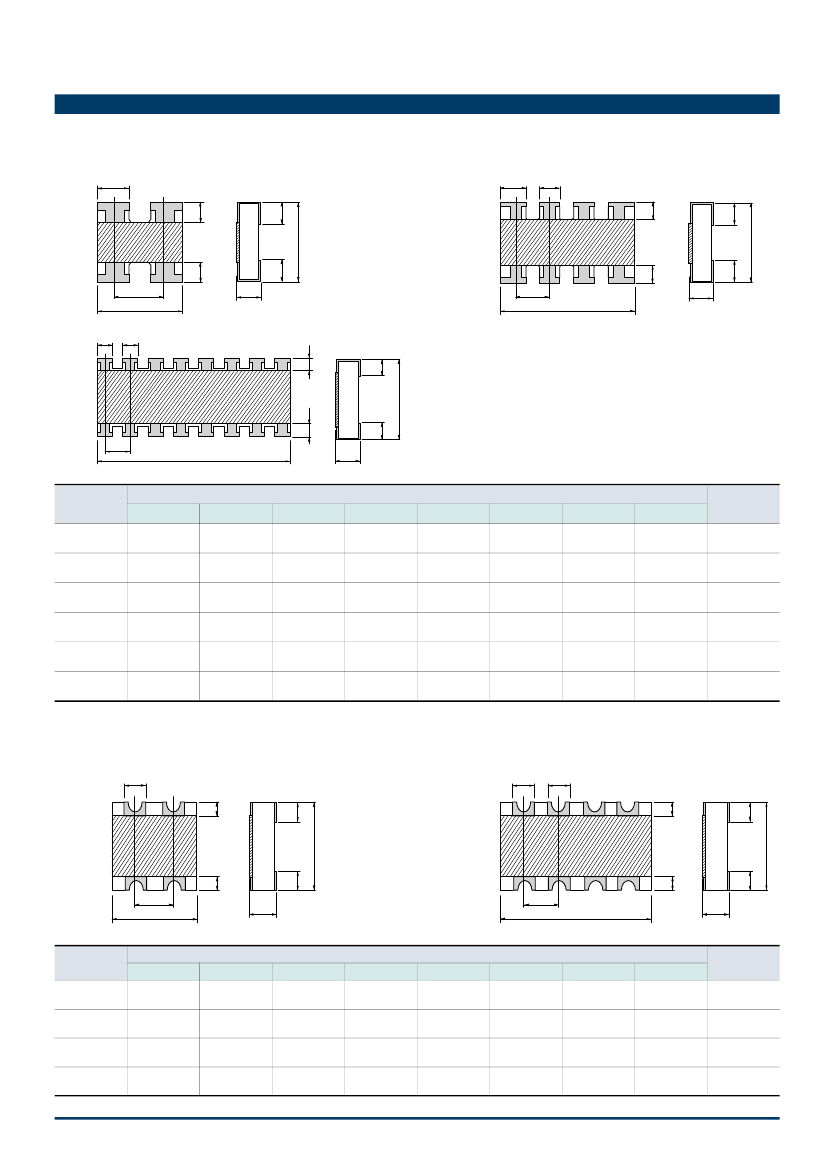

Dimensions (not to scale)
(1) Convex terminal type
EXB14V, 24V, 34V
A
1
G
B
A
1
A
2
B
G
T
G
Unit : mm
EXB28V, 38V
W
G
P
L
A
1
A
2
B
T
P
L
EXB2HV
B
G
B
P
L
T
G
Part No.
(inch size)
EXB14V
(0603X2)
EXB24V
(1005×2)
EXB28V
(1005×4)
EXB2HV
(1605×8)
EXB34V
(1608×2)
EXB38V
(1608×4)
L
0.80±0.10
1.00±0.10
2.00±0.10
3.80±0.10
1.60±0.20
3.20±0.20
W
0.60±0.10
1.00±0.10
1.00±0.10
1.60±0.10
1.60±0.15
1.60±0.15
T
0.35±0.10
0.35±0.10
0.35±0.10
0.45±0.10
0.50±0.10
0.50±0.10
Dimensions
A
1
A
2
0.35±0.10
0.40±0.10
0.45±0.10
0.35±0.10
0.65±0.15
0.65±0.15
—
—
0.35±0.10
0.35±0.10
—
0.45±0.15
W
B
Mass (Weight)
B
0.15±0.10
0.18±0.10
0.20±0.10
0.30±0.10
0.30±0.20
0.30±0.20
P
(0.50)
(0.65)
(0.50)
(0.50)
(0.80)
(0.80)
G
0.15±0.10
0.25±0.10
0.25±0.10
0.30±0.10
0.30±0.20
0.35±0.20
(g/1000 pcs)
( ) Reference
(2) Concave terminal type
EXBV4V
A
1
B
G
EXBN8V, V8V, S8V
A
1
A
2
B
G
T
T
Unit : mm
W
G
B
P
L
Part No.
(inch size)
EXBN8V
(1005×4)
EXBV4V
(1608×2)
EXBV8V
(1608×4)
EXBS8V
(2012×4)
T
P
L
L
2.00±0.10
+0.20/-0.10
+0.20/-0.10
+0.20/-0.10
W
1.00±0.10
+0.20/-0.10
+0.20/-0.10
+0.20/-0.10
T
0.45±0.10
0.60±0.10
0.60±0.10
0.70±0.20
Dimensions
A
1
A
2
0.30±0.10
0.60±0.10
0.60±0.10
0.80±0.15
0.30±0.10
—
0.60±0.10
0.80±0.15
B
Mass (Weight)
B
0.20±0.15
0.30±0.15
0.30±0.15
0.50±0.15
P
(0.50)
(0.80)
(0.80)
(1.27)
G
0.30±0.15
0.45±0.15
0.45±0.15
0.55±0.15
(g/1000 pcs)
1.60
3.20
5.08
1.60
1.60
2.20
( ) Reference
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
1-Mar-20
G
3.0
5.0
10
30
W
W
0.5
1.2
2.0
9.0
3.5
7.0
Chip Resistors Array
Dimensions (not to scale)
(3) Flat terminal type
A
1
A
2
EXB18V
B
G
G
W
P
L
Unit : mm
B
Part No.
(inch size)
EXB18V
(0603×4)
L
1.40±0.10
W
0.60±0.10
T
0.35±0.10
Dimensions
A
1
A
2
0.20±0.10
0.20±0.10
Mass (Weight)
B
0.10±0.10
P
(0.40)
G
0.20±0.10
(g/1000 pcs)
1.0
( ) Reference
Performance
Test Item
Resistance
T. C. R.
Overload
Resistance to
soldering heat
Rapid change of
temperature
High temperature
exposure
Damp heat,
Steady state
Load life in humidity
Performance
requirements
⊿R
Within specified
tolerance
Within specified
T. C. R.
±2 %
±1 %
±1 %
±1 %
±1 %
Test conditions
20
℃
+25
℃
/ +125
℃
Rated voltage x 2.5，5 s
Jumper type : Max. overload current, 5 s
270
℃,
10 s
–55
℃
(30 min.) / +155
℃
(30 min.)，100 cycles
+125
℃,
1000 h
60
℃,
90 % to 95 %RH, 1000 h
60
℃,
90 % to 95 %RH, Rated voltage
(Jumper type : Rated current),
1.5 h ON / 0.5 h OFF cycle, 1000 h
70
℃，Rated
voltage (Jumper type :Rated current),
1.5 h ON / 0.5 h OFF cycle, 1000 h
±3 %
Endurance at 70
℃
±3 %
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
1-Mar-20
Guidelines and precautions regarding the
technical information and use of our products
described in this online catalog.
■
If you want to use our products described in this online catalog for applications requiring special
qualities or reliability, or for applications where the failure or malfunction of the products may directly
jeopardize human life or potentially cause personal injury (e.g. aircraft and aerospace equipment,
traffic and transportation equipment, combustion equipment, medical equipment, accident prevention,
anti-crime equipment, and/or safety equipment), it is necessary to verify whether the specifications of
our products fit to such applications. Please ensure that you will ask and check with our inquiry desk
as to whether the specifications of our products fit to such applications use before you use our products.
■
The quality and performance of our products as described in this online catalog only apply to our
products when used in isolation. Therefore, please ensure you evaluate and verify our products under
the specific circumstances in which our products are assembled in your own products and in which our
products will actually be used.
■
If you use our products in equipment that requires a high degree of reliability, regardless of the
application, it is recommended that you set up protection circuits and redundancy circuits in order
to ensure safety of your equipment.
■
The products and product specifications described in this online catalog are subject to change for
improvement without prior notice. Therefore, please be sure to request and confirm the latest product
specifications which explain the specifications of our products in detail, before you finalize the design
of your applications, purchase, or use our products.
■
The technical information in this online catalog provides examples of our products' typical operations
and application circuits. We do not guarantee the non-infringement of third party's intellectual property
rights and we do not grant any license, right, or interest in our intellectual property.
■
If any of our products, product specifications and/or technical information in this online catalog is to
be exported or provided to non-residents, the laws and regulations of the exporting country,
especially with regard to security and export control, shall be observed.
<Regarding the Certificate of Compliance with
the EU RoHS Directive/REACH Regulations>
■
The switchover date for compliance with the RoHS Directive/REACH Regulations varies depending
on the part number or series of our products.
■
When you use the inventory of our products for which it is unclear whether those products are
compliant with the RoHS Directive/REACH Regulation, please select "Sales Inquiry" in the website
inquiry form and contact us.
We do not take any responsibility for the use of our products outside the scope of the
specifications, descriptions, guidelines and precautions described in this online catalog.
16-Apr-21
