Part Number

Search

87555-0620

Description
Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size30KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home

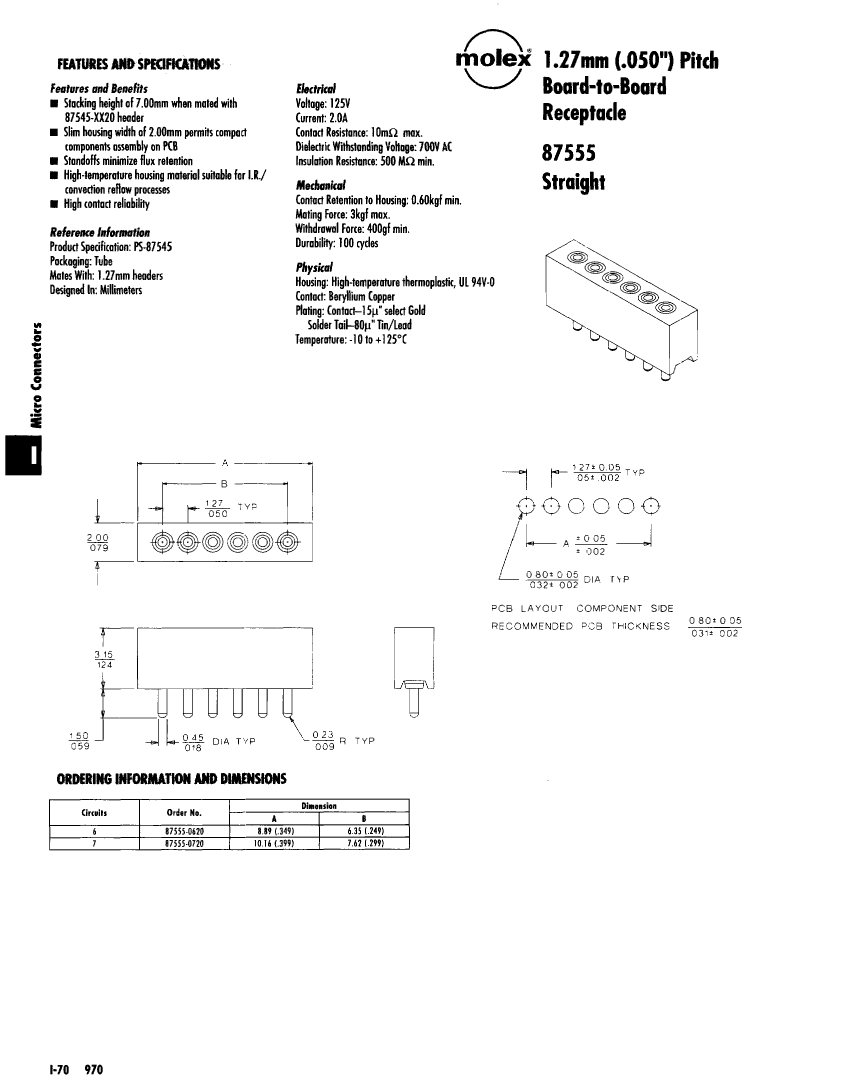

Download Datasheet Parametric Compare View All

87555-0620 Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle

87555-0620 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresTUBE PACKAGING
body width0.079 inch
subject depth0.124 inch
body length0.349 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Dielectric withstand voltage700VAC V
Durability100 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force4.17 N
Insulation resistance500000000 Ω
insulator materialTHERMOPLASTIC
MIL complianceNO
Manufacturer's serial number87555
Plug contact pitch0.05 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature125 °C
Minimum operating temperature-10 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness15u inch
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.059 inch
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts6
UL Flammability Code94V-0
Evacuation force-minimum value.0278 N
Base Number Matches1

87555-0620 Related Products

87555-0620 87555-0720
Description Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle Board Connector, 7 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Other features TUBE PACKAGING TUBE PACKAGING
body width 0.079 inch 0.079 inch
subject depth 0.124 inch 0.124 inch
body length 0.349 inch 0.399 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU AU
Contact completed and terminated TIN OVER NICKEL TIN OVER NICKEL
Contact point gender FEMALE FEMALE
Contact material BERYLLIUM COPPER BERYLLIUM COPPER
contact mode RECTANGULAR RECTANGULAR
Contact resistance 10 mΩ 10 mΩ
Contact style RND PIN-SKT RND PIN-SKT
DIN compliance NO NO
Dielectric withstand voltage 700VAC V 700VAC V
Durability 100 Cycles 100 Cycles
Filter function NO NO
IEC compliance NO NO
maximum insertion force 4.17 N 4.17 N
Insulation resistance 500000000 Ω 500000000 Ω
insulator material THERMOPLASTIC THERMOPLASTIC
MIL compliance NO NO
Manufacturer's serial number 87555 87555
Plug contact pitch 0.05 inch 0.05 inch
Mixed contacts NO NO
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 1 1
Number of rows loaded 1 1
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -10 °C -10 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR
Plating thickness 15u inch 15u inch
Rated current (signal) 2 A 2 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.059 inch 0.059 inch
Terminal pitch 1.27 mm 1.27 mm
Termination type SOLDER SOLDER
Total number of contacts 6 7
UL Flammability Code 94V-0 94V-0
Evacuation force-minimum value .0278 N .0278 N
Base Number Matches 1 1
