87381-1405 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 87381-1405

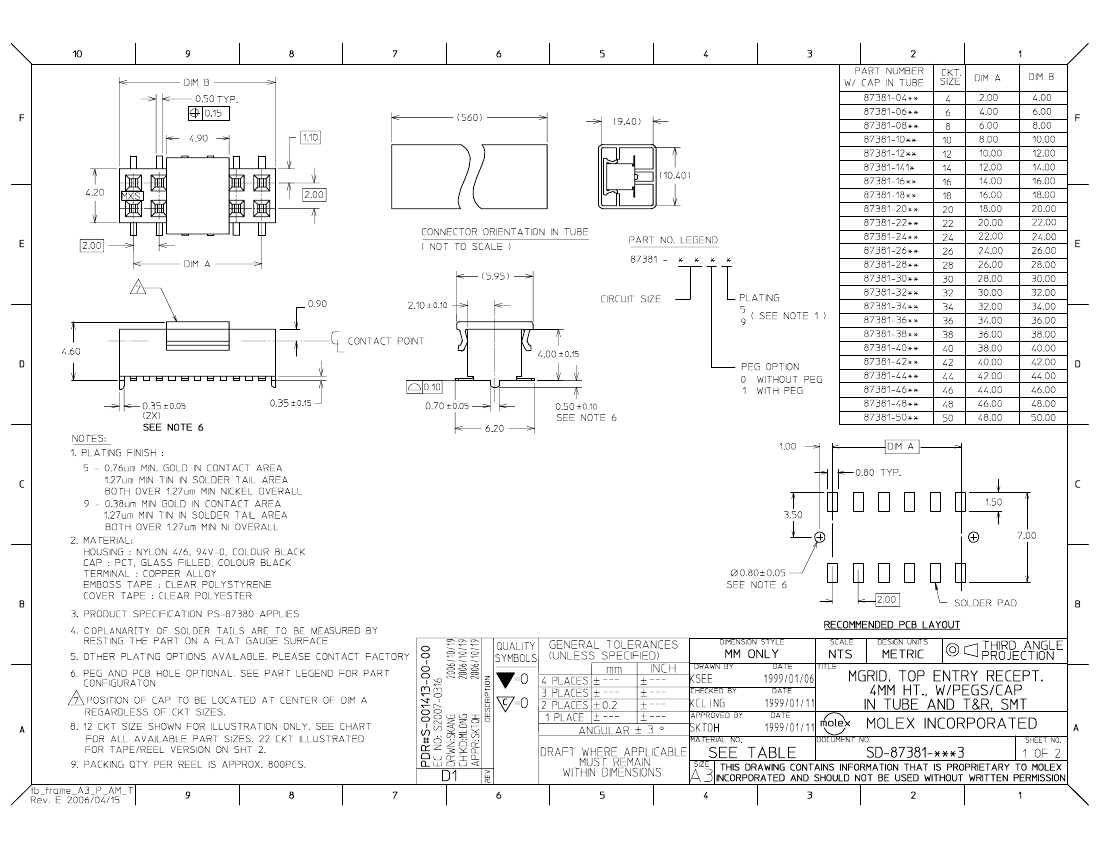

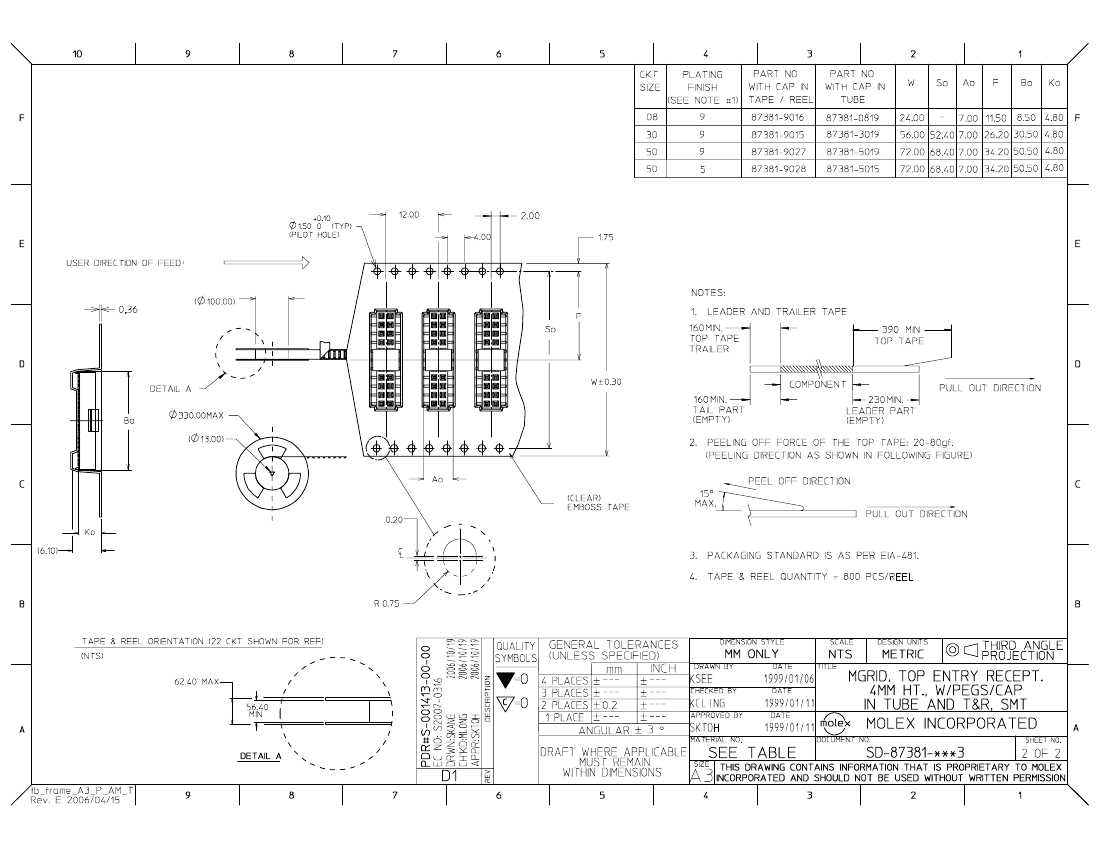

Preview

87381-1405: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size172KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

87381-1405 Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Plug

87381-1405 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	ROHS,ELV COMPLIANT W/TUBE PKG
body width	0.165 inch
subject depth	0.157 inch
body length	0.551 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
maximum insertion force	1.7514 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	87381
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
Plating thickness	30u inch
Rated current (signal)	1.9 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
Evacuation force-minimum value	.1946 N
Base Number Matches	1

Preview

Download Datasheet

View All

87381-1405 Related Products

	87381-1405	87381-1409
Description	Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Plug	Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Plug
Maker	Molex	Molex
Reach Compliance Code	unknown	unknown
Other features	ROHS,ELV COMPLIANT W/TUBE PKG	ROHS,ELV COMPLIANT W/TUBE PKG
body width	0.165 inch	0.165 inch
subject depth	0.157 inch	0.157 inch
body length	0.551 inch	0.551 inch
Body/casing type	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V
Durability	25 Cycles	25 Cycles
maximum insertion force	1.7514 N	1.7514 N
Insulation resistance	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK
insulator material	NYLON	NYLON
Manufacturer's serial number	87381	87381
Plug contact pitch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.5118 mm	5.5118 mm
Plating thickness	30u inch	15u inch
Rated current (signal)	1.9 A	1.9 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	2.0066 mm	2.0066 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	14	14
Evacuation force-minimum value	.1946 N	.1946 N
Base Number Matches	1	1
