Z8614408SEC datasheet, PDF - EEWORLD Datasheet

Z8614408SEC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDSO18,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，38 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

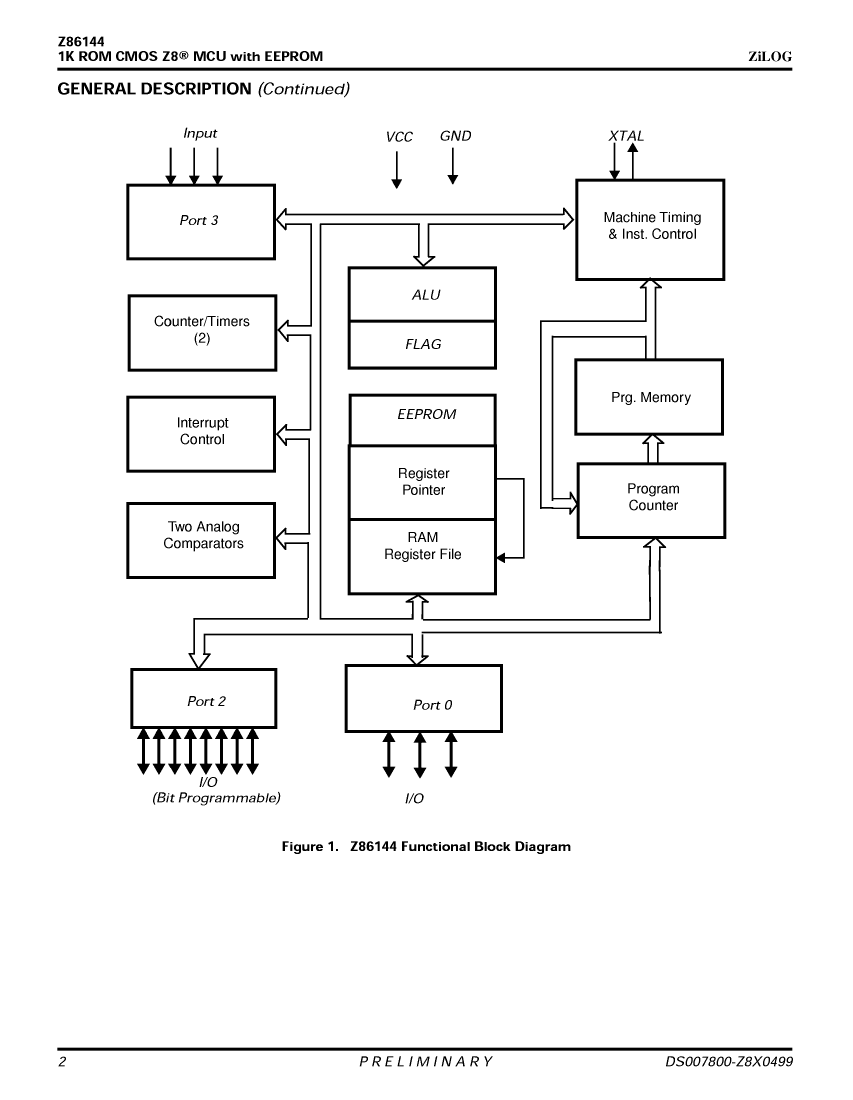

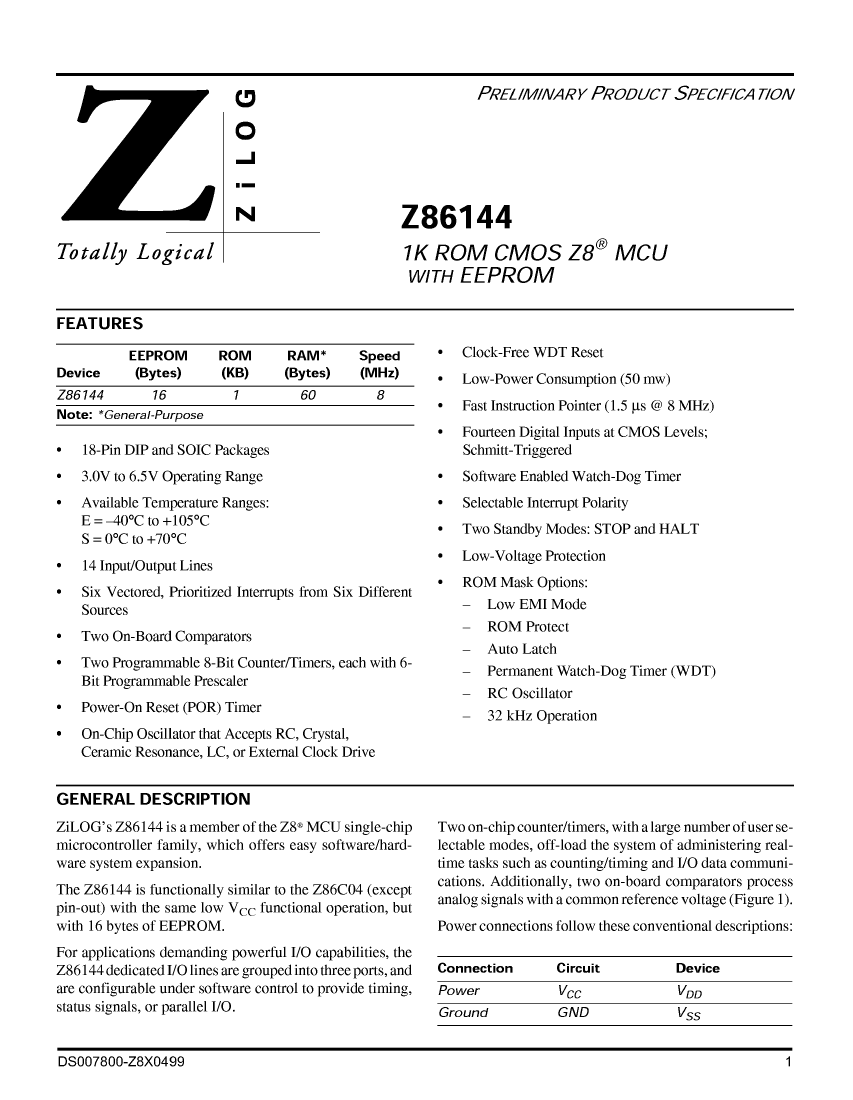

Z8614408SEC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDSO18,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IXYS
package instruction	SOP, SOP18,.4
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
CPU series	Z8
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDSO-G18
length	11.55 mm

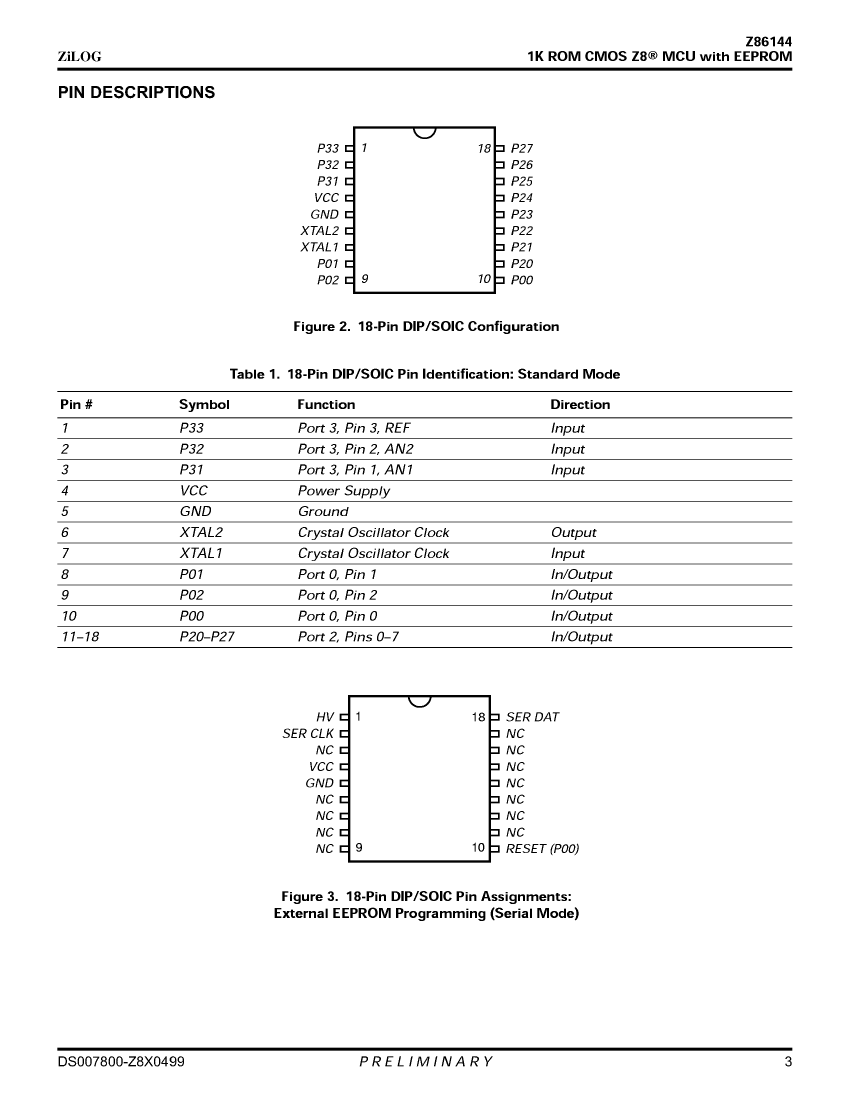

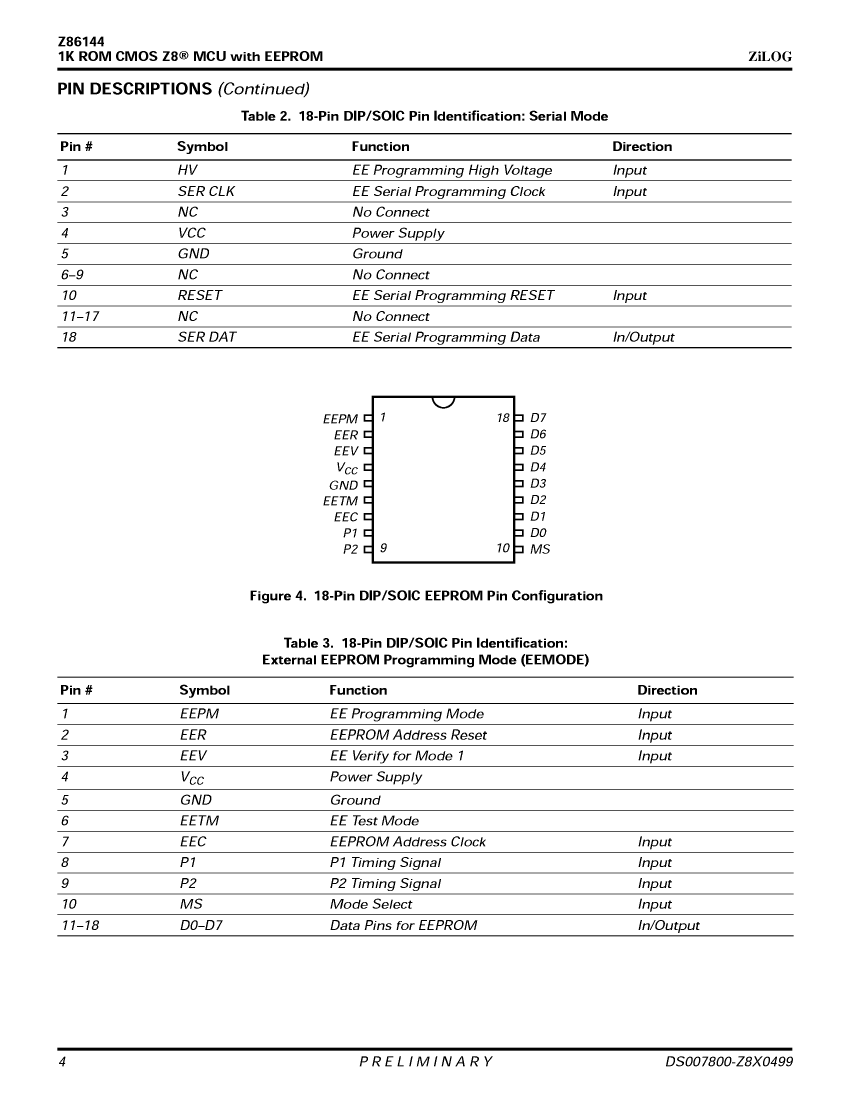

Number of I/O lines	14
Number of terminals	18
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP18,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	3/6.5 V
Certification status	Not Qualified
RAM (bytes)	60
rom(word)	1024
ROM programmability	MROM
speed	8 MHz

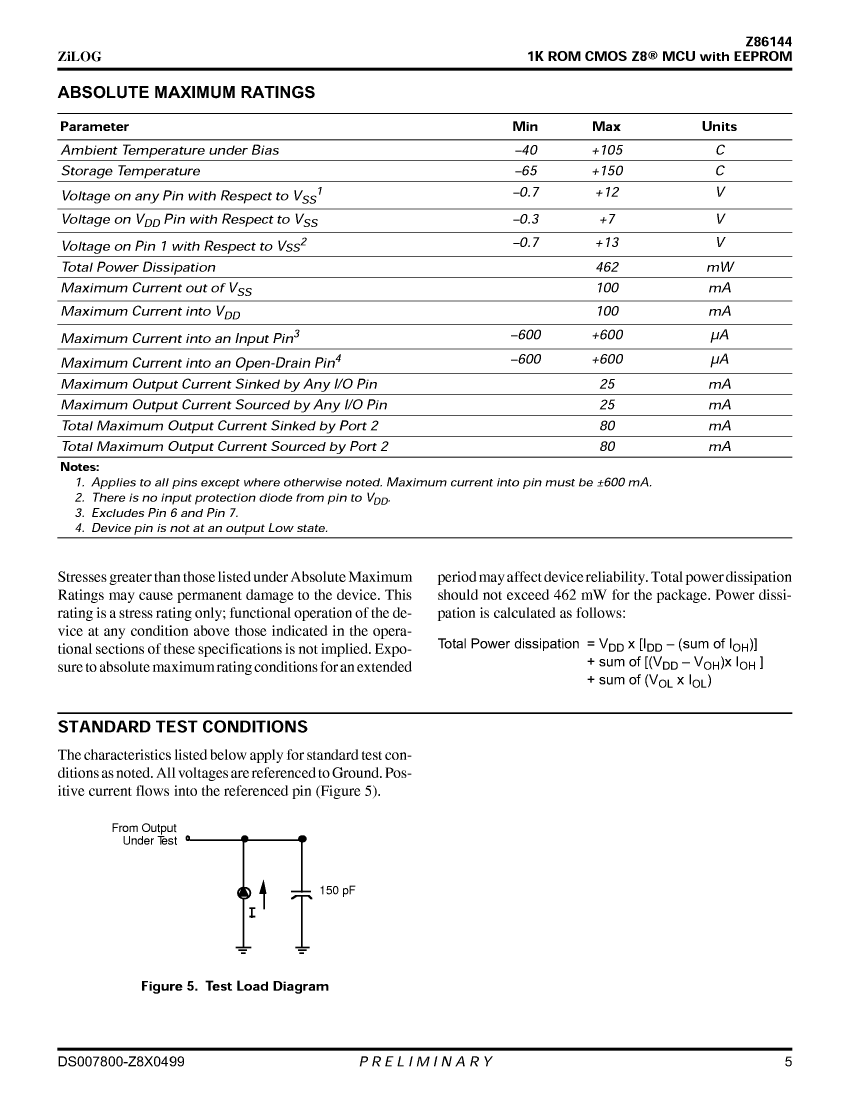

Maximum slew rate	8 mA
Maximum supply voltage	6.5 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1

	Z8614408SEC	Z8614408SSC	Z8614408PEC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDSO18,	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDSO18,	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDIP18,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	IXYS	IXYS	IXYS
Reach Compliance Code	unknown	unknown	unknown
Has ADC	NO	NO	NO
bit size	8	8	8
CPU series	Z8	Z8	Z8
maximum clock frequency	8 MHz	8 MHz	8 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
JESD-30 code	R-PDSO-G18	R-PDSO-G18	R-PDIP-T18
length	11.55 mm	11.55 mm	22.86 mm
Number of I/O lines	14	14	14
Number of terminals	18	18	18
Maximum operating temperature	105 °C	70 °C	105 °C
Minimum operating temperature	-40 °C	-	-40 °C
PWM channel	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP
Encapsulate equivalent code	SOP18,.4	SOP18,.4	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
power supply	3/6.5 V	3/6.5 V	3/6.5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	60	60	60
rom(word)	1024	1024	1024
ROM programmability	MROM	MROM	MROM
speed	8 MHz	8 MHz	8 MHz
Maximum slew rate	8 mA	8 mA	8 mA
Maximum supply voltage	6.5 V	6.5 V	6.5 V
Minimum supply voltage	3 V	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	NO
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	7.5 mm	7.5 mm	7.62 mm
Base Number Matches	1	1	1
