803-13-002-10-004000: DescriptionBoard Connector, 2 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size154KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

803-13-002-10-004000 Overview

Board Connector, 2 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT

803-13-002-10-004000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	GOLD (10)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	803
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

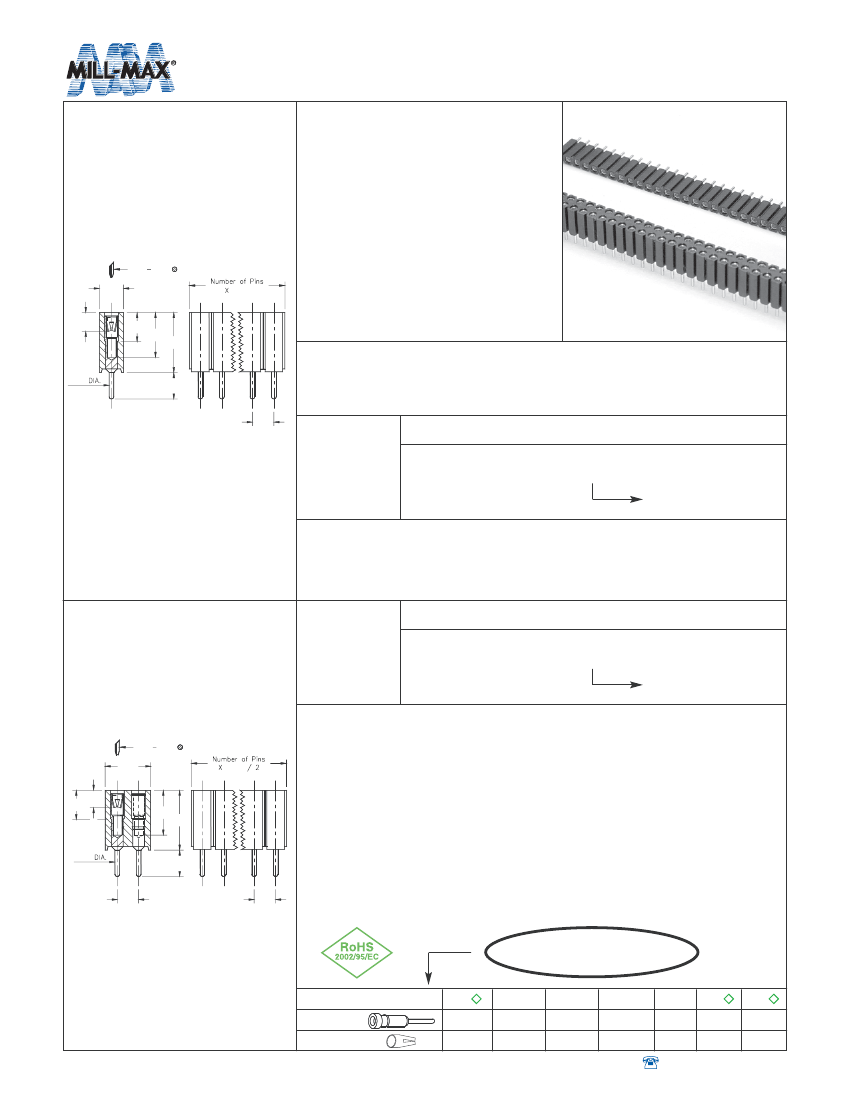

INTERCONNECTS

1,02 dia. Pins

Single and Double Row

Series 801, 803

●

Receptacles accept 0,94-1,04

diameter pins.

(MM# 1313 receptacles for

details see page 149)

0,94 1,09

2,54

2,08

3,45

5,21

6,91

0,61

Ordering Information

3,0

2,54

Single Row

Fig. 1

801-XX-0_ _-10-004000

Specify # of pins

01-50

Double Row

Fig. 2

803-XX-_ _ _-10-004000

Specify # of pins

002-100

0,94 1,09

5,08

2,54

3,45

2,08

5,21

6,91

0,61

3,0

2,54

Fig. 2

SPECIFY PLATING CODE XX=

XX= Plating Code

See Below

13



0,76µm Au

91

10µ” Au

93

0,76µm Au

99

41



43



44



Slee

0,25

ve

(Pin)

0,25µm Au

200µ” Sn/Pb

5,08µm Sn/Pb 5,08µm Sn/Pb

200µ” Sn

5,08µm Sn 5,08µm Sn

5,08µm Sn/Pb

10µ” Au

0,76µm Au 5,08µm Sn

Contact (Clip)

w w w. m i l l - m a x . c o m

82



516-922-6000
