ATS111SML datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> ATS111SML

ATS111SML: DescriptionParallel - Fundamental Quartz Crystal, 11.0592MHz Nom; CategoryPassive components Crystal/resonator; File Size251KB，2 Pages; ManufacturerCTS

Download Datasheet Parametric View All

ATS111SML Overview

Parallel - Fundamental Quartz Crystal, 11.0592MHz Nom

ATS111SML Parametric

Parameter Name	Attribute value
Maker	CTS
Reach Compliance Code	unknown
Other features	AT-CUT CRYSTAL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
JESD-609 code	e1
load capacitance	20 pF
Manufacturer's serial number	ATS-SM
Installation features	SURFACE MOUNT
Nominal operating frequency	11.0592 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L11.1XB3.8XH5 (mm)/L0.437XB0.15XH0.197 (inch)
surface mount	YES
Terminal surface	TIN SILVER COPPER
Base Number Matches	1

Preview

Download Datasheet

View All

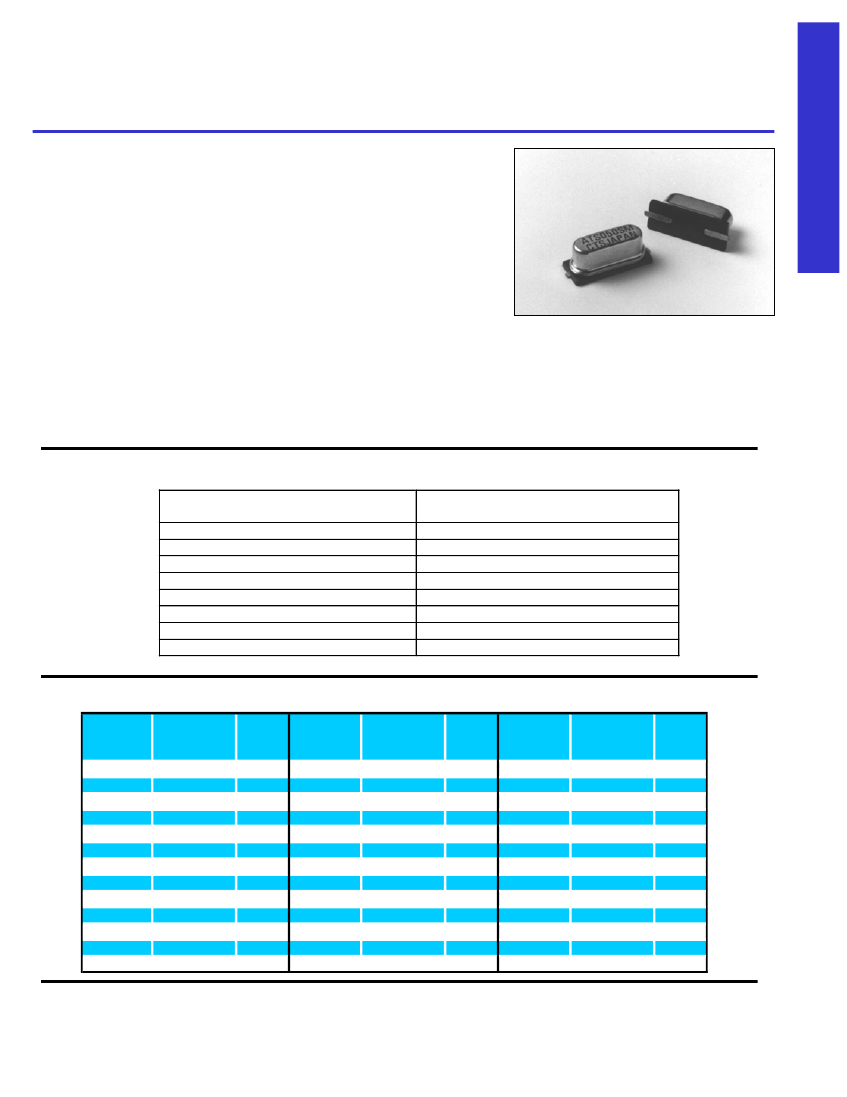

ATS/ATS-SM Series

COMMUNICATIONS COMPONENTS

Crystals

Features:

3.5 to 60 MHz

• Through Hole or Surface Mount

• Rugged Resistance Weld Seal

• Low Cost: AT-Cut Resonators

• Unique Frequencies or Tolerances also Available

CTS

CRYSTALS

•

Frequency Range:

These low profile AT-Cut crystals are ideal for dense board layouts or tight headroom limits.

These rugged (metal can) resistance weld seal parts have the same favorable temperature stability

as the full size MP-Series crystals and are available bulk packed or tape-and-reel loaded.

Electrical Specifications:

Parameter

Frequency Range

Calibration Tolerance

Temperature Stability

Operating Temperature Range

Operating Mode

Drive Level

Shunt Capacitance

Aging

Specification

3.5 - 60 MHz

±0.003%

(±30 ppm) at + 25°C

±0.005%

(±50 ppm) Ref. + 25°C reading

-20°C to +70°C (Std.) or -40°C to +85°C

Fundamental (or 3

O.T. as applicable)

100 Microwatts

7pF, Max

<5 ppm/Yr.

Example Part Numbers:

PART

FREQUENCY LOAD/

PART

FREQUENCY LOAD/

PART

FREQUENCY LOAD/

NUMBER

(MHz)

SERIES NUMBER

(MHz)

SERIES NUMBER

(MHz)

SERIES

ATS036

3.579545

18pF ATS08ASM 8.000000

20pF ATS08ASM 8.000000

20pF

ATS036SM 3.579545

18pF

ATS098

9.830400

20pF ATS143SM 14.318180 SERIES

ATS037

3.686400

20pF ATS098SM

9.830400

20pF

ATS15A

15.360000

20pF

ATS037SM 3.686400

20pF ATS10ASM 10.000000

20pF ATS15ASM 15.360000

20pF

ATS040

4.000000

20pF

ATS100

10.000000 SERIES ATS160

16.000000 SERIES

ATS040SM 4.000000

20pF ATS100SM 10.000000 SERIES ATS160SM 16.000000 SERIES

ATS042

4.915200

20pF

ATS111

11.059200

20pF

ATS200

20.000000 SERIES

ATS042SM 4.915200

20pF ATS111SM 11.059200

20pF ATS200SM 20.000000 SERIES

ATS050

5.068800

20pF

ATS120

12.000000 SERIES ATS204

20.480000

20pF

ATS050SM 5.068800

20pF ATS120SM 12.000000 SERIES ATS204SM 20.480000

20pF

ATS060

6.000000

20pF

ATS122

12.288000

20pF

ATS245

24.576000 SERIES

ATS060SM 6.000000

20pF ATS122SM 12.288000

20pF ATS245SM 24.576000 SERIES

ATS08A

8.000000

20pF

ATS143

14.318180 SERIES

171 Covington Dr. • Bloomingdale, IL 60108-3107

Phone 800-757-6686 • Fax 630-295-6608 • E-Mail: www.ctscorp.com
