WSM2-130FI: DescriptionRESISTOR, WIRE WOUND, 2W, 1%, 20ppm, 130ohm, SURFACE MOUNT, 4126, CHIP; CategoryPassive components The resistor; File Size484KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

WSM2-130FI Overview

RESISTOR, WIRE WOUND, 2W, 1%, 20ppm, 130ohm, SURFACE MOUNT, 4126, CHIP

WSM2-130FI Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1443583649
package instruction	, 4126
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	7.9
JESD-609 code	e3
Manufacturer's serial number	WSM
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
Rated power dissipation(P)	2 W
Rated temperature	25 °C
resistance	130 Ω
Resistor type	FIXED RESISTOR
size code	4126
surface mount	YES
technology	WIRE WOUND
Temperature Coefficient	20 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	100 V

Preview

Download Datasheet

View All

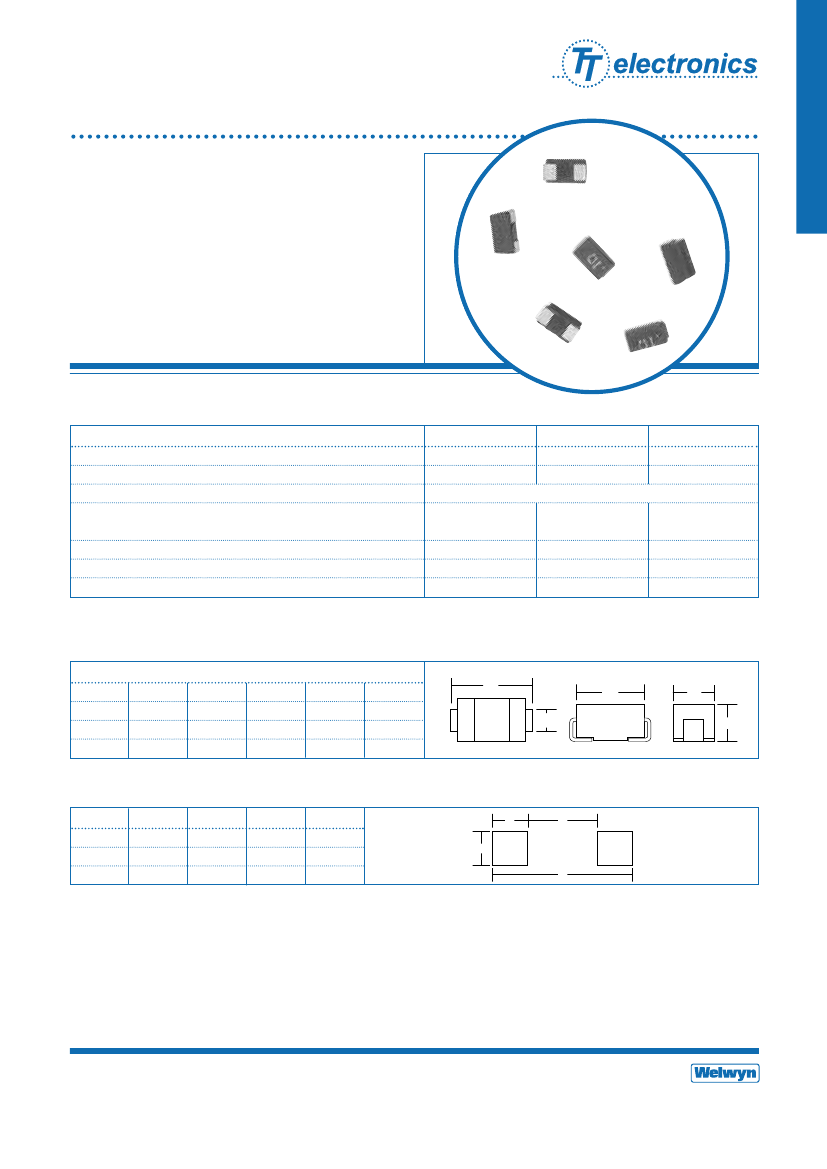

Moulded Surface Mount

Wirewound Resistors

WSM Series

Welwyn Components

•

Ideal for automatic pick and place

•

Direct replacement for Axial resistors

•

All welded construction

Electrical Data

WSM1

Power rating at 70°C

Resistance range

Limiting element voltage

TCR

Resistance tolerance

Standard values

Ambient temperature range

*Note 5% or 10% preferred below 0.1 ohms

°C

watts

ohms

volts

ppm/°C

%

< 1

Ω

: 100

≥

1

Ω

: 20

1

0R01 to 1K

WSM2

2

0R01 to 2K

100

< 1

Ω

: 100

≥

1

Ω

: 20

*1, 2, 5, 10

E24 preferred

-55 to 155

≤.03 Ω

700

≤0.1 Ω

: 200

≤10R

100

>10R 20

WSM3

3

0R01 to 3K

Physical Data

Dimensions (mm)

Type

WSM1

WSM2

WSM3

L max

7.9

12

18

I Nom

2.54

3.1

W Max

7

10.5

16

w Max

4.2

6.6

7

H Max

3.94

5.5

6.5

I

H

L

W

w

Recommended Pad Sizes

Type

WSM1

WSM2

WSM3

A

2.9

3.4

B

2.6

4.0

4.5

C

2.8

6

11

D

8.1

14

20

A

D

B

C

Construction

A high purity ceramic substrate is assembled with interference

fit end caps to which are welded the terminations. The

resistive element is wound on the substrate and welded to

the caps. The unit is then moulded.

Marking

WSM resistors are legend marked with type value and

tolerance.

WSM1 Resistors are marked with value and tolerance.

Solvent Resistance

Flammability

The resistor coating is a flame retardant epoxy to UL 94.

General Note

Welwyn Components reserves the right to make changes in product specification without notice or liability.

All information is subject to Welwyn’s own data and is considered accurate at time of going to print.

A subsidiary of

TT electronics plc

Issue C · 04.03

The body protection and marking are resistant to all normal

industrial cleaning solvents suitable for printed circuits.

· Bedlington, Northumberland NE22 7AA, UK

Telephone: +44 (0) 1670 822181 · Facsimile: +44 (0) 1670 829465 · Email: info@welwyn-tt.com · Website: www.welwyn-tt.com
