SCPG06KJ20-33SN(F80) datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SCPG06KJ20-33SN(F80)

Preview

SCPG06KJ20-33SN(F80): DescriptionMIL Series Connector, 11 Contact(s), Aluminum Alloy, Female, Clamp and Crimp Terminal, Plug; CategoryThe connector The connector; File Size143KB，1 Pages; ManufacturerSpacecraft Components Corp; Websitehttp://www.spacecraft.com

Download Datasheet Parametric View All

SCPG06KJ20-33SN(F80) Overview

MIL Series Connector, 11 Contact(s), Aluminum Alloy, Female, Clamp and Crimp Terminal, Plug

SCPG06KJ20-33SN(F80) Parametric

Parameter Name	Attribute value
Maker	Spacecraft Components Corp
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-5015
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	YES
Environmental characteristics	CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	SCPG06K
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	OLIVE DRAB CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	20
Termination type	CLAMP AND CRIMP
Total number of contacts	11
Base Number Matches	1

Preview

Download Datasheet

View All

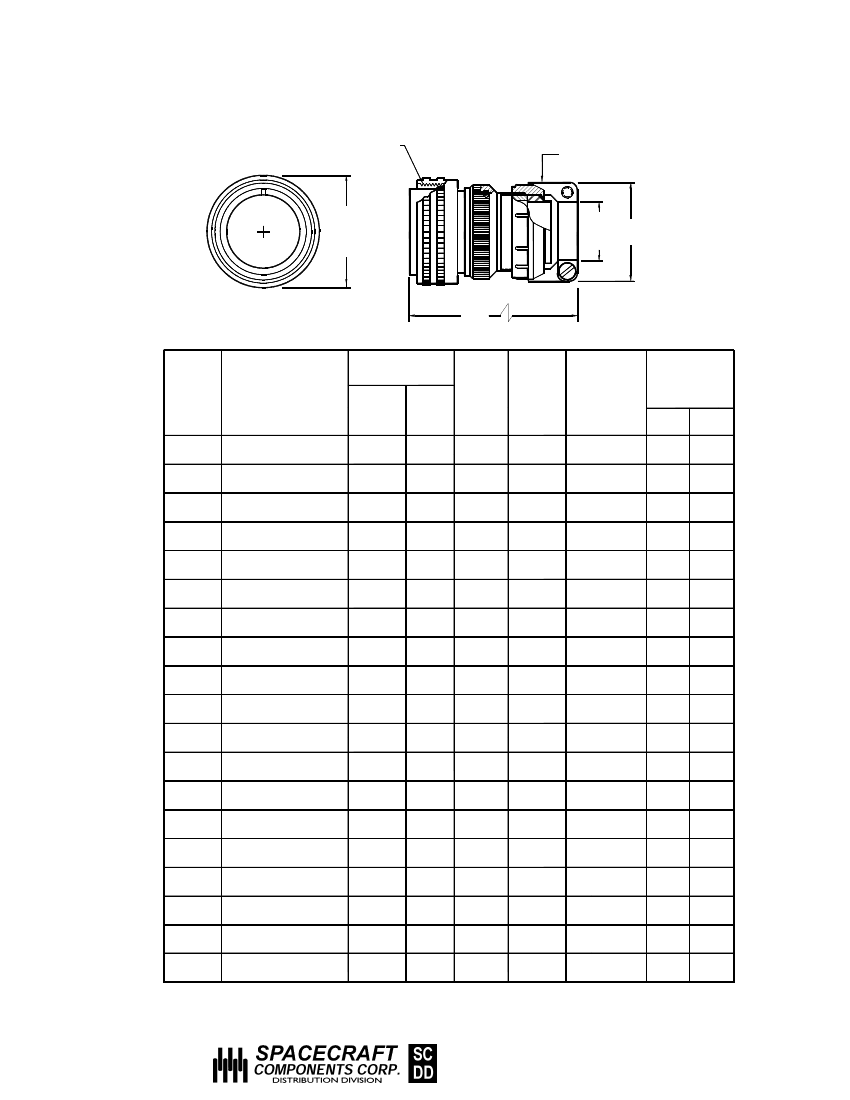

SCP06K, SCP06LCF(Z)

SCPG06K, SCPG06LCF(Z)

STRAIGHT PLUG

THREAD

A

MS3057-*C

CABLE CLAMP

Q

MAX.

Z

CABLE

RANGE

N

L

SHELL

SIZE

A

COUPLING THREAD

CLASS 2B

1/2-28 UNEF

5/8-24 UNEF

3/4-20 UNEF

7/8-20 UNEF

1-20 UNEF

1 1/8-18 UNEF

1 1/4-18 UNEF

1 3/8-18 UNEF

1 1/2-18 UNEF

1 3/4-18 UNS

2-18 UNS

2 1/4-16 UN

2 1/2-16 UN

2 3/4-16 UN

3-16 UN

MAX.

Z

LCF

N

MAX.

.812

[20.62]

.812

[20.62]

.937

[23.80]

.937

[23.80]

.937

[23.80]

1.062

[26.97]

1.062

[26.97]

1.188

[30.18]

1.188

[30.18]

1.312

[33.32]

1.562

[39.67]

1.562

[39.67]

1.750

[44.45]

1.750

[44.45]

2.250

[57.15]

2.375

[60.33]

2.625

[66.68]

2.812

[71.42]

3.312

[84.12]

K

SERIES

2.225

[56.52]

2.300

[58.42]

2.300

[58.42]

2.900

[73.66]

2.500

[63.50]

2.900

[73.66]

2.500

[63.50]

2.900

[73.66]

2.500

[63.50]

2.900

[73.66]

3.000

[76.20]

3.000

[76.20]

3.250

[82.55]

3.250

[82.55]

3.600

[91.44]

3.600

[91.44]

3.900

[99.06]

4.000

[101.60]

4.225

[107.32]

Q

MAX.

.844

[21.44]

.969

[24.61]

.969

[24.61]

1.062

[26.97]

1.062

[26.97]

1.156

[29.36]

1.156

[29.36]

1.250

[31.75]

1.250

[31.75]

1.344

[34.14]

1.469

[37.31]

1.594

[40.49]

1.719

[43.66]

1.969

[50.01]

2.219

[56.36]

2.469

[62.71]

2.719

[69.06]

3.000

[76.20]

3.250

[82.55]

CABLE

CLAMP

CABLE

RANGE

FREE

CLOSED

SERIES

4.00

[101.6]

4.00

[101.6]

4.00

[101.6]

4.50

[114.0]

4.00

[101.6]

4.50

[114.0]

4.00

[101.6]

4.50

[114.0]

4.00

[101.6]

4.69

[119.0]

4.69

[119.0]

4.69

[119.0]

4.90

[124.2]

5.125

[130.0]

5.39

[137.0]

5.67

[144.0]

5.67

[144.0]

8S

10S

10SL

12

12S

14

14S

16

16S

18

20

22

24

28

32

36

40

44

48

MS3057-3C

MS3057-4C

MS3057-6C

MS3057-8C

MS3057-10C

MS3057-12C

MS3057-16C

MS3057-20C

MS3057-24C

MS3057-28C

MS3057-32C

MS3057-40C

.219

[5.56]

.219

[5.56]

.312

[7.92]

.312

[7.92]

.312

[7.92]

.438

[11.13]

.438

[11.13]

.531

[13.49]

.531

[13.49]

.625

[15.88]

.750

[19.05]

.750

[19.05]

.938

[23.83]

.938

[23.83]

1.250

[31.75]

1.375

[34.93]

1.625

[41.28]

1.875

[47.63]

2.375

[60.33]

.031

[0.79]

.031

[0.79]

.094

[2.39]

.094

[2.39]

.094

[2.39]

.250

[6.35]

.250

[6.35]

.312

[7.92]

.312

[7.92]

.375

[9.52]

.500

[12.70]

.500

[12.70]

.594

[15.09]

.594

[15.09]

.938

[23.83]

.969

[24.61]

1.188

[30.18]

1.375

[34.93]

1.875

[47.63]

SCP3106K

*

1. DIMENSIONS IN BRACKETS [ ] ARE IN MILLIMETERS.

* CONSULT FACTORY.

3040 North Clayton Street

Phone: 702-851-7600

Email: space@spacecraft.com

North Las Vegas, NV 89032

Fax: 702-851-7620

Web: www.spacecraft.com

1A-33

MIL-DTL-5015 SERIES I SOLDER OR CRIMP (F80) CONTACTS
