DS3692NB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> DS3692NB

Preview

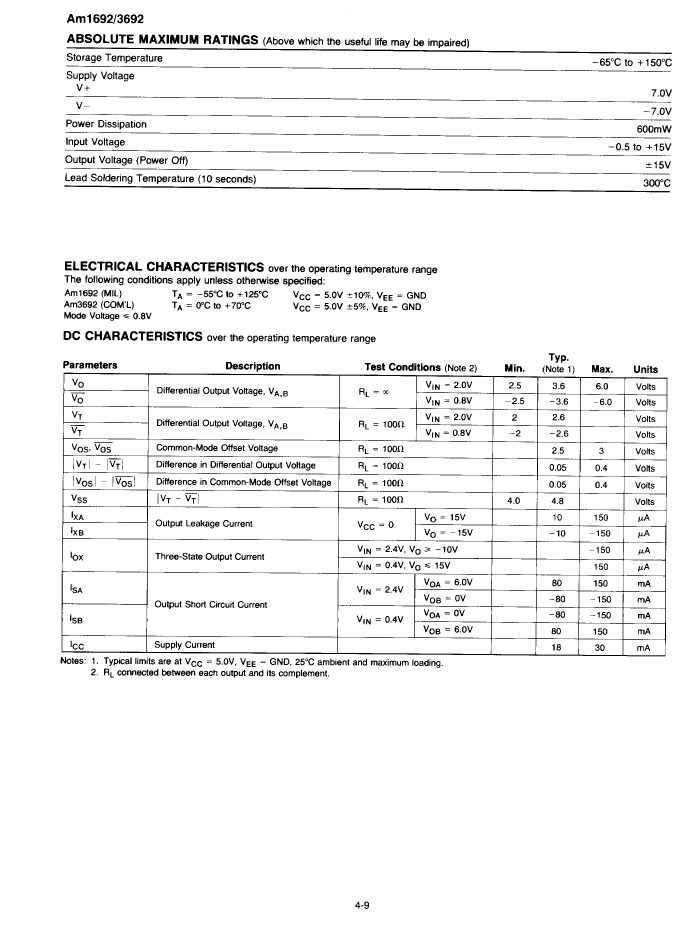

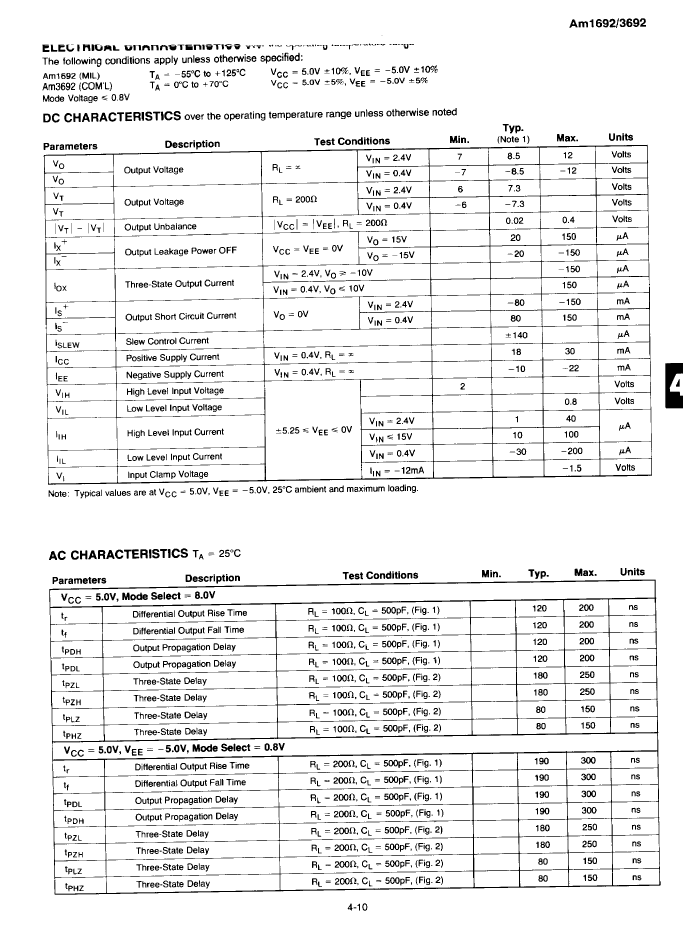

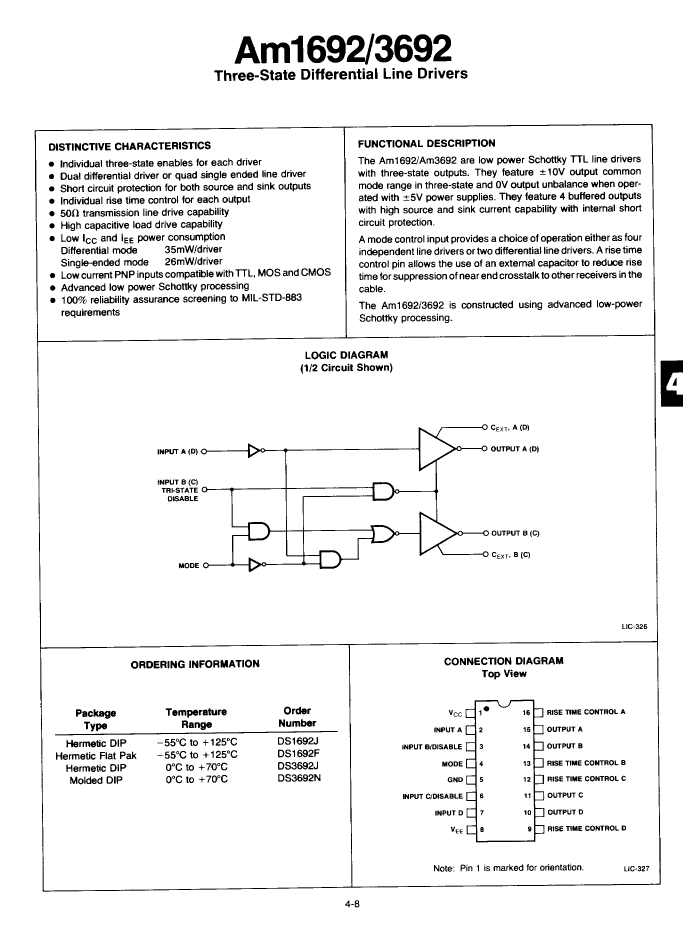

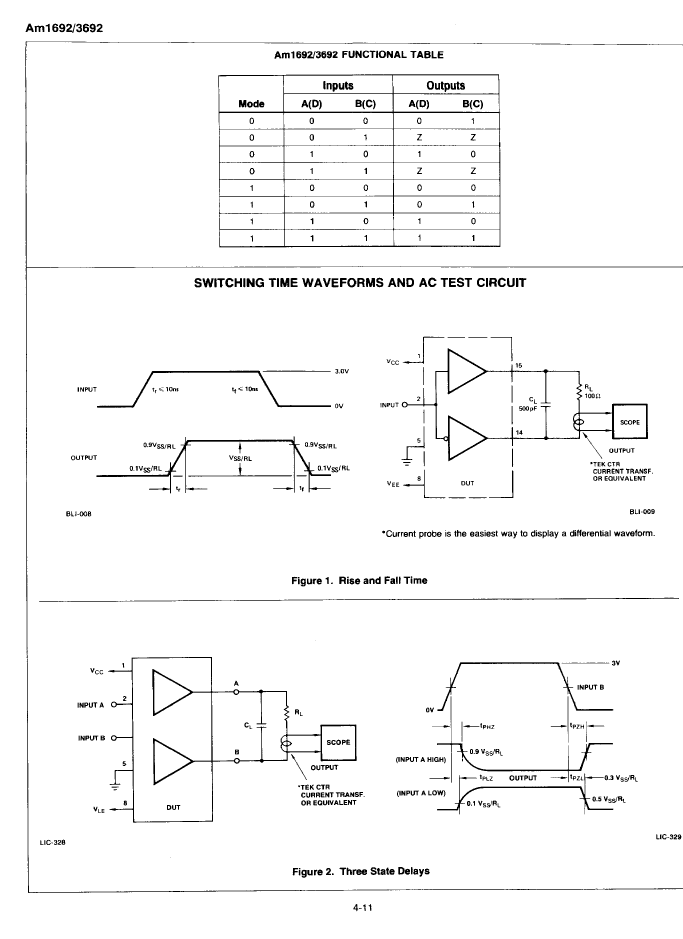

DS3692NB: DescriptionLine Driver/Receiver, 2 Driver, TTL, PDIP16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size246KB，5 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

DS3692NB Overview

Line Driver/Receiver, 2 Driver, TTL, PDIP16

DS3692NB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
ECCN code	EAR99
Differential output	YES
Number of drives	2
High level input current maximum value	0.00004 A
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Nominal negative supply voltage	-5 V
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Minimum output swing	2 V
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-5 V
Maximum receive delay
Nominal supply voltage	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
maximum transmission delay	300 ns
Base Number Matches	1

Preview

Download Datasheet

View All

DS3692NB Related Products

	DS3692NB	DS3692JTB	DS3692NT	DS3692JB	DS3692NTB	DS3692JT	DS1692JB	DS1692FB
Description	Line Driver/Receiver, 2 Driver, TTL, PDIP16	Line Driver/Receiver, 2 Driver, TTL, CDIP16	Line Driver/Receiver, 2 Driver, TTL, PDIP16	Line Driver/Receiver, 2 Driver, TTL, CDIP16	Line Driver/Receiver, 2 Driver, TTL, PDIP16	Line Driver/Receiver, 2 Driver, TTL, CDIP16	Line Driver/Receiver, 2 Driver, TTL, CDIP16	Line Driver/Receiver, 2 Driver, TTL, CDFP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	AMD	AMD	AMD	AMD	AMD	AMD	AMD	AMD
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Differential output	YES	YES	YES	YES	YES	YES	YES	YES
Number of drives	2	2	2	2	2	2	2	2
High level input current maximum value	0.00004 A	0.00004 A	0.00004 A	0.00004 A	0.00004 A	0.00004 A	0.00004 A	0.00004 A
JESD-30 code	R-PDIP-T16	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDFP-F16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Nominal negative supply voltage	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	125 °C	125 °C
Minimum output swing	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DFP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	FL16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK
power supply	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
maximum transmission delay	300 ns	300 ns	300 ns	300 ns	300 ns	300 ns	300 ns	300 ns
Base Number Matches	1	1	1	1	1	1	-	-
