85105-4610 datasheet, PDF - EEWORLD Datasheet

85105-4610: DescriptionBoard Connector, 93 Contact(s), 5 Row(s), Male, Straight, 0.098 inch Pitch, Press Fit Terminal, Locking Mech, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size177KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

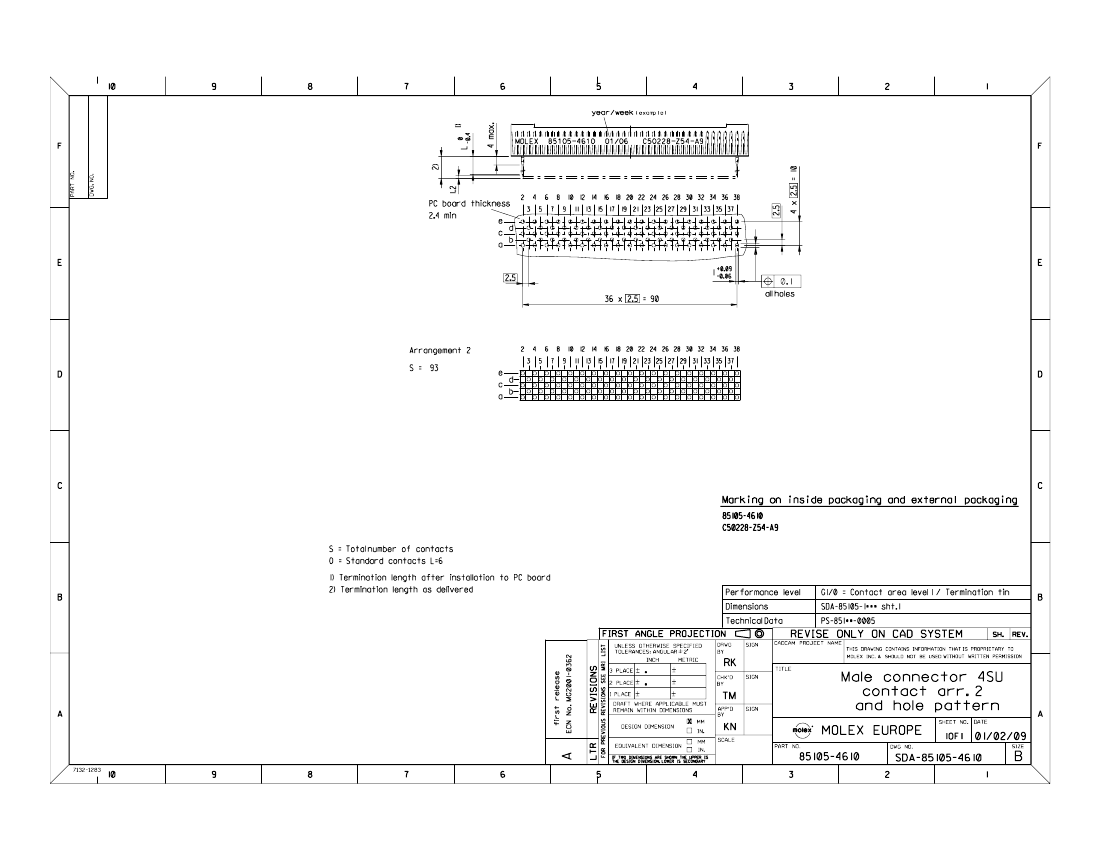

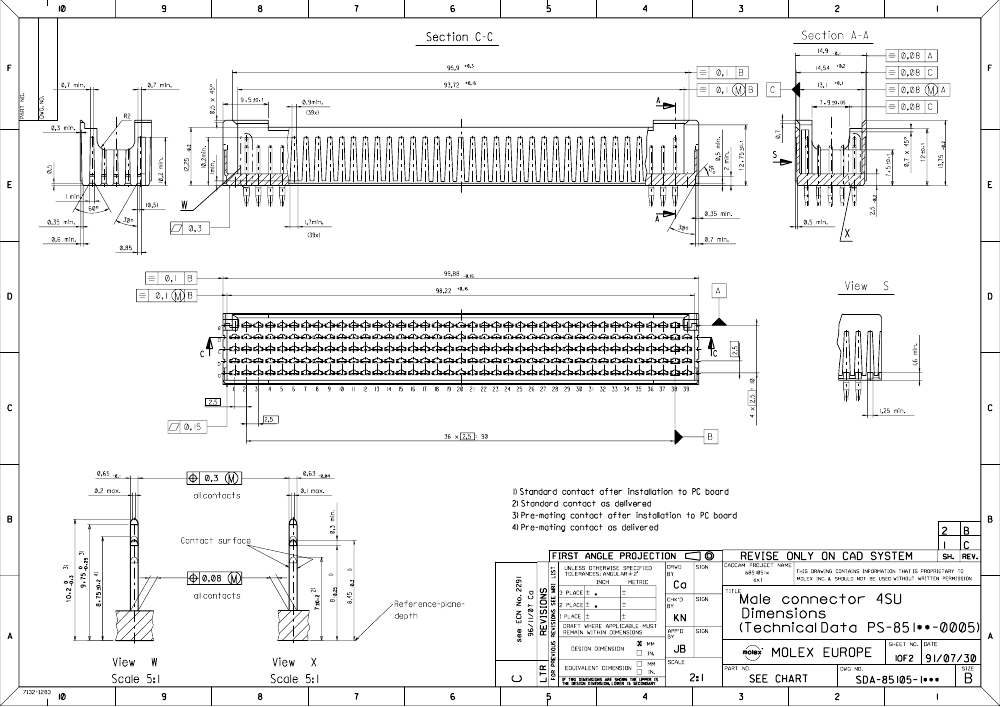

85105-4610 Overview

Board Connector, 93 Contact(s), 5 Row(s), Male, Straight, 0.098 inch Pitch, Press Fit Terminal, Locking Mech, Gray Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NUMBER OF STANDARD CNTS=93
body width	0.587 inch
subject depth	0.541 inch
body length	3.932 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	1000000000000 Ω
Insulator color	GRAY
insulator material	POLYCARBONATE
MIL compliance	NO
Manufacturer's serial number	85105
Plug contact pitch	0.098 inch
Match contact row spacing	0.098 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.4892 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.236 inch
Terminal pitch	5 mm
Termination type	PRESS FIT
Total number of contacts	93
UL Flammability Code	94V-0
Evacuation force-minimum value	.5838 N
Base Number Matches	1
