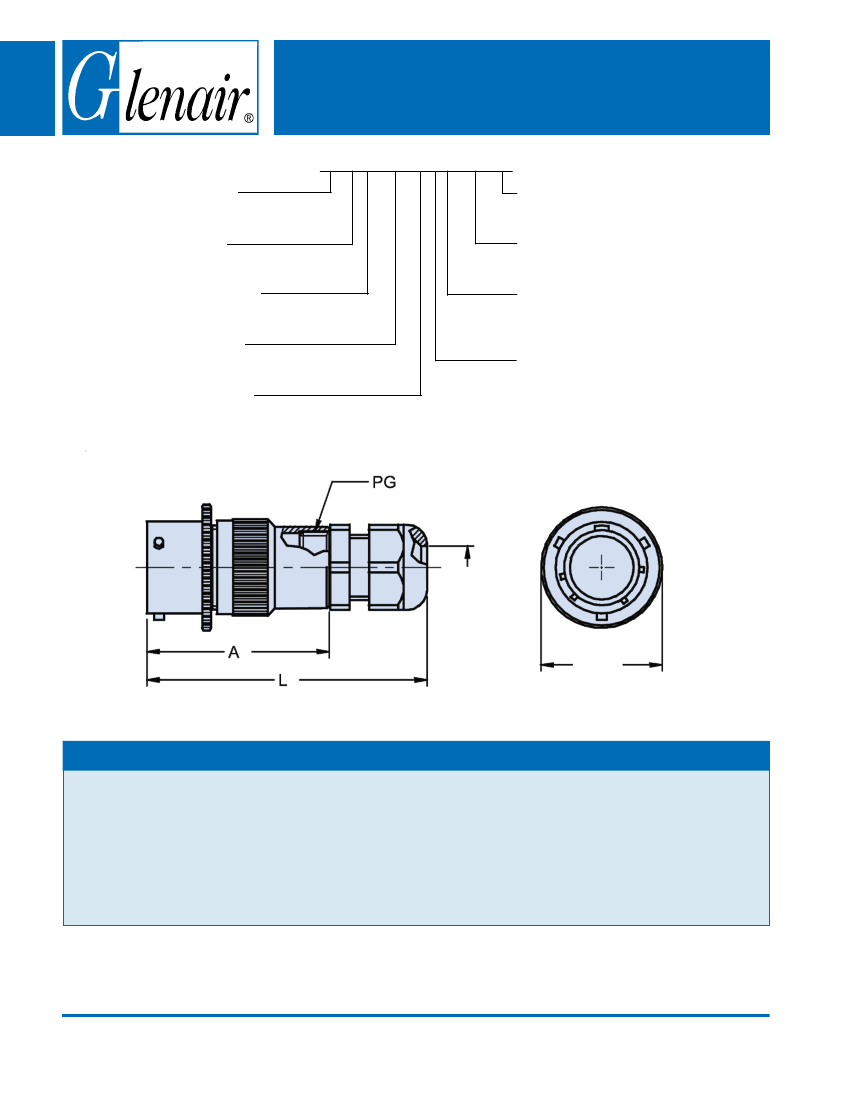

with Backshell and Plastic PG Cable Gland
IPT 01 A 18-11 S Z C PH16 XX
MIL-C-26482
Series l Type
01 - In-Line
Receptacle
Connector Class
A - Non-Environmental
Shell Size and
Insert Arrangements
Contact Gender
P - Pin
S - Socket
Mod Code Options
See Table II
PH Thread Size
See Table I
Contact Type
C - Crimp
(Omit for Solder Cup)
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal
IPT 01 A...PH_ _
In-Line Receptacle Connector
IPT Series
Bayonet Lock
Connectors
6. Standard insert is high insulation synthetic rubber.
© 2008 Glenair, Inc.
B
G
APPLICATION NOTES
1. In-line receptacle with backshell and plastic PG cable gland. Other types of PG adapters can be
supplied in various sizes and angles upon request.
2. Connector Class “A” (non-environmental)––no grommet supplied.
3. Standard materials configuration consists of aluminum alloy with stainless steel coupling pins.
4. Standard contact material consists of copper alloy with gold plating over nickel.
5. A broad range of other front and rear connector accessories are available. See our website and/or contact factory for complete information.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-42
with Backshell and Plastic PG Cable Gland
TABLE I: DIMENSIONS
Shell size
8
10
12
14
16
18
20
22
24
A
Max
40
40
40
45
45
45
52
60
60
B
min. - max.
3 - 6.5 / 4 - 8
4-8
5 - 10
5 - 10 / 6 - 12 / 9 - 14
5 - 10 / 6 - 12 / 9 - 14
6 - 12 / 9 - 14
6 - 12 / 9 - 14
6 - 12 / 9 - 14 / 13 - 18
6 - 12 / 9 - 14 / 13 - 18
PG
Thread
7/9
9
11
11 / 13.5 / 16
11 / 13.5 / 16
13.5 / 16
13.5 / 16
13.5 / 16 / 21
13 5 / 16 / 21
L
Max.
65
65
65
75
75
75
82
95
95
G
±0.1
17.3
21.8
25.1
28.6
30.6
33.2
36,5
39.6
43.1
TABLE II: MODIFICATION CODES
Shell Finish
(Omit for Standard Cad/Olive Drab Finish)
F2
- Bright Nickel Plating (RoHs)
F6
- Black Electrodeposited Paint (RoHs)
F7
- Black Zn-Co Plating (RoHs)
F8
- Olive Drab Zn-Co Plating
Assembly with Accessories
(Omit for Standard Version)
Key Polarization (Omit for
N
version)
W, X, Y, Z
= Alternates
N0
- Connector Less Backshell
NXXX
- Custom Designed Connector
STANDARD FINISHES (For QQ-A-591 Aluminum Shells)
Requirements
IAW RoHS
F2 Electrolytic Nickel F6 Black Non Conductive F7 Black Conductive
Thermal Shock
Salt Spray After
Thermal Shock
Electical Conductivity
Abrasion Resistance
-40°C + 100°C
24 hour
Very Good
Very Good
-55°C + 125°C
500 hour
NO
Very Good
-55°C + 125°C
500 hour
Very Good
Good
Not IAW RoHS
G3 Cadmium with Olive F8 Zinc Cobalt with
Drab Passivation
Olive Drab Passivation
-55°C + 125°C
500 hour
Very Good
Very Good
-40°C + 100°C
200 hour
Good
Good
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-43
IPT Series
Bayonet Lock
Connectors
IPT 01 A...PH_ _
In-Line Receptacle Connector
