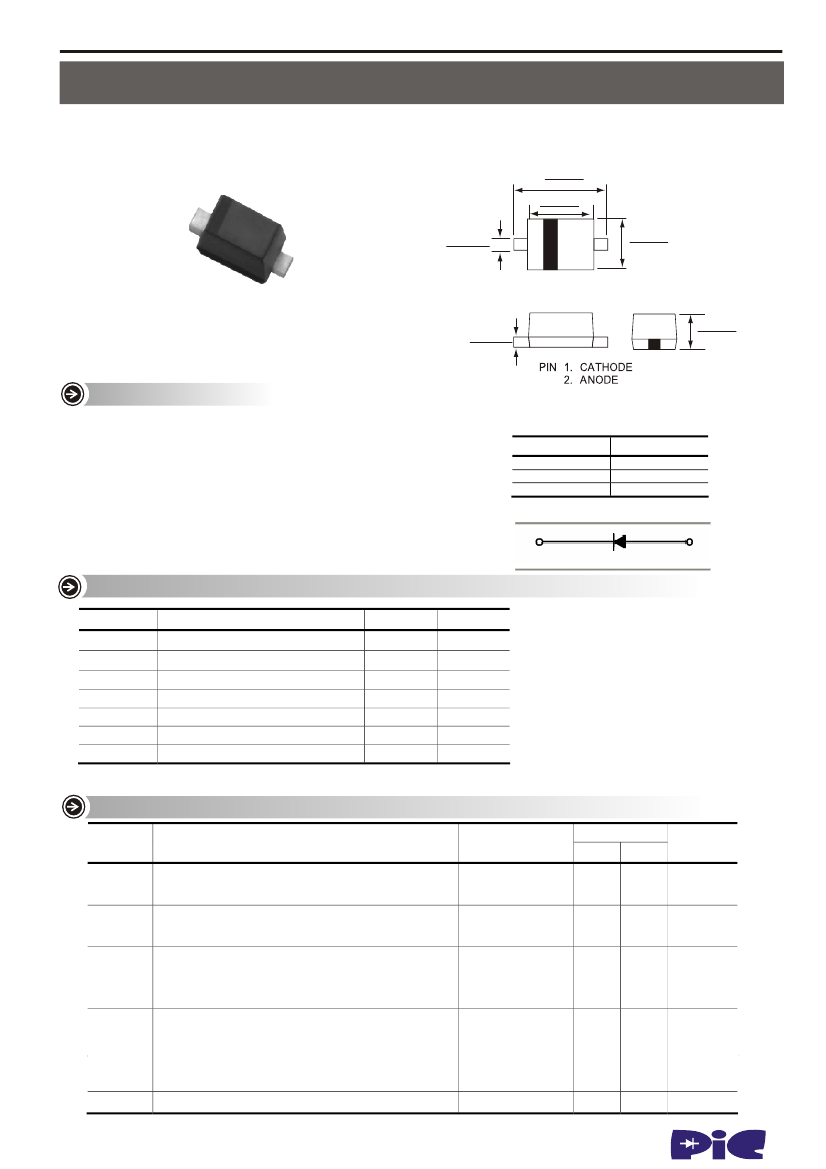

1N4148W/1N4448W/1N914BW
SURFACE MOUNT SWITCHING DIODES
SWITCHING DIODE 400mW AMPERRES 100 VOLTS
SOD-123
.140(3.55)
.152(3.85)
.102(2.60)
.110(2.80)
.018(0.45)
.026(0.65)
.028(1.50)
.067(1.70)
1
2
.003(0.08)
.006(0.15)
.031(0.80)
.039(1.00)
FEATURES
Fast Switching Device (T
RR
<4.0 nS)
General Purpose Diodes
Flat Lead SOD-123 Small Outline Plastic Package
Surface Device Type Mounting
Moisture Sensitivity Level 1
Clip Bonding Construction, Good Thermal Capability
Pb Free Version and RoHS Compliant
Matte Tin(Sn) Lead Finish with Nickel(Ni) Underplate
Band Indicates Cathode
Cathode
ELECTRICAL SYMBOL
Anode
DEVICE MARKING CODE:
Device Type
1N4148W
1N4448W
1N914BW
Device Marking
D1
D2
D3
Absolute Maximum Ratings
Symbol
P
D
T
STG
T
J
V
RSM
V
RRM
I
FRM
I
O
Parameter
Power Dissipation
T
A
= 25°C unless otherwise noted
Value
400
-65 to +150
+150
100
75
300
150
Units
mW
°C
°C
V
V
mA
mA
Storage Temperature Range
Operating Junction Temperature
Non-Repetitive Peak Reverse Voltage
Repetitive Peak Reverse Voltage
Repetitive Peak Forward Current
Continuous Forward Current
These ratings are limiting values above which the serviceability of the diode may be impaired.
ELECTRICAL CHARACTERISTICS
Tamb=25 C, unless otherwise specified
o
Symbol
B
V
Breakdown Voltage
Parameter
Test Condition
I
R
=100µA
I
R
=5µA
Limits
Min
100
Max
Unit
Volts
75
25
5
0.62
0.72
1.0
1.0
Volts
nA
µA
I
R
Reverse Leakage Current
V
R
=20V
V
R
=75V
V
F
Forward Voltage
1N4448W, 1N914BW
TC1N4448W,1N4148W
1N4448W, 1N914BW
I
F
=5mA
I
F
=10mA
I
F
=100mA
I
F
=10mA
I
R
=60mA
T
RR
Reverse Recovery Time
4
R
L
=100Ω
I
RR
=1mA
C
Capacitance
V
R
=0V, f=1M
HZ
4
nS
pF
www.paceleader.tw
1
1N4148W/1N4448W/1N914BW
SURFACE MOUNT SWITCHING DIODES
SWITCHING DIODE 400mW AMPERRES 100 VOLTS

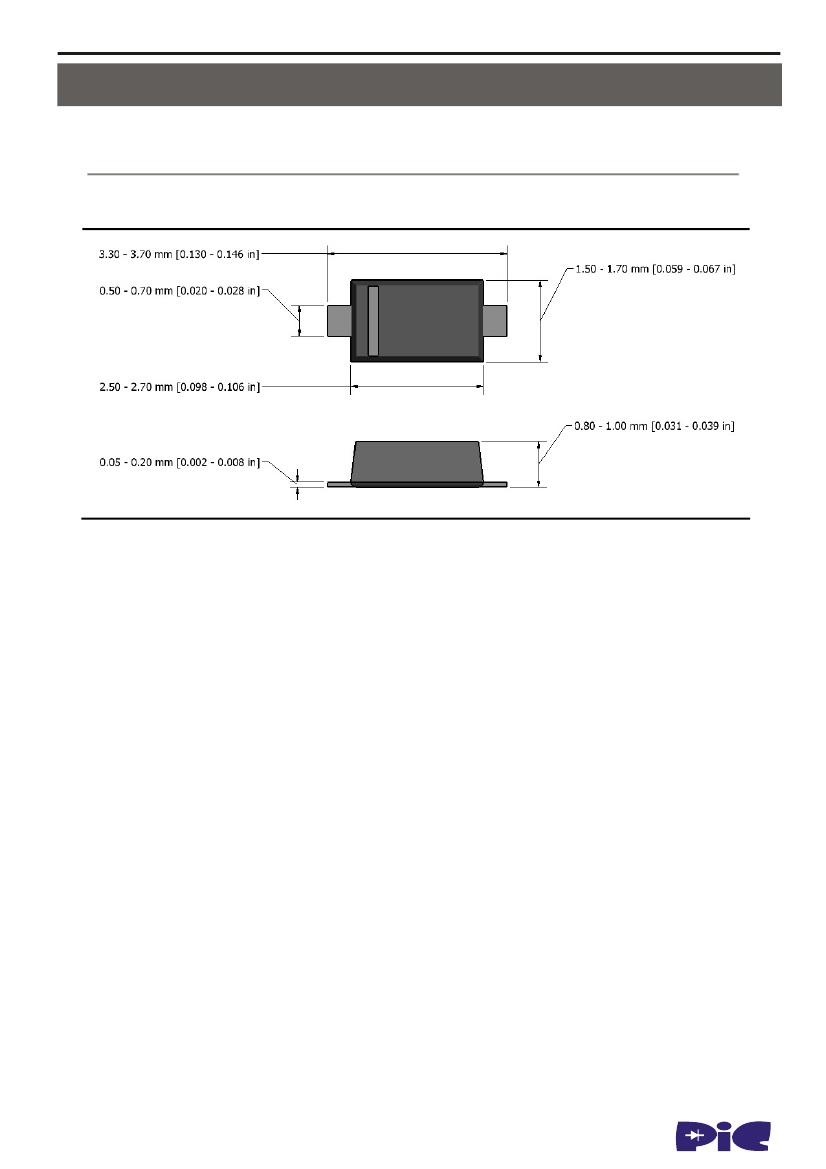

Flat Lead SOD-123 Package Outline
