3024-0-00-34-00-00-03-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 3024-0-00-34-00-00-03-0

Preview

3024-0-00-34-00-00-03-0: DescriptionPCB Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size287KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3024-0-00-34-00-00-03-0 Overview

PCB Terminal, ROHS COMPLIANT

3024-0-00-34-00-00-03-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Manufacturer's serial number	3024
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

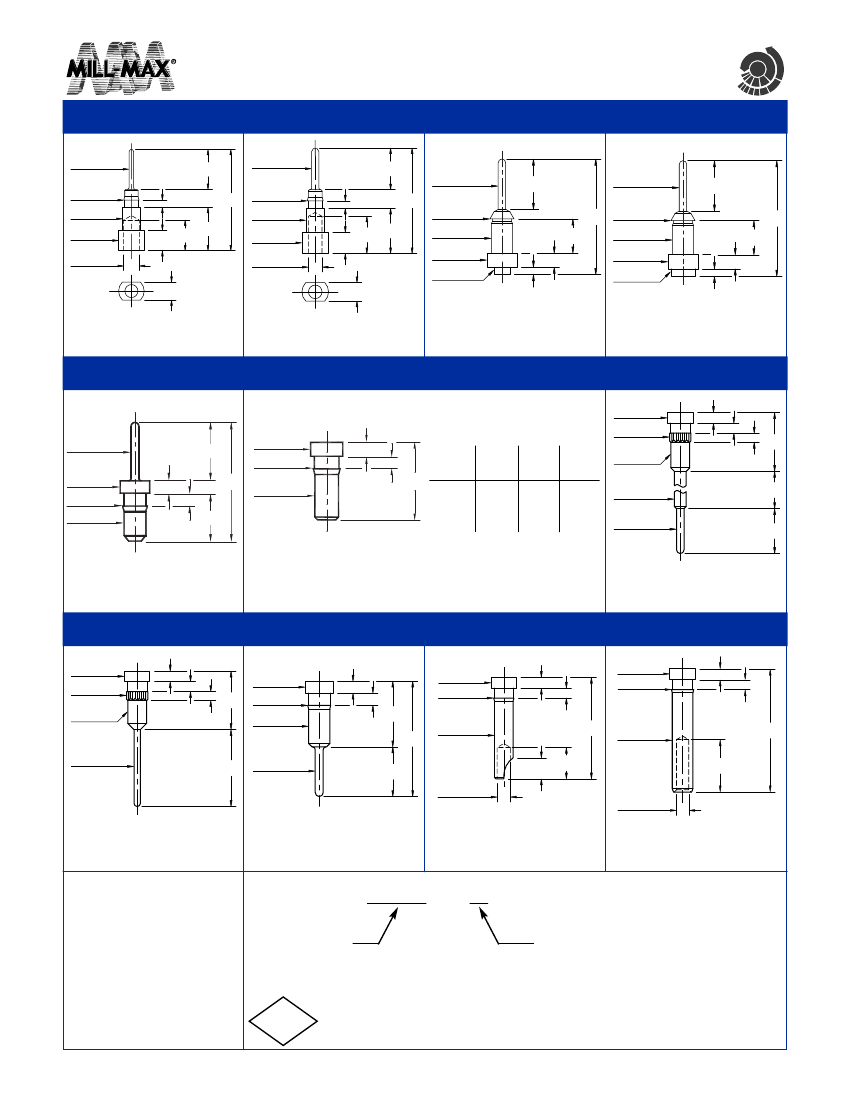

PRINTED CIRCUIT PINS

PR

E

CI

M

ON

S

I

CHI

A

PINS

NE

D

5102

0,46 DIA.

0,71

1,47 DIA.

1,78 DIA.

2,54 DIA.

1,57 DIA.

HOLE

1,78

2,03

3,05

4,32

10,08

3,99

1502

0,71 DIA.

0,71

1,47 DIA.

1,78 DIA.

2,54 DIA.

1,3 DIA.

HOLE

1,78

2,03

3,56

4,32

10,08

3,99

2956-0

0,46 DIA.

3,07

2956-1

0,46 DIA.

3,07

1,47 DIA.

1,3 DIA.

1,83 DIA.

0,97 DIA.

0,46

0,86

2,08

7,06

1,47 DIA.

1,3 DIA.

1,83 DIA.

1,6 DIA.

0,46

0,86

2,08

7,06

5102-0-00-XX-00-00-33-0

Press-fit in 1,45 mounting hole

1502-0-00-XX-00-00-03-0

Press-fit in 1,45 mounting hole

2956-0-00-XX-00-00-03-0

Surface mount

2956-1-00-XX-00-00-03-0

Surface mount

8876

0,48 DIA.

3,56

7,24

0,79

2,92

0259/0286/1941

1,83

DIA.

E

DIA.

1,35

DIA.

0,79

0,71

L

1938

1,83 DIA.

1,5 DIA.

KNURL

1,35 DIA.

0,76

0,71

0,64 4,19

1,80 DIA.

1,50 DIA.

1,35 DIA.

Basic

Part

Number

Length

L

Barb

Dia.

E

Mount-

ing

Hole

0,76

0259-0 4,39

0286-0 2,92

1941-0 4,29

1,57

1,52

1,47

1,5

1,45

0,86 DIA.

0,51 DIA.

7,01

3,2

8876-0-00-XX-00-00-03-0

Press-fit in 1,45 mounting hole

02XX-0-00-XX-00-00-03-0

Press-fit in 1,45/1,5 mounting hole

1938-0-00-XX-00-00-03-0

Press-fit in 1,45 mounting hole

1940

1,83 DIA.

1,5 DIA.

KNURL

1,35 DIA.

0,76

0,71

0,64 4,19

1942

1,78 DIA.

1,47 DIA.

1,35 DIA.

0,76

0,79

4,19

7,37

3024

1,83 DIA.

1,47 DIA.

0,79

0,71

3000

1,83 DIA.

1,63 DIA.

0,79

0,71

1,35 DIA.

7,37

1,5 DIA.

8,94

0,46 DIA.

5,51

0,51 DIA.

3,18

1,52

0,97 DIA.

HOLE

2,29

3,81

0,89 DIA.

HOLE

1940-0-00-XX-00-00-03-0

Press-fit in 1,45 mounting hole

1942-0-00-XX-00-00-03-0

Press-fit in 1,45 mounting hole

3024-0-01-XX-00-00-03-0

Press-fit in 1,45 mounting hole

3000-0-00-XX-00-00-03-0

Press-fit in 1,55 mounting hole

SPECIFICATIONS

PIN MATERIAL:

Brass Alloy 360, 1/2 Hard

(Except Swage pins which

are annealed)

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±0,13

DIAMETERS: ±0,05

ANGLES:

± 2°

ORDER CODE: XXXX - X - 0X - XX - 00 - 00 - XX - 0

BASIC PART #



2002/95/EC

RoHS

SPECIFY PIN FINISH:

01

5,08μm TIN/LEAD OVER NICKEL

80

5,08μm TIN OVER NICKEL

(RoHS)

15

0,25μm GOLD OVER NICKEL

(RoHS)

21

0,51μm GOLD OVER NICKEL

(RoHS)

34

1,27μm GOLD OVER NICKEL

(RoHS)

w w w. m i l l - m a x . c o m

185



516-922-6000

3024-0-00-34-00-00-03-0 Related Products

	3024-0-00-34-00-00-03-0	3024-0-00-01-00-00-03-0	3024-0-00-15-00-00-03-0	3024-0-00-80-00-00-03-0	3024-0-00-21-00-00-03-0
Description	PCB Terminal, ROHS COMPLIANT	PCB Terminal	PCB Terminal, ROHS COMPLIANT	PCB Terminal, ROHS COMPLIANT	PCB Terminal, ROHS COMPLIANT
Is it lead-free?	Lead free	Contains lead	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	incompatible	conform to	conform to	conform to
Reach Compliance Code	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	3024	3024	3024	3024	3024
terminal gender	MALE	MALE	MALE	MALE	MALE
Terminal and terminal strip types	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL
Base Number Matches	1	1	1	1	1
package instruction	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
