XG4700M25-1836 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> XG4700M25-1836

XG4700M25-1836: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 4700uF; CategoryPassive components capacitor; File Size144KB，3 Pages; ManufacturerYELLOW STONE CORP.; Websitehttp://www.ystone.com.tw/

Download Datasheet Parametric View All

XG4700M25-1836 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 4700uF

XG4700M25-1836 Parametric

Parameter Name	Attribute value
Objectid	1215613778
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	4700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	18 mm
dielectric materials	ALUMINUM
length	36 mm
Manufacturer's serial number	XG(25V)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
series	XG(25V)
Terminal pitch	7.5 mm

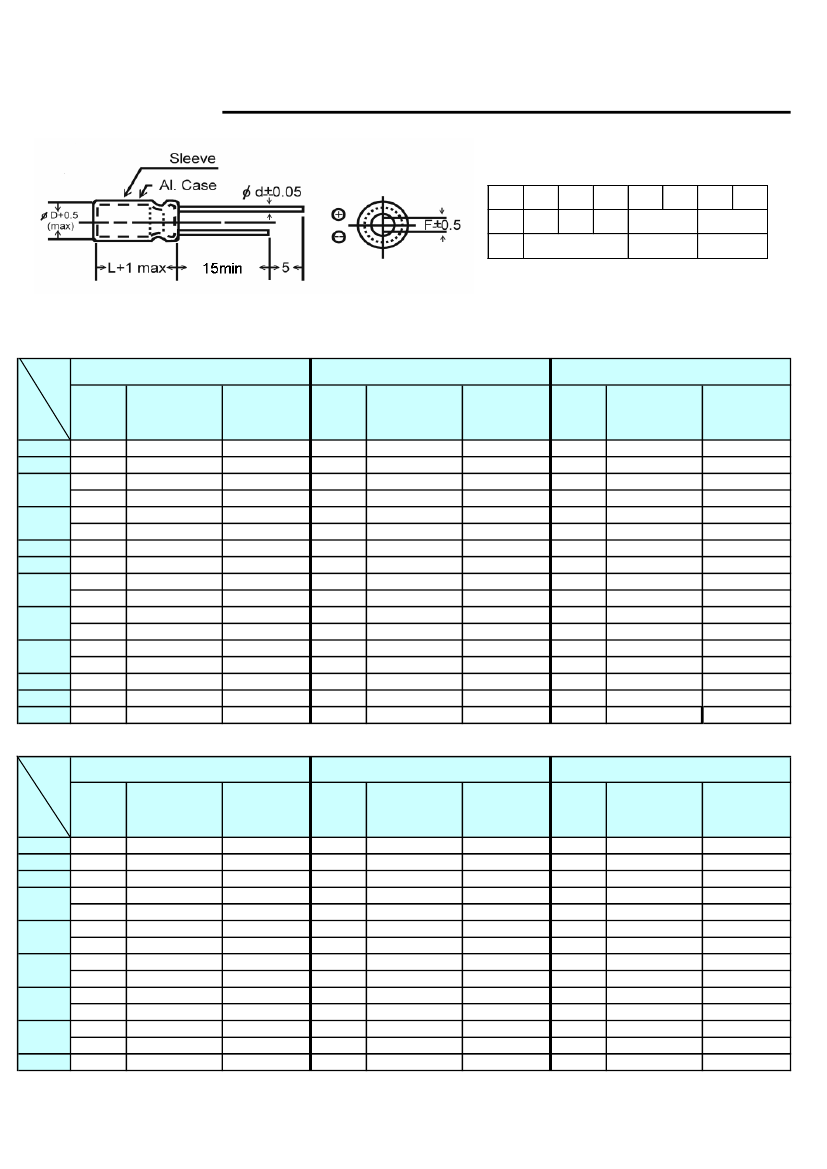

Preview

Download Datasheet

View All

Aluminum Electrolytic Capacitors

Features

‧Load

Life of 2000 hours at 105℃

‧High

reliability, suitable for switching power supplies.

Specification

Items

Capacitance Tolerance

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Leakage Current (at 25℃)

Series

Performance

(at 120Hz, 25℃)

6.3 to 100 VDC

160 to 450 VDC

1 to 15000 uF

0.47 to 220 uF

-40 to + 105℃

-25 to 105℃

CV≦1000; I≦0.03CV (uA)

I≦0.01 CV or 3 (uA), whichever is greater.

CV＞1000;

I≦0.03CV + 10uA

After 2 minutes application of working voltage.

I= Leakage current (uA), C= Rated capacitance (uF), V= Rated voltage (V)

Rate Voltage

6.3 10 16 25 35 50 63 100 160 200 250 350 400 450

Tanδ (max)

0.22 0.19 0.16 0.14 0.12 0.10 0.10 0.10 0.20 0.20 0.20 0.24 0.24 0.24

For capacitance

＞1000uF,

add 0.02 per 1000uF increase.

±20％　

Dissipation Factor

(Tan

at 120Hz, 25℃)

Impedance ration max.

Low Temperature

characteristics (at 120Hz)

Rate Voltage 6.3

-25℃/25℃ 6

-40℃/25℃ 10

63 100 160 200 250 350 400 450

Load Life

Shelf Life

Application of W.V. at +105℃, the capacitor shall meet the following limits.

2000 hours for

ψD≧10

Test Time

：

1000 hours for ψD≦8

Capacitance change

：

≦±25%

of initial value

Dissipation factor

：

≦200%

of initial specified value

Leakage Current

：

≦Initial

specified value

After storage for 500 hours at 105℃, with no voltage applied and being stabilixed at

+ 25℃, Capacitor shall meet the limit specifed in load life.

Freq.(Hz)

60(50)

0.40

0.60

0.65

0.75

1.8

120

0.55

0.70

0.75

0.80

0.75

0.85

0.90

0.95

1.5

10K

0.90

0.95

0.98

1.00

105

1.0

100K

1.00

Ripple Current &

Frequency Multipliers

Cap.(uF)

Under 33

47 to 330

470 to 1000

1200 up above

Temperature (℃)

Multiplier

Ripple Current &

Temperature Multipliers
