TB200-03L2QC16 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> TB200-03L2QC16

TB200-03L2QC16: Description20 A, BARRIER STRIP TERMINAL BLOCK, 2 ROWS, 1 DECK; CategoryThe connector; File Size338KB，2 Pages; ManufacturerCooper Industries

Download Datasheet Parametric View All

TB200-03L2QC16 Overview

20 A, BARRIER STRIP TERMINAL BLOCK, 2 ROWS, 1 DECK

TB200-03L2QC16 Parametric

Parameter Name	Attribute value
Objectid	1676061015
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	94V-0
Fastening method	SCREW
Manufacturer's serial number	TB200
Number of layers	1
Rows	2
Number of channels	3
Rated current	20 A
Rated voltage	300 V
safety certificate	UL; CSA; CE; IEC
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	12 AWG

Preview

Download Datasheet

View All

INDEX

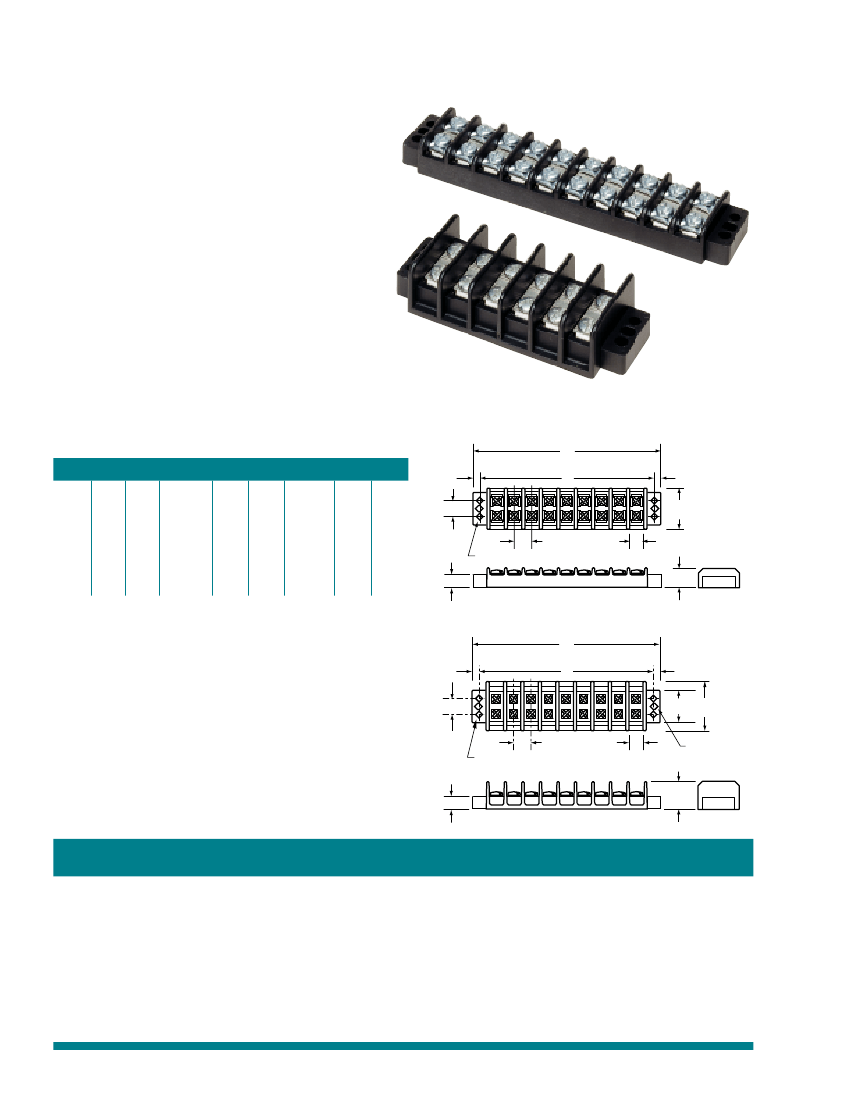

Series TB200 & TB200HB

Double Row Terminal Blocks

SPECIFICATIONS

Rating: TB200 – 20A, 300V*

TB200HB – 20A, 600*.

Center Spacing: .437” or 7/16” (11.10 mm)

Wire Size: #12 - 22 AWG CU

Screw Size: #6-32 philslot screws

Torque Rating: 9 in-lb. max.

Distance Between Barriers: .353” (8.97 mm)

Mounting: #6 screws

Materials: Molded base: Black, UL rated 94VO thermoplastic

Terminal plating: Tin over brass; Screws: Zinc plated steel

Operating Temperature: 130°C (260°F) max., -40°C (-40°F) min.

Breakdown Voltage: 4800V rms

Approvals: UL E62622; CSA LR15364; IEC Compliance;

CE Certified

* Max. rating shown; some options may be rated lower - consult factory.

TB200-065P

TB200HB-06

TB200

Inches (mm)

Poles

1.63

2.07

2.51

2.94

3.38

3.82

4.25

4.69

5.13

5.57

1.31

1.75

2.18

2.62

3.06

3.50

3.93

4.37

4.81

5.25

Poles

6.00

6.44

6.87

7.31

7.75

8.19

8.62

9.06

9.50

9.94

5.68

6.12

6.56

7.00

7.43

7.87

8.31

8.75

9.18

9.62

Poles

10.37

10.81

11.25

11.68

12.12

12.56

13.00

13.44

13.87

10.06

10.50

10.93

11.37

11.81

12.25

12.68

13.12

13.56

.16

(4.0)

.16

(4.0)

1.12

(28.4)

.44 (11.2)

.17 dia.

(4.3)

.31 (7.8)

.437

(11.1)

.353

(8.9)

.56

(14.2)

* Dimensions in inches. To convert to millimeters, multiply by 25.4.

TB200HB

.16

(4.0)

.16

(4.0)

.44 (11.2)

.90

1.37

(22.8) (34.8)

.17 dia.

(4.3)

.437

(11.1)

.353

(8.9)

.17 x .22 slots

(4.3 x 5.6)

.33 (8.4)

.75

(19.0)

Part Numbering System

Series

T B 2 0 0

nnnnnnn n n

200 - Standard

200HB - High barrier

02 to 30

Poles

Screw Options

Marking

Hardware Options

Blank - std. screws

00 - screws shipped bulk

B - brass philslot, nickel plated

BS - brass Sems philslot, zinc plated

SP - steel Sems philslot, zinc plated

ST - stainless steel, philslot

L1 to L6 - std. marking

Marker strips (pg 33)

Covers (pg 32)

nnnn

QC1 to QC20 - quick connects

Cooper Bussmann

7300 W. Wilson Ave

Chicago, IL 60656-4708

Fax: 708-867-2211

Phone: 708-867-4600

Website: http://www.busscc.com
