8157-50265: DescriptionD Type Connector, 26 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size74KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

8157-50265 Overview

D Type Connector, 26 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle

8157-50265 Parametric

Parameter Name	Attribute value
Objectid	307793160
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MOUNTING CLIP
body width	0.429 inch
subject depth	0.203 inch
body length	1.465 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
insulator material	GLASS FILLED POLYETHYLENE
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	20u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.138 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26

Preview

Download Datasheet

View All

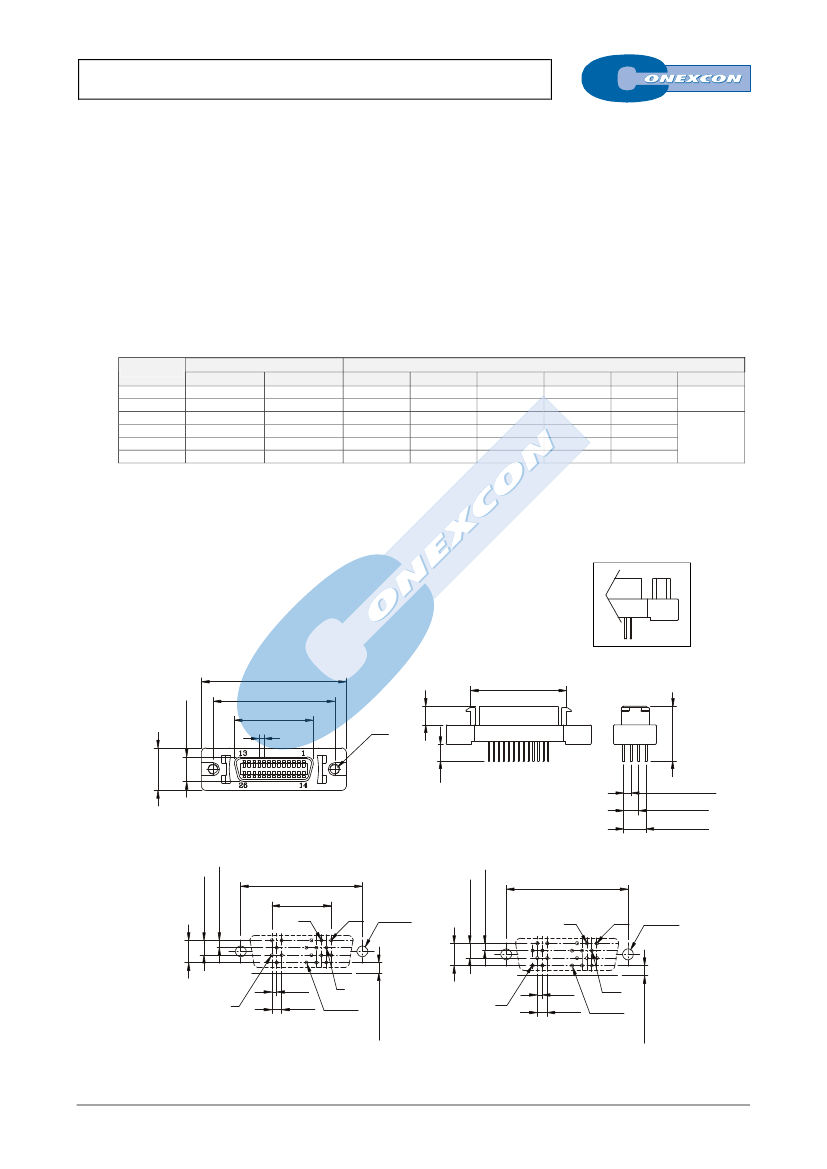

STRAIGHT DIP SOLDER PCB RECPTABLE

8157 SERIES.

Features

For PCB Solder.











For electric equipments of high reliability and high

density packaging

Staggered 4 rows of 2,54 mm (0,100”), spacing with row

to row distance of 1,905 mm (0,075”)

Mates with 8150 and 8151 series.

Easy to use latching system

(0ne-Touch-Lock)

For further advices, please contact our Sales Department

Ordering and Dimensional Information



Available in 14, 20, 26, 36, 50 and 68 circuits

Insulator Material: Thermoplastic with fibre glass; UL 94V-0

Contact Material : Phosphor Bronze

Available in different plating options

Ribbon contact design

Excellent shielding properties EMI/ ESD protection

Stable by hex srew lock

Shell: Cold rolled steel; nickel plated

Dimensional Information

Part Number

With Clip

8157 –

T014

8157 –

T020

8157 –

T026

8157 –

T036

8157 –

T050

8157 –

T068

With Nut

8157 –

T0145

8157 –

T0205

8157 –

T0265

8157 –

T0365

8157 –

T0505

8157 –

T0685

29.60

33.40

37.20

43.50

52.60

64.00

23.64

27.44

31.20

37.60

46.80

57.90

CIRCUITS

DIMENSIONS

12.63

16.44

20.25

26.60

35.40

46.90

17.08

20.60

24.70

31.00

40.10

51.00

7.65

11.43

15.24

21.60

30.48

41.91

4.75±0.15

5.30±0.15

T = Plating of the Pins



T =

Gold flash over

1.27 µ Ni.

T =

0.25 µ Gold over 1.27 µ Ni.



T =

0.50 µ Gold over 1.27 µ Ni.

T =

0.75 µ Gold over 1.27 µ Ni.

Version with Nut

Version with Clip

A±0.3

B±0.2

6.30±0.2

C±0.2

3.50±0.2

1.27

13.40±0.2

1.905±0.15

3.80±0.15

5.71±0.15

3.81±0.15

1.905±0.15

B±0.2

ø2.77

Último

circuito

ø0.85

MECANIZADO RECOMENDADO

(20, 36 y 68 circuitos)

D±0.2

10.90±0.3

3.81±0.15

1.905±0.15

B±0.2

E±0.1

ø2.77

5.71±0.15

ø0.85

5.71±0.15

2.40±0.15

Último

circuito

2.54

MECANIZADO RECOMENDADO

(14, 26 y 50 circuitos)

K-68

CATÁLOGO GENERAL

2.40±0.15

1.27

2.54
