990-52314100-110 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 990-52314100-110

990-52314100-110: DescriptionHeaders and Edge Type Connector,; CategoryThe connector The connector; File Size749KB，4 Pages; Manufacturerept Connectors; Websitehttps://www.ept.de; Environmental Compliance

Download Datasheet Parametric View All

990-52314100-110 Overview

Headers and Edge Type Connector,

990-52314100-110 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145208156261
Reach Compliance Code	compliant
ECCN code	EAR99
Contact completed and terminated	Tin (Sn)
JESD-609 code	e3

990-52314100-110 Preview

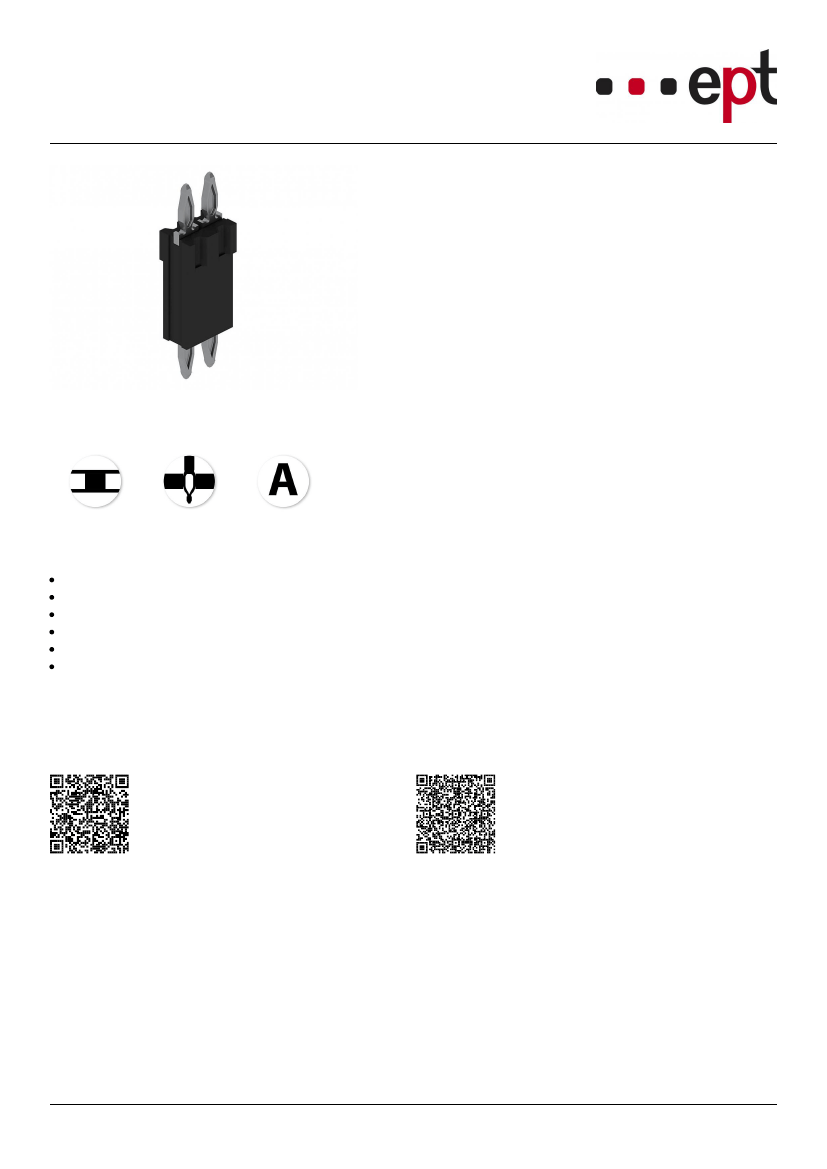

Product Data Sheet

flexilink b-t-b, 10 mm height,

Part No. 990-52XNN100-110

Illustration similar

Parallel

Press-fit

Power

10 mm height

for two-stage press-in operation

1 - 3 contact rows

space & cost saving

part number key: X = number of rows, NN = contacts per row

For requests please contact our sales department.

» to product on www.ept.de

» to product group flexilink board-to-board connector

Version from 02.08.2017, 04:14 - subject to change without notice

ept GmbH

www.ept.de

Page 1

Product Data Sheet

flexilink b-t-b, 10 mm height,

Part No. 990-52XNN100-110

Technical Specifications

Basics

No. of Contacts

Termination Technology

Board-to-Board Distance

Operating Temperature Range

Material

Insulator Material

Contact Material

Plating

Mechanical

Pitch

Electrical

Operational Current

max. 8 A at 20°C per pin (1x10 pins, height 15 mm)

max. 7 A at 20°C per pin (2x10 pins, height 15 mm)

max. 6 A at 20°C per pin (3x10 pins, height 15 mm)

min. 0.44 mm / 0.57 mm (within the row)

min. 1.94 / 2.07 mm (between the rows)

2.54 mm or individually assembled

PBT

Copper alloy

2 - 90

Press-fit

10 mm

-55°C to +125°C

Clearance and Creepage

Processing

Assembly

Approval / Compliance

UL file

Environment

manual / semi-automatic / fully automatic

UL (file: E130314)

RoHS compliant

Version from 02.08.2017, 04:14 - subject to change without notice

ept GmbH

www.ept.de

Page 2

Product Data Sheet

flexilink b-t-b, 10 mm height,

Part No. 990-52XNN100-110

Hole Specifications

Plated through-hole according to IEC 60352-5

Material

Nominal Hole

A PCB Thickness

B Plated Hole

C Drill Hole

D Cu Plating

E Surface

F Annular Ring

Material

Nominal Hole

A PCB Thickness

B Plated Hole

C Drill Hole

D Cu Plating

E Surface

F Annular Ring

imm. Sn printed circuit boards

Ø 1.0 mm

min 1.4 mm

Ø 1.0 +0.09 / -0.06 mm

1.15 ±0.025 mm

min. 25 µm

imm. Sn plating, max. 1.5 µm

min. 0.1 mm

Ni, Au printed circuit boards

Ø 1.0 mm

min 1.4 mm

Ø 1.0 +0.09 / -0.06 mm

1.15 ±0.025 mm

min. 25 µm

Ni, Au plating, 0.05 - 0.2 µm Au over 2.5 - 5

µm Ni

min. 0.1 mm

Version from 02.08.2017, 04:14 - subject to change without notice

ept GmbH

www.ept.de

Page 3

Product Data Sheet

flexilink b-t-b, 10 mm height,

Part No. 990-52XNN100-110

Modifications

Available on request

other pin configurations

Drawings

Component data in 2D and 3D format you can download here:

» PDF

Version from 02.08.2017, 04:14 - subject to change without notice

ept GmbH

www.ept.de

Page 4

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
