RN412DSTTE2151D15 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RN412DSTTE2151D15

RN412DSTTE2151D15: DescriptionFixed Resistor, Metal Film, 0.2W, 2150ohm, 150V, 0.5% +/-Tol, -15,15ppm/Cel,; CategoryPassive components The resistor; File Size701KB，1 Pages; ManufacturerKOA; Environmental Compliance

Download Datasheet Parametric View All

RN412DSTTE2151D15 Overview

Fixed Resistor, Metal Film, 0.2W, 2150ohm, 150V, 0.5% +/-Tol, -15,15ppm/Cel,

RN412DSTTE2151D15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	760842964
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Cylindrical
JESD-609 code	e3
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package diameter	1.1 mm
Package length	2.2 mm
Package shape	CYLINDRICAL PACKAGE
Package form	MELF
method of packing	TR, Embossed Plastic, 7 Inch
Rated power dissipation(P)	0.2 W
resistance	2150 Ω
Resistor type	FIXED RESISTOR
series	RN41
technology	METAL FILM
Temperature Coefficient	15 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Tolerance	0.5%
Operating Voltage	150 V

Preview

Download Datasheet

View All

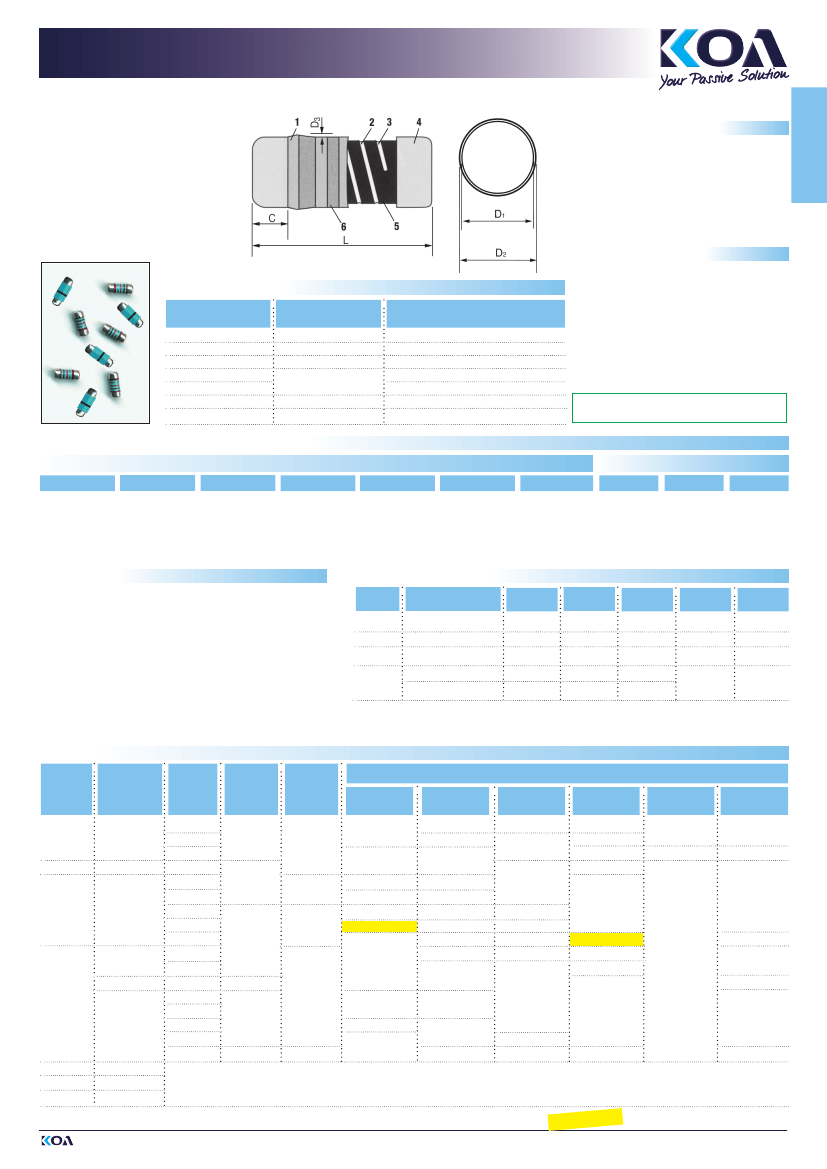

RESISTORS

METAL FILM • JUMPER

RN41 • CC

Protective coating

Trimming cut

Ceramic core

Cap (iron solder plated)

Metal film

Marking

STRUCTURE CC

IDENTIFICATION

TYPE

RN41 2DS

RN41 2A

RN41 2ES

RN41 2E

RN41 2H

RN41 3AS

CC-Series

COATING

COLOR

Clear

Blue

Blue (TCR 50)

Blue

Blue (TCR 50, 1%)

Blue-Green

MARKING

4 bands (E24); 5 bands (E96) color code

3 bands color code

5 bands color code (TCR50)

3 bands (E24); 4 bands (E96) color code

3 bands (E24) color code

5 bands color code (TCR50,1%)

One black band

Protective coating

No trimming cut

Ceramic rod

Cap (iron solder plated)

Copper film

Marking (see identification)

a TCR25 (pink or blue), TCR15 (violet); TCR10 and TCR5 (dark green)

b other TCR's: 4 bands (E24); 5 bands (E96) color code

c other TCR's and tolerances have green coating

with 4 bands (E24) or 5 bands (E96) color code

All these products have Pb-free terminations

and meet EU-RoHS and China-RoHS requirements

Contact our sales representatives before you use our products for applications including

automotives, medical equipment and aerospace equipment. Malfunction or failure of the

products in such applications may cause loss of human life or serious damage.

TYPE DESIGNATION (HOW TO ORDER)

RN41-SERIES

RN41

PRODUCT

CODE

2ES

STYLE

TERMINATION

SURFACE

MATERIAL

T: Sn

(lead free)

CC-SERIES

TAPING

TE: 7’’ reel (4 mm pitch)

3000 pcs. (sizes 0102, 0204)

1500 pcs. (size 0207)

TEB: 13’’ reel (4mm pitch)

9000 pcs. (size 0204 only)

1002

NOMINAL

RESISTANCE

B,C,D,F: 4 digits

G,J: 3 digits

RESISTANCE

TOLERANCE

B, C, D, F, G, J

T.C.R.

Unit: ppm/K

05, 10, 25, 50,

100, 200

CC25M

PROD.

CODE

TERMINATION

SURFACE

MATERIAL

T: Sn

(lead free)

TAPING

TE: 7’’ reel (4 mm pitch)

3000 pcs. (CC10, CC12)

1500 pcs. (CC25)

TEB: 13’’ reel (4mm pitch)

6000 pcs. (CC25 only)

for environmental hazardous material other

than the substance specified by EU-RoHS

FEATURES

■

High grade oxide ceramic core

■

Higher electrode strength and lower current

noise ratio than flat chip resistors

■

Operating temperature range: - 55° C ... + 125° C (+155°C)

■

High stability in short and long term tests

■

Rated ambient temperature: + 70° C

■

Standard size: 0102 (MICRO – MELF)

0204 (MINI – MELF)

0207 (MELF)

■

Meets or exceeds IEC 60115-8, JIS C 5201-8, EIAJ RC-2134A

■

Suitable for reflow, wave and iron soldering

■

Lab Kit available

DIMENSIONS (mm)

SIZE

0102

–

0204

0207

TYPE

RN41 2DS • CC10M

RN41 2A • CC10

RN41 2ES • CC12M

RN41 3AS • CC25M

RN41 2E/2H • CC25

∅

1.1 +0/-0.1

1.25 ± 0.05

1.4 ± 0.15

2.15 ± 0.15

2.2 ± 0.1

∅

1.10 Max.

1.35 Max.

1.55 Max.

2.40 Max.

∅

0.00 Max.

0.07 Max.

0.10 Max.

0.15 Max.

2.2 +0/-0.1 0.35 ~ 0.45

2.0 ± 0.1

0.3 Min.

3.5 ± 0.2

0.5 ~ 0.9

5.8 ± 0.3 0.5 ~ 1.45

5.9 ± 0.2

0.5 Min.

RATING

Specifications given herein may be changed at any time without prior notice.

Please confirm technical specifications before you order/or use.

SIZE

TYPE

T.C.R.

(ppm/K)

± 15

± 25

± 50

± 100

±5

± 10

± 15

± 25

± 50

± 25

± 50

± 200

±5

± 10

± 15

± 25

± 50

POWER

RATING*

MAX.

WORKING

VOLTAGE

RESISTANCE RANGE AND TOLERANCE

B (±0.1%)

E24 • E96

100Ω...100kΩ

C (± 0.25%)

E24 • E96

100Ω...100kΩ

100Ω...221kΩ

––

100Ω...100kΩ

100Ω...221kΩ

22Ω...221kΩ

22Ω...511kΩ

––

100Ω...100kΩ

––

10Ω...221kΩ

100Ω...604kΩ

––

100Ω...1MΩ

––

1Ω...5.11MΩ

––

10Ω...1MΩ

––

D (± 0.5%)

E24 • E96

100Ω...100kΩ

47Ω...221kΩ

F (± 1%)

E24 • E96

––

10Ω...221kΩ

10Ω...2.21MΩ

100Ω...100kΩ

G (± 2%)

E24

––

1Ω...9.1Ω

J (± 5%)

E24

––

0.22Ω …0.91Ω

0102

––

RN41 2DS

RN41 2A

0.2 W

150 V

––

100Ω...100kΩ

100Ω...221kΩ

43Ω...221kΩ

43Ω...511kΩ

––

0.125 W

100 V

200 V

0204

RN41 2ES

0.25 W

0.22Ω…0.91Ω

––

0.22Ω…100kΩ

RN41 2E

RN41 2H

0207

RN41 3AS

0.5 W

250 V

0.4 W

400 V

100Ω...100kΩ

100Ω...511kΩ

––

100Ω...100kΩ

100Ω...511kΩ

––

100Ω...511kΩ

1Ω...2.21MΩ

1Ω...1MΩ

0.1Ω...0.91Ω

0102 / -

0204

0207

CC10M • CC10

CC12M

CC25M • CC25

≤ 20 mΩ JUMPER

(max. current 2A for CC10 and CC12)

(max. current 5A for CC25)

* For resistors operated at an ambient temperature of +70°C or above, the power rating shall be derated.

Preferred

Revision: 25. May 2010

EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de

RESISTORS

MELF TYPE

STRUCTURE RN41
