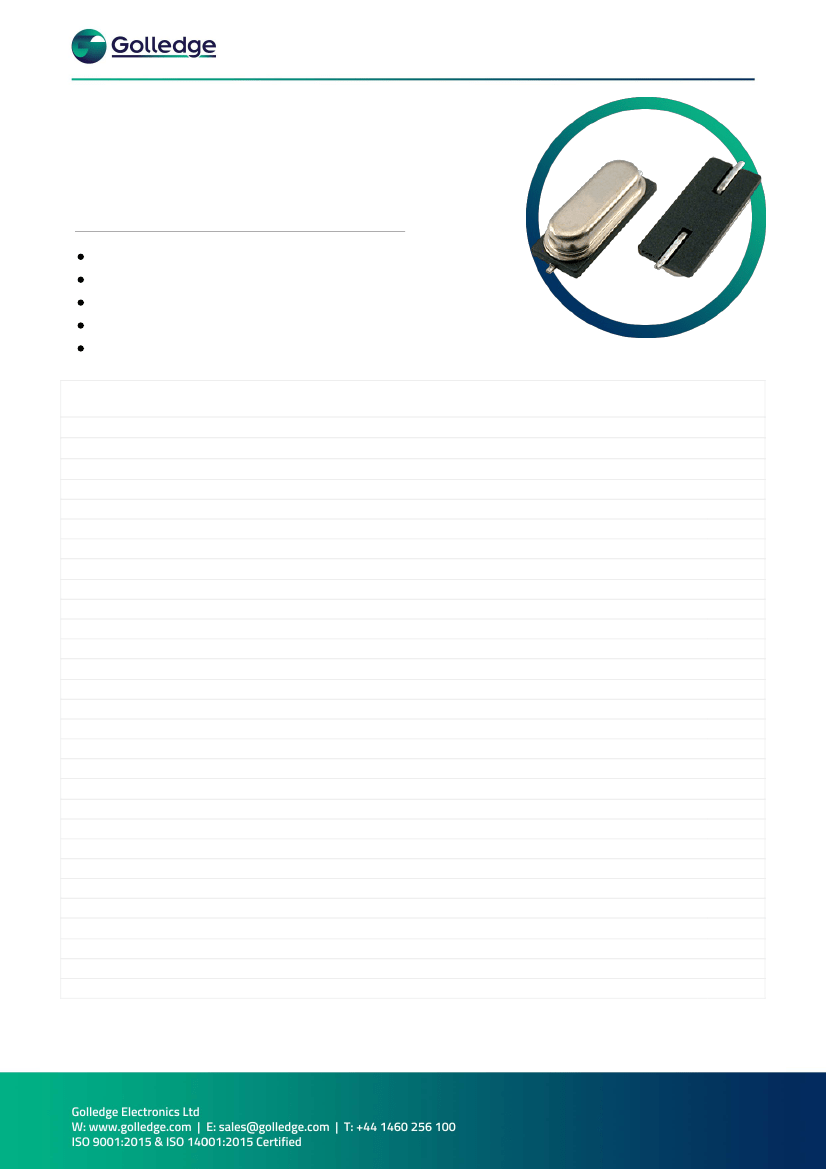

GSX49-3
1/5
GSX49-3
Low 3.2mm Profile Formed Lead SM
Crystal
Industry standard HC49 footprint
Low profile case for close board stacking
Wide frequency range
Fundamental mode available up to 50.0MHz
Low cost
CONFIGURABLE OPTIONS
Parameter
Frequency
Calibration tolerance
Any
±20ppm
±30ppm
±50ppm
Temperature stability
Any
±30ppm
±50ppm
±100ppm
Operating temperature range
Any
-10 to +60°C
-20 to +70°C
-30 to +80°C
-40 to +85°C
Circuit condition
Any
12pF
16pF
18pF
20pF
30pF
Oscillation mode
Any
Fundamental
3rd overtone
Option Code
2
3
5
3
5
C
1
2
3
4
B
D
E
F
J
F
3
v1.0
GSX49-3
2/5
SPECIFICATIONS
Frequency range
Dimensions
Package
Storage
temperature
range
Equivalent series
resistance
3.579 ~ 90.0MHz
11.4 x 4.7 x 3.2mm
HC49-3H SMD
-40 to +90°C
300
Ω
max (>3.1 ~ 3.5MHz)
150
Ω
max (>3.5 ~ 4.0MHz)
120
Ω
max (>4.0 ~ 4.4MHz)
100
Ω
max (>4.4 ~ 7.0MHz)
70
Ω
max (>7.0 ~ 10.0MHz)
50
Ω
max (>10.0 ~ 50.0MHz, fund)
100
Ω
max (>25.0 ~ 90.0MHz, 3rd OT)
7pF max
±3ppm max first year
100µW

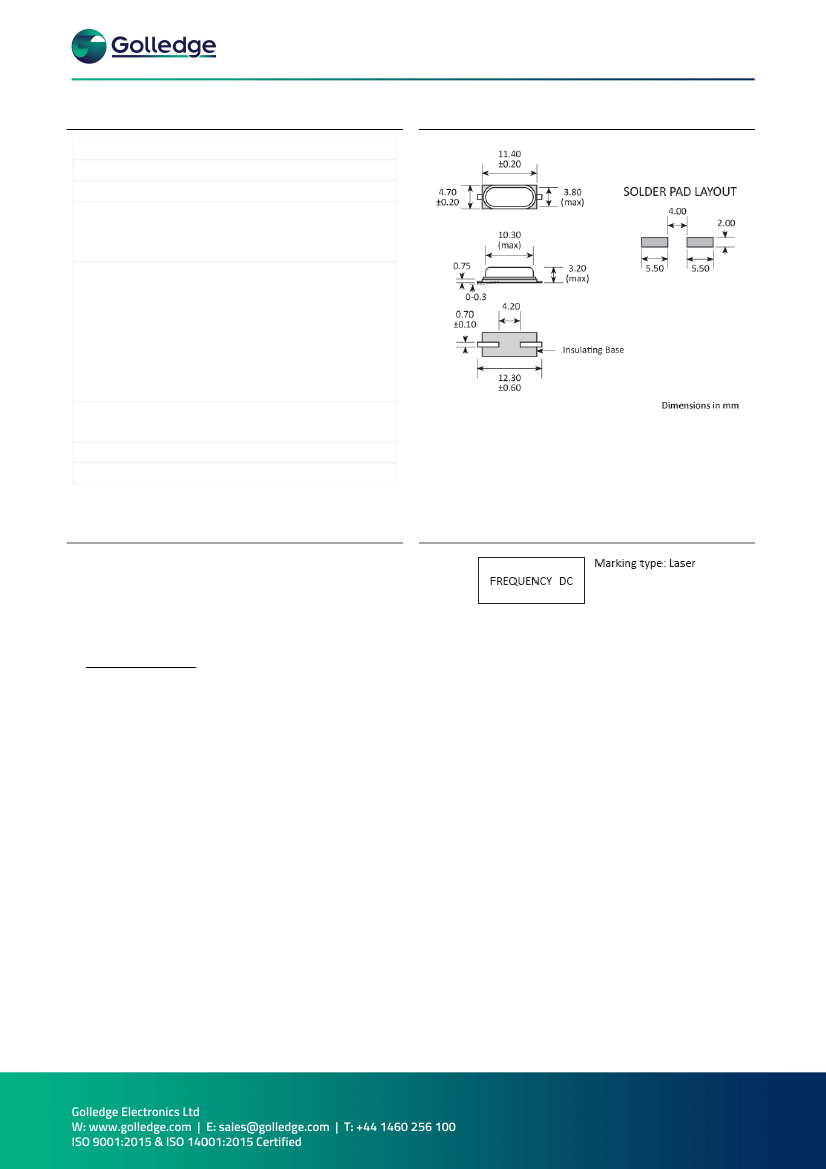

PACKAGE DRAWING
Static
capacitance (C
0
)
Ageing
Test drive level
ORDERING INFORMATION
To request a quotation for the GSX49-3 please use the
configurable options form to choose the options you require
and then submit your configured product to our team. Our
expert advisers are always happy to help with your
requirements and can be contacted on +44 1460 256 100 or
at sales@golledge.com.
Following product selection you will be issued with a seven
character Golledge part number. Your Golledge part number is
the internationally accepted Golledge manufacturing part
number (MPN) that should be used for all project
documentation, including bills of materials (BoMs) and
purchase orders.
If you have any queries regarding any of our documentation
our dedicated sales team will be happy to help.
MARKING
v1.0
GSX49-3
3/5

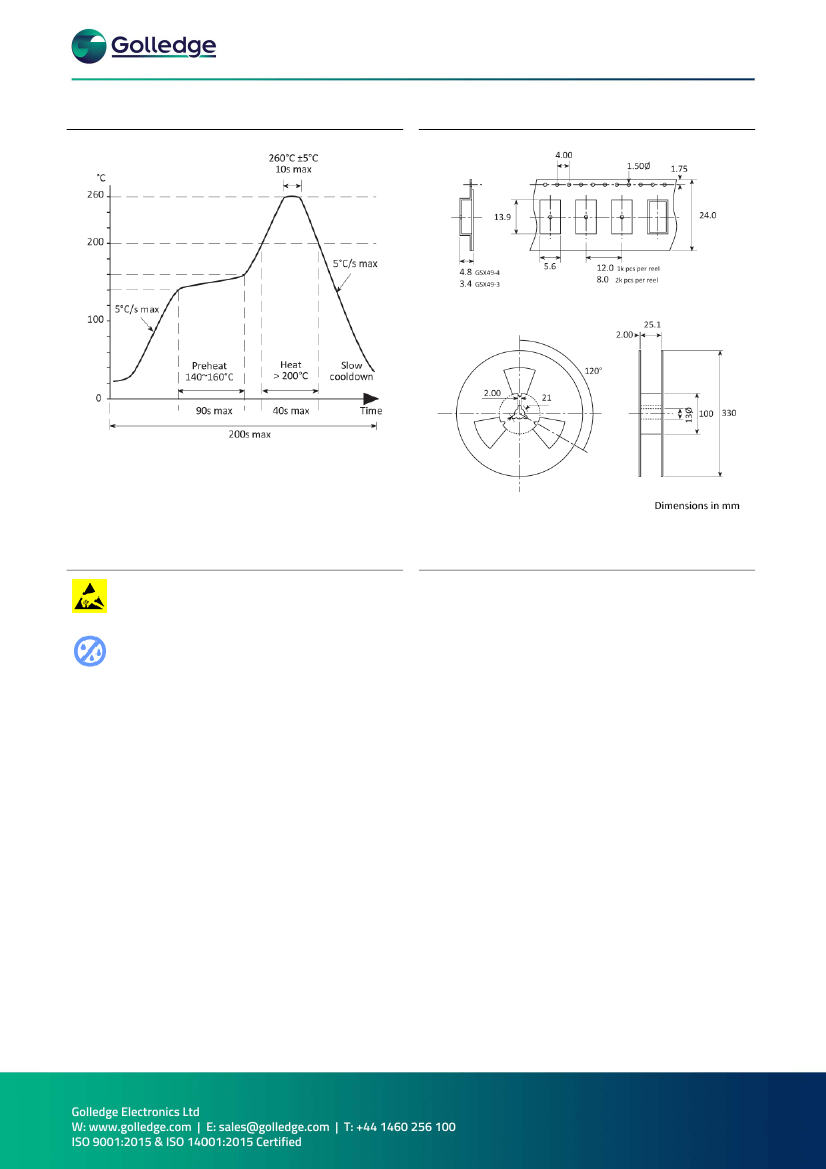

SOLDERING PROFILE
TAPE & REEL SPECIFICATION
HANDLING & STORAGE
Human Body Model (HBM) 1A (250V to <500V)
Moisture Sensitivity Level (MSL): 1 (or not applicable)
CONSTRUCTION
Metal package, hermetic seal Insulating base, formed leads
v1.0
GSX49-3
4/5
MATERIAL COMPOSITION
Lead-free (< 0.1% by weight )
RoHS compliant with no exemptions.
declaration
REACH compliant.
See our statement
See our declaration
See our
MATERIAL COMPOSITION DATASHEET
Material Composition Datasheet for Golledge GSX49-
3.pdf
Free of conflict minerals.
Free of Halogens.
See our declaration
See our
Free of Ozone-depleting substances.
declaration
Nominal Net Mass: 450mg
v1.0
