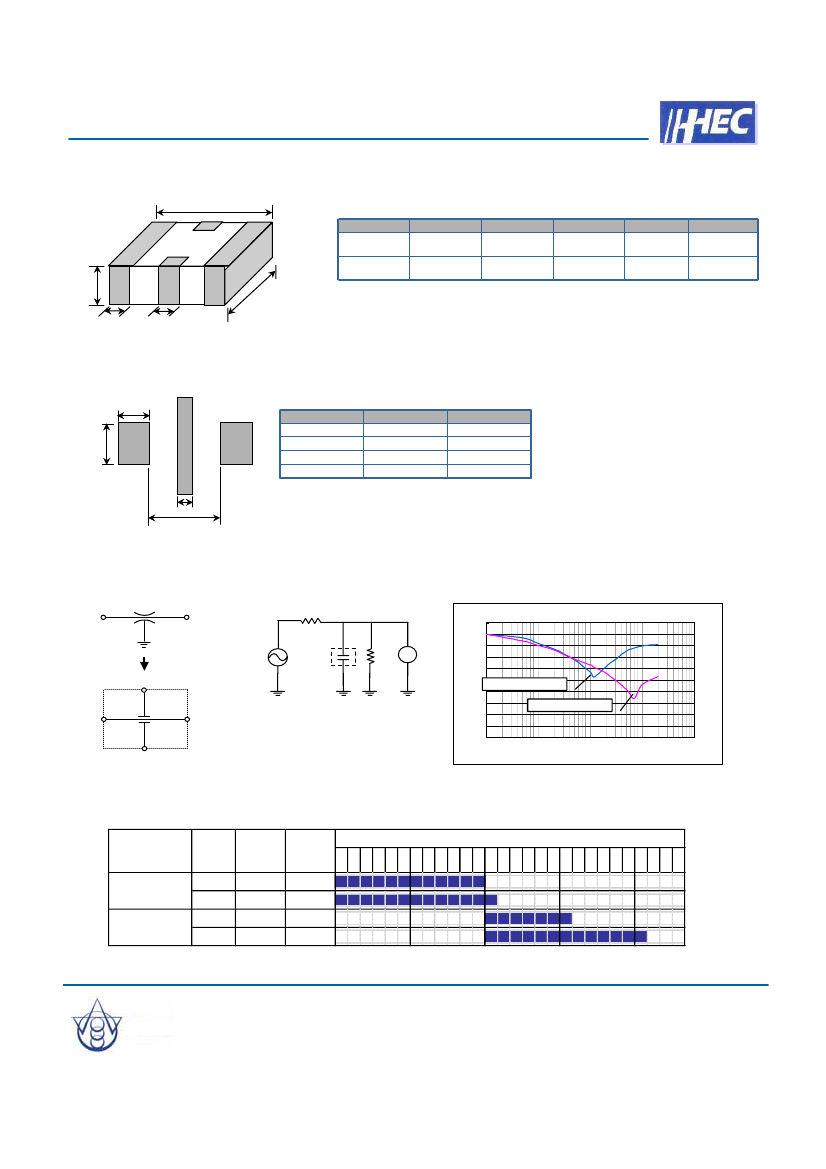

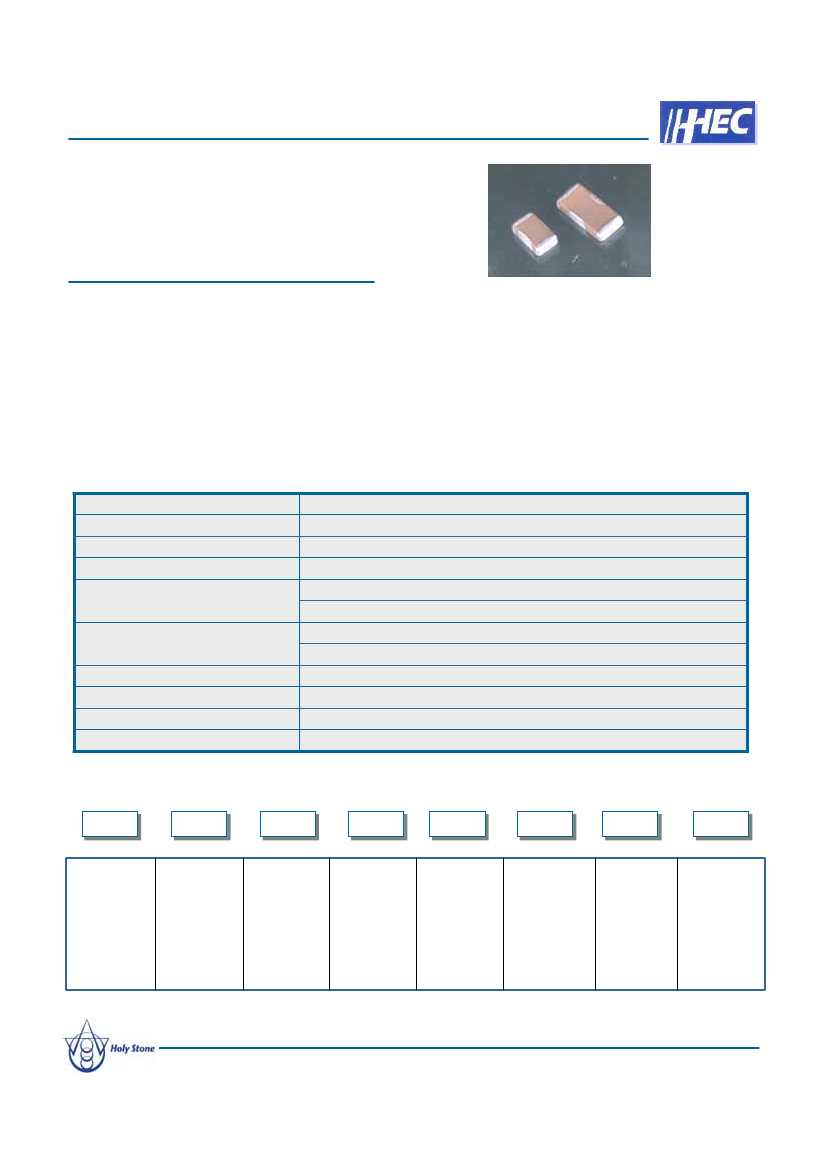

FTC Series- Feed Thru’ Filters
Holy Stone
Multilayer Ceramic Chip Capacitors
[Feed Thru’ EMI Filters]
FTC
Series
The TFC series is three terminal structure
component. This product are capability of
carried currents up to 2A, are suitable for use
on DC power lines. Its can prevent in noise
suppression from high speed signal lines and
IC’s.
Features
Suitable power line for ripple voltage stabilization
Ultra low inductance
Supply in MEC function
Application
For high speed digital integration circuit and
decoupling of CPU power lines.
Summary of Specification
Operation Temperature
Rated Voltage
Current Rating
Size
Temperature Coefficient
Capacitance Range
Tolerance
DC Resistance
Insulation Resistance
Dielectric Strength
-55 to +125℃
50Vdc
2A
0805 and 1206
C0G <
±
30ppm/℃ , -55~+125
℃
(EIA Class
Ι
)
X7R <
±
15%, , -55~+125
℃
(EIA Class
ΙΙ
)
NPO : 22pF ~1.0nF
X7R : 1.0nF ~100nF
±
20%
600mΩ max.
10GΩ or 500/C whichever is smaller
250% Rated Voltage for 5 second @ 50mA max. current
How To Order
FTC
FTC
Product
Code
FTC:
Feed Thru’
EMI Filter
1206
1206
Chip Size
X
X
Dielectric
332
332
Capacitance
Unit : pF
Ex.:
100:10×10
0
471:47×10
1
182:18×10
2
M
M
Tolerance
Ex.:
M:+/-20%
050
050
Class
Ex.:
050: 50VDC
T
T
Packaging
T: Taping
&Reel
B: Bulk
20
20
Special
Requirement
Ex.:
10: 1A
20: 2A
Ex.:
Ex.:
0805 :
N: NPO
2.0×1.25 mm X: X7R
1206 :
3.2×1.6 mm
FTC Series- Feed Thru’ Filters
Holy Stone
Dimension
L
TYPE
0805
1206
L
2.00
±0.2
[.079±.008
]
3.20±0.02
[.126±.008]
W
1.25±0.2
[.049±.008]
T (max)
1.00
[.039]
Unit : mm [inches]
B W(min)
BW1
0.20
0.50±0.2
[.008]
[.020±.008]
[.037
±.012]
1.60±0.2
[.063±.008]
1.25
[.049]
0.20
[.008]
0.95±0.3
T
BW
BW1
W
Recommend Solder Lands
b
a
Unit : mm
1206
1.2~1.3
TYPE
a
b
c
d
0805
0.9~1.0
0.9~1.0
0.4~0.5
1.5
0.9~1.0
0.8~0.9
1.5
c
d
Characteristic
Equivalent Circuit
I/P
O/P
Test Circuit
50 ohm
Performance
-10
0
10
20
30
40
50
60
70
80
90
50 ohm
GND
I/P
GND
O/P
Attenuation (dB)
MLC 0805X222
FTC 0805X222
1
10
100
Frequency (MHz)
1000
10000
Capacitance Range
100
150
220
330
470
680
101
151
221
331
471
681
102
152
222
332
472
682
103
153
223
333
473
563
104
154
224
334
Dielectric
Characteristic
NPO
X7R
Size
0805
1206
0805
1206
Rated Rated
Voltage Current
50V
2A
50V
2A
50V
2A
50V
2A
Capacitance Range
Other dimensions,capacitance values and voltages rating are available. Please contact HEC.
