4779832540400 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 4779832540400

4779832540400: DescriptionBoard Connector, 40 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug,; CategoryThe connector The connector; File Size32KB，1 Pages; ManufacturerStelvio Kontek SpA

Download Datasheet Parametric View All

4779832540400 Overview

Board Connector, 40 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug,

4779832540400 Parametric

Parameter Name	Attribute value
Maker	Stelvio Kontek SpA
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.071 inch
subject depth	0.173 inch
body length	2.016 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	477
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	40
Base Number Matches	1

Preview

Download Datasheet

View All

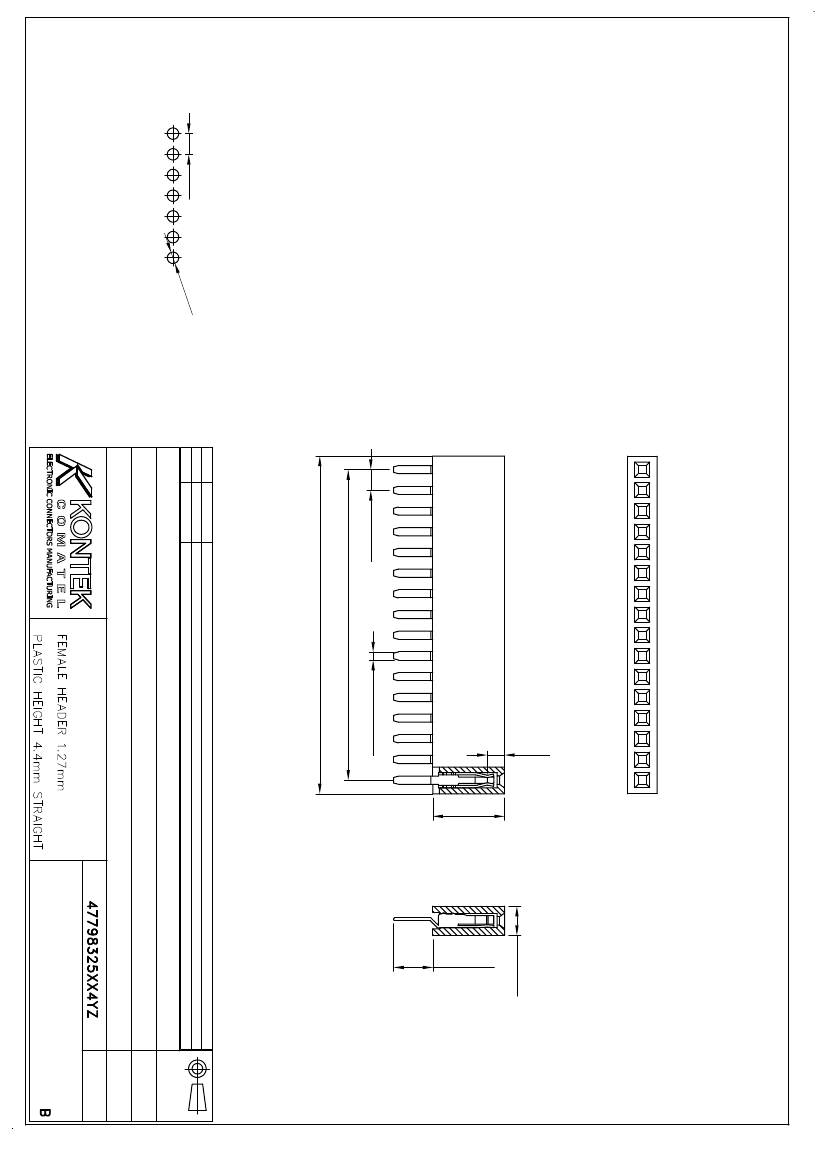

QUESTO DISEGNO E' DI PROPRIETA' DELLA KONTEK COMATEL S.p.a. E NON PUO' ESSERE USATO,

E/O CEDUTO A TERZI SENZA IL PERMESSO SCRITTO DELLA KONTEK COMATEL S.p.a.

THIS DRAWING IS THE PROPERTY OF KONTEK COMATEL S.p.a. AND IT CAN NOT BE USED, REPRODUCED

AND OR LOANED TO THIRD PARTIES WITHOUT THE WRITTEN PERMISSION OF KONTEK COMATEL S.p.a.

1.06

1.80±0.15

4.40±0.15

1.27±0.10

(N -1) x1.27 ±0.20

(N -1) x1.27 +0.40 ±0.30

PIN 0.40X0.15

1.27

Ø0.7

INDEX

07-06-06

17-11-05

DATE

Changed dimension pin

Changed dimension plastic heigth (from 4.30 to 4.40mm) / Changed dimension plastic width (from 2.20 to 1.80mm) / Updating

MODIFICATION

2.40±0.25

UNIT:mm

Insulator: L. C. P.

Pin: copper alloy

Material_____________________________________________________________________________________________________________

general tolerance

.X 0.20mm

.XX 0.15mm

Date

Y= 0: GOLD PLATED 0.25µm

Y= 1: GOLD FLASH

Y= 4: TIN PLATED Y= 6: SELECTIVE GOLD FLASH

Y= 7: SELECTIVE GOLD 0.25µm

22-10-04

Platings_____________________________________________________________________________________________________________ _____________

Recommended PCB Layout

(PCB TOLERANCE ±0.05)

Design

XX= N: Number of contacts (02÷50)

Pandiscia M.

Protection____________________________________________________________________________________________________________ _____________

Contr.

Chiappini R.

Denomination___________________________________ Cod.________________________________ _____________

______________________________________________

File: 47798325XX4YZ

______________________________________________

MOD. M640

Dis. Nr._______________I_I_I_I_I_I_I
